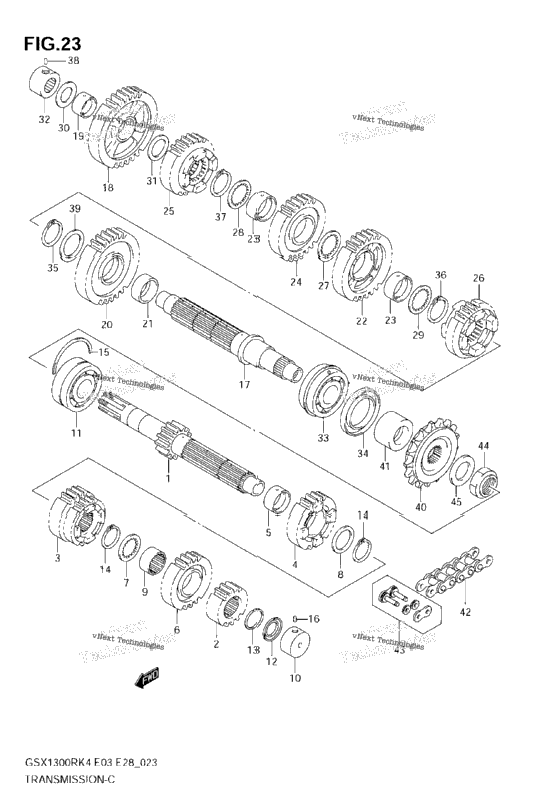

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 24120-24F00 | SHAFT, COUNTER (NT:13) | 1 |
| 1 | 24221-24F00 | GEAR, 2ND DRIVE (NT:16) | 1 |
| 1 | 24231-24F10 | GEAR, 3RD & 4TH DRIVE NT:19/21 %F.NO.103498 | 1 |
| 1 | 24231-24F40 | GEAR, 3RD & 4TH DRIVE NT:19/21 F.NO.103499% | 1 |
| 1 | 24251-24F00 | GEAR, 5TH DRIVE (NT:22) | 1 |
| 1 | 24252-24F10 | BUSH, 5TH DRIVE | 1 |
| 1 | 24261-24F00 | GEAR, 6TH DRIVE (NT:23) | 1 |
| 1 | 09167-27003 | WASHER, 6TH DRIVE | 1 |
| 1 | 09181-27014 | WASHER, 5TH DRIVE | 1 |
| 1 | 24262-24F10 | BUSH, 4TH DRIVE | 1 |
| 1 | 09263-20085 | BEARING, CENTER SHAFT LH | 1 |
| 1 | 09267-25012 | BEARING, CENTER SHAFT RH | 1 |
| 1 | 09285-20006 | SEAL, OIL 20X31.2X2.7 | 1 |
| 1 | 09380-27004 | CIRCLIP, 2ND DRIVE | 1 |
| 2 | 09380-27006 | CIRCLIP, 5TH & 6TH DRIVE | 2 |
| 1 | 09390-62012 | C RING, CNTR SHAFT BRG RH | 1 |
| 1 | 04221-07209 | PIN, CNTR SHAFT BRG LH | 1 |
| 1 | 24131-24F10 | SHAFT, DRIVE | 1 |
| 1 | 24311-24F00 | GEAR, 1ST DRIVEN (NT:34) | 1 |
| 1 | 24312-24F10 | BUSH, 1ST DRIVEN | 1 |
| 1 | 24321-24F00 | GEAR, 2ND DRIVEN (NT:31) | 1 |
| 1 | 24322-24F10 | BUSH, 2ND DRIVEN | 1 |
| 1 | 24331-24F00 | GEAR, 3RD DRIVEN (NT:29) | 1 |
| 2 | 24332-24F10 | BUSH, 3RD & 4TH DRIVEN | 2 |
| 24341-24F00 | GEAR, 4TH DRIVEN (NT:27) %F.NO.103498 | ||
| 1 | 24341-24F10 | GEAR, 4TH DRIVEN (NT:27) F.NO.103499% | 1 |
| 1 | 24351-24F10 | GEAR, 5TH DRIVEN (NT:25) | 1 |
| 1 | 24361-24F10 | GEAR, 6TH DRIVEN (NT:24) | 1 |
| 1 | 09167-30008 | WASHER, 3RD DRIVEN GEAR LH | 1 |
| 1 | 09167-30008 | WASHER, 4TH DRIVEN GEAR RH | 1 |
| 1 | 09167-30008 | WASHER, 3RD & 4TH DRIVEN | 1 |
| 1 | 09181-20251 | WASHER, 1ST DRIVEN RH 20X34X1 | 1 |
| 1 | 09181-24005 | WASHER, 1ST DRIVEN LH | 1 |
| 1 | 09263-20040 | BEARING, DRIVE SHAFT RH 20X34X20 | 1 |
| 1 | 09267-30011 | BEARING, DRIVE SHAFT LH 30X62X23.8 | 1 |
| 1 | 09283-42017 | SEAL, DRIVE SHAFT 38X52X8 | 1 |
| 1 | 09380-30009 | CIRCLIP, 2ND DRIVEN | 1 |
| 1 | 09380-30009 | CIRCLIP, 3RD DRIVEN | 1 |
| 1 | 09380-30009 | CIRCLIP, 4TH DRIVEN | 1 |
| 1 | 04221-07209 | PIN, DRIVE SHAFT BRG RH | 1 |
| 1 | 08211-30405 | WASHER, 2ND DRIVEN GEAR RH 30X40X2,5 | 1 |
| 1 | 27510-21A31 | SPROCKET, ENGINE (NT:17) | 1 |
| 1 | 27531-24F00 | SPACER, SPROCKET | 1 |
| 27600-24F00-112 | CHAIN ASSY (RKGB50GSVZ3,112LE) | ||
| 1 | 27620-24F00 | JOINT SET, DRIVE OPT | 1 |
| 1 | 09159-20004 | NUT | 1 |
| 1 | 09181-25268 | WASHER (25X40X1.5) | 1 |
