Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

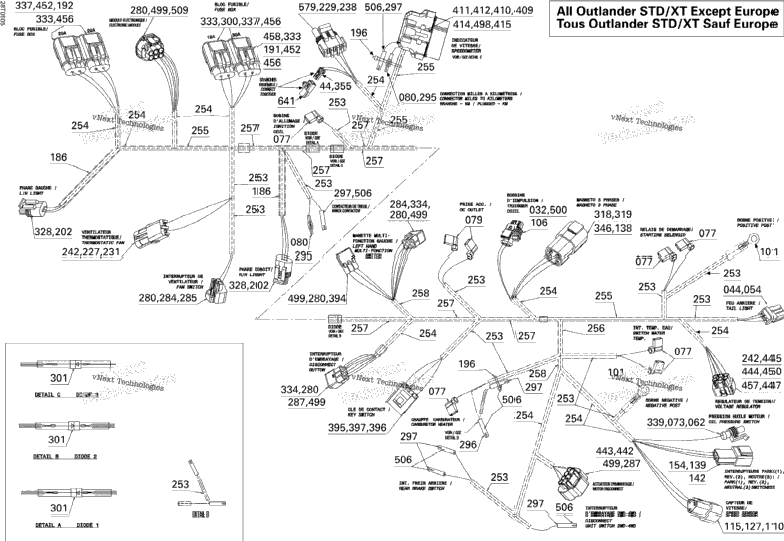

| 710000713 | Main Harness Ass'y Includes 1 To 641 (Except Europe) | ||
| 8 | 278000998 | Female Terminal | 8 |
| 1 | 515175231 | Female Terminal | 1 |
| 1 | 515175495 | Female Housing, 3 Circuits | 1 |
| 1 | 278001014 | Female Terminal | 1 |
| 1 | 278001013 | Wire Seal | 1 |
| 6 | 409010300 | Female Terminal | 6 |
| 2 | 710000038 | Female Terminal | 2 |
| 2 | 278000230 | Male Terminal | 2 |
| 1 | 278001392 | Open Barrel Terminal | 1 |
| 1 | 278001005 | Male Housing, 2 Circuits | 1 |
| 3 | 278000631 | Male Terminal | 3 |
| 1 | 409207000 | Male Housing, 3 Circuits | 1 |
| 1 | 409207600 | Male Lock, 3 Circuits | 1 |
| 1 | 293000052 | Sealing Cap | 1 |
| 11 | 409014800 | MALE TERMINAL | 11 |
| 1 | 710000044 | MALE HOUSING, 3 CIRCUITS | 1 |
| 1 | 710000043 | MALE LOCK, 3 CIRCUITS | 1 |
| 1 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long | 1 |
| 1 | 410917200 | Fuse, 30 Amperes | 1 |
| 1 | 409003900 | Fuse, 20 Amperes | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 2 | 278001114 | Female Terminal | 2 |
| 1 | 278000736 | Male Connector, 6 Circuits | 1 |
| 8 | 409004300 | Male Terminal | 8 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 7 | 278000218 | Wire Seal | 7 |
| 1 | 219704425 | Tubing 6 Mm 3000Mm Long | 1 |
| 1 | 219704399 | Was 409901700 Tubing (9 mm) | 1 |
| 1 | 219704400 | Was 409901800 Tubing (13 mm) | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 1 | 219704398 | Was 409901600 Tubing 19mm | 1 |
| 8 | 409012100 | Female Terminal | 8 |
| 20 | 409012300 | Seal | 20 |
| 1 | 710000078 | HOUSING-TAB | 1 |
| 2 | 710000080 | Cap | 2 |
| 3 | 278001009 | Female Terminal | 3 |
| 3 | 278000770 | Insulated Sheath | 3 |
| 2 | 278001007 | Insulated Sheath | 2 |
| 2 | 278000343 | Fuse, 15 Amperes | 2 |
| XXXX | Not Available As Spare Part - Diode | ||
| 1 | 278001477 | FEMALE HOUSING, 4 CIRCUITS | 1 |
| 1 | 515175568 | Male Terminal | 1 |
| 2 | 278001467 | MALE TERMINAL HOUSING, 3 CIRCUITS | 2 |
| 4 | 278001325 | Fuse Holder | 4 |
| 2 | 710000081 | Female Housing, 6 Circuits | 2 |
| 710000115 | Rubber Envelope Terminal | ||
| 8 | 710000113 | Female Terminal | 8 |
| 1 | 710000114 | FEMALE TERMINAL | 1 |
| 1 | 278001012 | Male Housing, 1 Circuit | 1 |
| 1 | 278001478 | MALE WEDGE, 4 CIRCUITS | 1 |
| 1 | 515175658 | Female Housing, 2 Circuits | 1 |
| 710000275 | Female Terminal Housing, 3 Circuits | ||
| 3 | 710000274 | Female Terminal | 3 |
| 1 | 710000272 | Female Terminal Housing, 4 Circuits | 1 |
| 1 | 710000273 | Lock, 4 Circuits | 1 |
| 12 | 515175812 | Plug | 12 |
| 1 | 409204600 | FEMALE TERMINAL HOUSING, 24 CIRCUITS | 1 |
| 1 | 515175802 | Retainer Block | 1 |
| 1 | 515175803 | Wire Seal | 1 |
| 1 | 515175805 | LOCK | 1 |
| 3 | 515175806 | Female Terminal | 3 |
| 1 | 409009500 | FEMALE TERMINAL | 1 |
| 1 | 710000336 | MALE TERMINAL HOUSING, 6 CIRCUITS | 1 |
| 5 | 710000337 | JOINT SEAL | 5 |
| 1 | 710000339 | SECONDARY LOCK | 1 |
| 1 | 710000343 | CAP | 1 |
| 2 | 710000342 | HOUSING COVER | 2 |
| 4 | 278000805 | Cushion | 4 |
| 3 | 710000356 | FEMALE TERMINAL | 3 |
| 1 | 710000357 | Female Terminal | 1 |
| 1 | 710000399 | Female Housing | 1 |
| 4 | 710000402 | Wire Seal | 4 |
| 3 | 710000403 | WIRE SEAL | 3 |
| 7 | 710000421 | Female Terminal | 7 |
| 710000474 | Female Terminal Housing, 6 Circuits | ||
| 1 | 710000667 | Male Housing, 2 Circuits | 1 |
