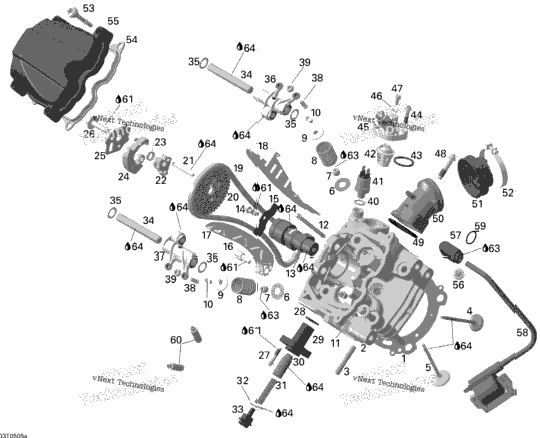

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420265358 | IGNITION COIL ASS'Y Includes 57 to 58 | 1 |
| 1 | 420265240 | Spark Plug Connector | 1 |
| XXXX | Not Available As Spare Part - Ignition Coil | ||
| XXXX | Not Available As Spare Part - Cable Clamp | ||
| 4 | 420254370 | Valve Guide | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 413711400 | Loctite 648, 10 ml | 1 |
| 1 | 293550030 | Grease, Super Lube | 1 |
| 293600039 | ENGINE OIL 4 STROKES, 5W40, 12 X 1 LITER | ||
| 1 | 420630195 | Cylinder Head Gasket 400HO | 1 |
| 1 | 420630850 | Cylinder Head Gasket 330HO | 1 |
| 1 | 420613526 | Cylinder Head Ass'y Includes 2 to 3 | 1 |
| XXXX | Not Available As Spare Part - Cylinder Head | ||
| 1 | 420941013 | Stud M8 X 26 | 1 |
| 2 | 420254350 | Intake Valve 31 mm | 2 |
| 2 | 420254360 | Exhaust Valve 27 mm | 2 |
| 4 | 420627770 | Thrust Washer | 4 |
| 4 | 420230515 | Valve Stem Seal | 4 |
| 4 | 420239295 | Valve Spring | 4 |
| 4 | 420254132 | Valve Spring Retainer | 4 |
| 8 | 420254120 | Cotter Valve | 8 |
| 4 | 420641550 | Torx Screw M10 X 140 | 4 |
| 2 | 420440342 | Torx Flange Screw M6 X 85 | 2 |
| 1 | 420620010 | Camshaft | 1 |
| 1 | 420440162 | Torx Flange Screw M6 X 16 | 1 |
| 1 | 420627740 | Holding Strip | 1 |
| 1 | 420240942 | Bearing Screw M6 | 1 |
| 1 | 420236570 | Chain Tension Guide | 1 |
| 1 | 420236580 | Chain Guide | 1 |
| 1 | 420297060 | Silent Chain | 1 |
| 1 | 420254432 | Camshaft Sprocket, 42 Teeth | 1 |
| 1 | 420620120 | Deko Shaft 400HO | 1 |
| 1 | 420231080 | Spacer 400HO | 1 |
| 1 | 420238270 | Deko Torsion Spring 400HO | 1 |
| 1 | 420231070 | Centrifugal Weight 400HO | 1 |
| 1 | 420231090 | Deko Washer 400HO | 1 |
| 1 | 420641820 | Hex. Collar Screw M8 X 32 400HO | 1 |
| 1 | 420241721 | Hex. Collar Screw M8 X 20 330HO | 1 |
| 2 | 420240031 | Hex. Screw M6 X 25 | 2 |
| 1 | 420430370 | O-Ring | 1 |
| 1 | 420236510 | Chain Tensioner Housing | 1 |
| 1 | 420236520 | Chain Tensioner Plunger | 1 |
| 1 | 420238120 | Spring | 1 |
| 1 | 420250890 | O-Ring | 1 |
| 1 | 420641150 | Plug Screw | 1 |
| 2 | 420229711 | Pin #12, Small, M6 X 90 | 2 |
| 4 | 420944382 | Shim | 4 |
| 1 | 420254405 | Rocker Arm Inlet | 1 |
| 1 | 420254415 | Rocker Arm Exhaust | 1 |
| 4 | 420241335 | Adjustment Screw M6 X 0.75 | 4 |
| 420242910 | Hex. Nut M6 | ||
| 1 | 420250640 | Copper Washer | 1 |
| 420897938 | Temperature Switch | ||
| 1 | 420222493 | Thermostat 65° With Gasket Includes 42 to 43 | 1 |
| XXXX | Not Available As Spare Part - Thermostat 65° | ||
| 1 | 420650300 | Thermostat Gasket | 1 |
| 2 | 420440232 | Torx Screw M6 X 25 | 2 |
| 1 | 420222690 | Thermostat Cover | 1 |
| 1 | 420650250 | Gasket Ring | 1 |
| 1 | 420941950 | Screw M5.5 X 13 | 1 |
| 2 | 420440482 | ALLEN SCREW M8 X 40 | 2 |
| 1 | 420630640 | Gasket | 1 |
| 1 | 420267386 | Intake Flange Ass'y | 1 |
| 1 | 420267340 | Intake Neck | 1 |
| 1 | 420251480 | Clamp | 1 |
| 4 | 420440307 | Hex. Distance Screw M6 X 30.5 | 4 |
| 1 | 420630260 | Gasket | 1 |
| 1 | 420610390 | Valve Cover | 1 |
| 1 | 707000246 | Spark Plug NGK DCPR8E | 1 |
