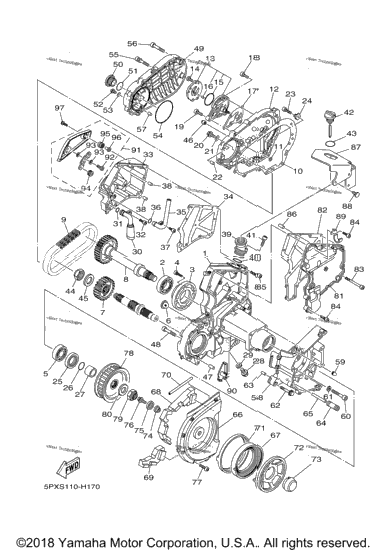

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 90430-06016-00 | Gasket | 1 |
| 1 | 93210-92448-00 | .O-Ring | 1 |
| 5 | 90110-06312-00 | Bolt, Hexagon Socket Head | 5 |
| 2 | 91314-08055-00 | Bolt, Hexagon Socket Head | 2 |
| 1 | 5PX-17613-00-00 | Stay | 1 |
| 1 | 5PX-17654-00-00 | Spacer 1 | 1 |
| 91317-10050-00 | Bolt | ||
| 5 | 92907-10600-00 | Washer, Plate | 5 |
| 3 | 95824-10050-00 | Bolt, Flange | 3 |
| 99480-10018-00 | Pin | ||
| 2 | 4WM-17653-00-00 | Slider | 2 |
| 2 | 93606-76259-00 | Pin, Dowel | 2 |
| 1 | 5PX-17076-10-00 | Cover | 1 |
| 1 | 5PX-17655-00-00 | Damper, Slider | 1 |
| 1 | 5PX-1542B-00-00 | Damper 2 | 1 |
| 1 | 5PX-1542C-00-00 | Damper 3 | 1 |
| 1 | 5PX-15491-00-00 | Protector | 1 |
| 1 | 5PX-15449-00-00 | Ring, Rubber | 1 |
| 5PX-17665-10-00 | Plate 1 | ||
| 5PX-17675-10-00 | Plate 2 | ||
| 1 | 4H7-15486-00-00 | Grommet | 1 |
| 1 | 90209-06096-00 | Washer | 1 |
| 1 | 95817-06012-00 | Bolt, Flange | 1 |
| 6 | 91314-06030-00 | Bolt, Hexagon Socket Head | 6 |
| 1 | 5PX-17651-00-00 | Pulley, Belt | 1 |
| 1 | 5PX-17538-00-00 | Cap, Housing | 1 |
| 5PX-17933-02-00 | Gasket, 4 | ||
| 7 | 91317-06085-00 | Bolt | 7 |
| 9 | 91317-06025-00 | Bolt, Hex. Socket Head | 9 |
| 3 | 91317-06045-00 | Bolt | 3 |
| 5PX-1763A-00-00 | Plate, Cap | ||
| 3 | 90269-07005-00 | Rivet | 3 |
| 90465-08038-00 | Clamp | ||
| 1 | 5PX-17446-00-00 | Plate | 1 |
| 5PX-17471-00-00 | Plate, Cover | ||
| 2 | 90154-06008-00 | . .Screw, Binding | 2 |
| 4 | 90201-05015-00 | . Washer, Plate | 4 |
| 2 | 90480-13007-00 | . .Grommet | 2 |
| 90480-13006-00 | . .Grommet | ||
| 1 | 90387-07007-00 | . .Collar | 1 |
| 1 | 90110-06202-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 5PX-17541-00-00 | Case, Transfer 1 | 1 |
| 1 | 93306-00907-00 | Bearing | 1 |
| 1 | 5PX-17521-10-00 | Housing, Bearing | 1 |
| 4 | 90110-06039-00 | Bolt, Hexagon Socket Head | 4 |
| 1 | 93306-20627-00 | Bearing | 1 |
| 1 | 4WM-13286-00-00 | Cleaner | 1 |
| 1 | 4WM-17682-00-00 | Sprocket, Chain Drive | 1 |
| 5PX-1755A-10-00 | Middle Driven Shaft Assy | ||
| 1 | 4WM-16139-00-00 | Chain, Primary | 1 |
| 1 | 5PX-17929-00-00 | Gasket 1 | 1 |
| 1 | 4WM-17931-00-00 | Gasket 2 | 1 |
| 1 | 5PX-17542-00-00 | Case, Transfer 2 | 1 |
| 1 | 5PX-13100-00-00 | Oil Pump Assy | 1 |
| 2 | 91312-06014-00 | . Bolt, Hexagon Socket Head | 2 |
| 1 | 93210-48214-00 | . O-Ring | 1 |
| 2 | 93603-07073-00 | . Pin, Dowel | 2 |
| 1 | 4WM-13116-00-00 | Gasket, Pump Case | 1 |
| 3 | 90110-06138-00 | Bolt | 3 |
| 2 | 90110-06039-00 | Bolt, Hexagon Socket Head | 2 |
| 1 | 95814-08016-00 | Bolt, Flange | 1 |
| 1 | 90201-08087-00 | .Washer, Plate | 1 |
| 2 | 99510-10114-00 | Pin, Dowel | 2 |
| 6 | 91314-06025-00 | Bolt, Hexagon Socket Head | 6 |
| 1 | 5PX-17691-00-00 | Plate 3 | 1 |
| 1 | 93102-40330-00 | Oil Seal | 1 |
| 1 | 93210-27672-00 | O-Ring | 1 |
| 1 | 90387-3003P-00 | Collar | 1 |
| 1 | 90340-14132-00 | .Plug, Straight Screw | 1 |
| 1 | 214-11198-01-00 | .Gasket | 1 |
| 1 | 5PX-13421-00-00 | Strainer 2 | 1 |
| 1 | 93210-14003-00 | O-Ring | 1 |
| 1 | 91317-06012-00 | Bolt, Hex. Socket Head | 1 |
| 1 | 5PX-17631-00-00 | Cap | 1 |
| 5PX-17932-02-00 | Gasket, 3 | ||
| 1 | 5PX-13582-00-00 | Pipe | 1 |
| 1 | 5PX-13132-00-00 | Joint | 1 |
| 1 | 93210-35512-00 | O-Ring | 1 |
| 1 | 90110-06039-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 5PX-15362-00-00 | Plug, Oil Level | 1 |
| 1 | 90179-22006-00 | Nut | 1 |
| 1 | 90208-22002-00 | Washer, Conical Spring | 1 |
| 1 | 90179-08004-00 | Nut | 1 |
| 4 | 91314-08050-00 | .Bolt, Hexagon Socket Head | 4 |
| 1 | 5PX-15779-00-00 | Cover | 1 |
| 1 | 90340-32002-00 | Plug, Straight Screw | 1 |
| 1 | 93210-32172-00 | O-Ring | 1 |
| 1 | 92014-06010-00 | Bolt, Button Head | 1 |
