Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

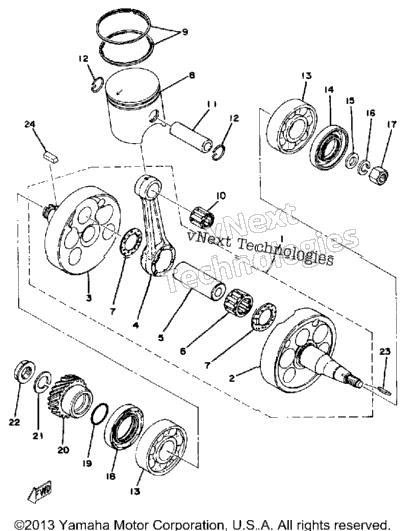

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1M1-11400-01-00 | Crankshaft Assembly 250 | ||
| 1M2-11400-00-00 | Crankshaft Assembly 400 | ||
| 1M2-11412-01-00 | Crank 1 400 | ||
| 1M1-11412-01-00 | Crank 1 250 | ||
| 1M1-11422-00-00 | Crank 2 250 | ||
| 1M2-11422-01-00 | Crank 2 400 | ||
| 498-11651-00-00 | . Rod, Connecting | ||
| 1 | 2X4-11681-00-00 | . Pin, Crank 1 | 1 |
| 1 | 93310-425N4-00 | . Bearing, Cylindrical | 1 |
| 2 | 90209-25085-00 | . Washer, (90209-25220) | 2 |
| 1M1-11631-01-96 | Piston Std (69.96Mm Std) 250 | ||
| 1M1-11636-01-00 | Piston 2 O/S 0.50 (70.50Mm 2Nd ALTERNATE PART 250 | ||
| 1M1-11635-01-00 | Piston 1 O/S 0.25 (70.25Mm 1St ALTERNATE PART 250 | ||
| 1M1-11637-01-00 | Piston 3 O/S 0.75 (70.75Mm 3Rd ALTERNATE PART 250 | ||
| 1M2-11631-01-96 | Piston Std (84.96Mm Std) 400 | ||
| 1M2-11636-01-00 | Piston 2 O/S 0.50 (85.50Mm 2Nd 400 | ||
| 1M2-11638-01-00 | Piston 4 O/S 1.00 (86.00Mm 4Th 400 | ||
| 1M2-11637-01-00 | Piston 3 O/S 0.75 (85.75Mm 3Rd 400 | ||
| 1M2-11635-01-00 | Piston 1 O/S 0.25 (85.25Mm 1St 400 | ||
| 1M1-11638-01-00 | Piston 4 O/S 1.00 (4Th O.S.) ALTERNATE PART 250 | ||
| 1M1-11638-01-00 | Piston 4 O/S 1.00 (4Th O.S.) 250 | ||
| 1M1-11610-00-00 | Piston Ringset Std (Std) 250 | ||
| 1M1-11610-20-00 | Piston Ringset 2Nd (2Nd O.S.) 250 | ||
| 1M1-11610-40-00 | Piston Ringset 4Th (4Th O.S.) 250 | ||
| 1M2-11610-11-00 | Piston Ringset 1St (1St O.S.) ALTERNATE PART | ||
| 1M1-11630-01-00 | Piston Kit Std 250 | ||
| 1M2-11630-40-00 | Piston Kit 4Th 400 | ||
| 1M2-11630-30-00 | Piston Kit 3Rd 400 | ||
| 1M2-11630-20-00 | Piston Kit 2Nd 400 | ||
| 1M2-11630-10-00 | Piston Kit 1St 400 | ||
| 1M2-11630-00-00 | Piston Kit Std 400 | ||
| 1M2-11610-41-00 | Piston Ringset 4Th (4Th O.S.) ALTERNATE PART | ||
| 1M2-11610-31-00 | Piston Ringset 3Rd (3Rd O.S.) ALTERNATE PART | ||
| 1M2-11610-21-00 | Piston Ringset 2Nd (2Nd O.S.) ALTERNATE PART | ||
| 1M1-11630-31-00 | Piston Kit 3Rd 250 | ||
| 1M1-11630-21-00 | Piston Kit 2Nd 250 | ||
| 1M1-11630-11-00 | Piston Kit 1St 250 | ||
| 1M2-11610-01-00 | Piston Ringset Std (Std) 400 | ||
| 1M1-11610-30-00 | Piston Ringset 3Rd (3Rd O.S.) 250 | ||
| 1M1-11610-10-00 | Piston Ringset 1St (1St O.S.) ALTERNATE PART 250 | ||
| 1 | 93310-218A6-00 | Bearing | 1 |
| 1 | 275-11633-00-00 | Pin, Piston | 1 |
| 1 | 214-11633-00-00 | Pin, Piston | 1 |
| 2 | 93450-20026-00 | Circlip | 2 |
| 2 | 93306-30615-00 | Bearing | 2 |
| 2 | 93306-20622-00 | Bearing | 2 |
| 1 | 93103-30150-00 | Oil Seal (38W) | 1 |
| 1 | 90201-12593-00 | Washer, Plate | 1 |
| 92901-12100-00 | Washer, Spring | ||
| 1 | 90170-12347-00 | Nut, Hexagon | 1 |
| 1 | 93103-40091-00 | Oil Seal | 1 |
| 1 | 93210-29282-00 | O-Ring | 1 |
| 1M1-16111-00-00 | Gear, Pri Drive | ||
| 1 | 92901-18100-00 | Washer, Spring | 1 |
| 90179-18172-00 | Nut | ||
| 1 | 90280-16053-00 | Key, Woodruff | 1 |
| 1 | 90282-07019-00 | Key, Straight | 1 |
| 1 | 5X5-11650-00-00 | Connecting Rod Assemblyassy | 1 |
