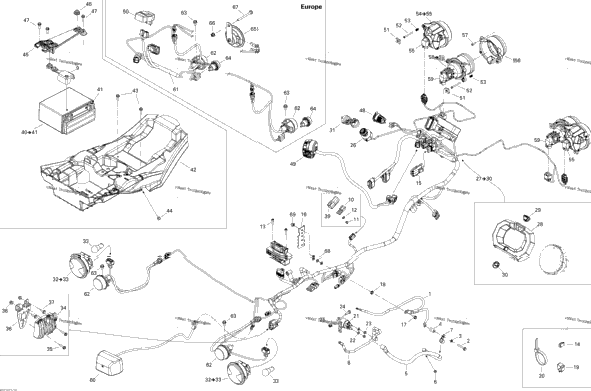

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710001747 | Ground Cable Ass'y | 1 |
| 1 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip | 1 |
| 1 | 234161601 | Lock Washer Helical M6 | 1 |
| 1 | 517203200 | Spacer | 1 |
| 1 | 710001750 | POSITIVE CABLE | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 518321570 | Open Clamp | 1 |
| 1 | 710001749 | Positive Cable | 1 |
| 1 | 710002569 | Cap | 1 |
| 1 | 270000141 | Clip | 1 |
| 1 | 390402300 | Pop Rivet 3/16" | 1 |
| 1 | 391301600 | Washer | 1 |
| 2 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip | 2 |
| 1 | 710000992 | Clip | 1 |
| 1 | 710000917 | Connector Ass'y | 1 |
| 1 | 710002567 | BRACKET | 1 |
| 1 | 210261680 | Hex. Flange Screw M6 X 16 | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 414227300 | Clip | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 293750041 | Tie-rap 627 mm | 1 |
| 1 | 710001364 | Starter Relay | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 2 | 232561414 | Elastic Stop Nut M6 | 2 |
| 1 | 207662084 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 710002327 | Ignition Switch | 1 |
| 1 | 710002696 | Speedometer Ass'y Includes 27 to 30 | 1 |
| 1 | 710002092 | Trim Ring | 1 |
| 1 | 710001473 | Button | 1 |
| 1 | 704901270 | BRP Logo 13 mm | 1 |
| 2 | 710000817 | Black, Electronic Key Europe | 2 |
| 1 | 710000817 | Black, Electronic Key Except Europe | 1 |
| 1 | 710002183 | Grey, Electronic Key | 1 |
| 2 | 710001645 | Tail Light Ass'y Includes 32 to 33 | 2 |
| 1 | 520000758 | Bulb | 1 |
| 1 | 710001103 | Voltage Regulator STD Except Europe | 1 |
| 1 | 710001191 | Voltage Regulator XT Except Europe | 1 |
| 1 | 710001191 | Voltage Regulator Europe | 1 |
| 2 | 210262580 | Hex. Flange Forming Screw M6 X 25 | 2 |
| 1 | 710001752 | Rectifier Support | 1 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 278002148 | Diagnostic Connector Cap | 1 |
| 1 | 410301203 | Battery YUASA YTX20L Includes 40 to 41 | 1 |
| 1 | 295500849 | Battery Fastener Kit | 1 |
| 1 | 710002892 | BATTERY SUPPORT | 1 |
| 2 | 210262080 | Hex. Forming Screw M6 X 20 | 2 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 1 | 710002404 | Fixation Plate | 1 |
| 1 | 705003666 | Rubber Grommet | 1 |
| 3 | 207662084 | Hex. Flange Screw M6 X 20 | 3 |
| 1 | 710001248 | DC Outlet | 1 |
| 1 | 710002963 | Multi-Function Handle Europe | 1 |
| 1 | 710002883 | Multi-fonction Handle XT Except Europe | 1 |
| 1 | 710002884 | Multi-Fonction Handle STD Except Europe | 1 |
| 1 | 710002393 | Flasher Unit Europe | 1 |
| 12 | 572106600 | Handle | 12 |
| 12 | 241044540 | Hexagonal Screw K40 X 45 | 12 |
| 12 | 517168600 | Spring | 12 |
| 2 | 710002191 | Low Beam Includes 54 to 55 | 2 |
| 1 | 715900141 | Bulb 12V 55W | 1 |
| 1 | 710002291 | RH High Front Housing | 1 |
| 1 | 710002292 | LH High Front Housing | 1 |
| 6 | 250000084 | Phillips Screw K40 X 16 | 6 |
| 2 | 710002525 | High Beam Ass'y Includes 58 to 59 | 2 |
| 1 | 415129249 | Halogen Bulb | 1 |
| 1 | 710002721 | Licence Light Europe | 1 |
| 710002481 | Harness Ass'y Europe | ||
| 4 | 710002047 | Flasher Europe | 4 |
| 4 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip Europe | 4 |
| 2 | 710001726 | Day Light Europe | 2 |
| 1 | 710000983 | Horn Europe | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 Europe | 1 |
| 1 | 207667044 | Hex. Flange Screw M6 X 70 Europe | 1 |
| 3 | 234062410 | Flat Washer 6 mm | 3 |
| 1 | 232361493 | Domed Nut M6 | 1 |
