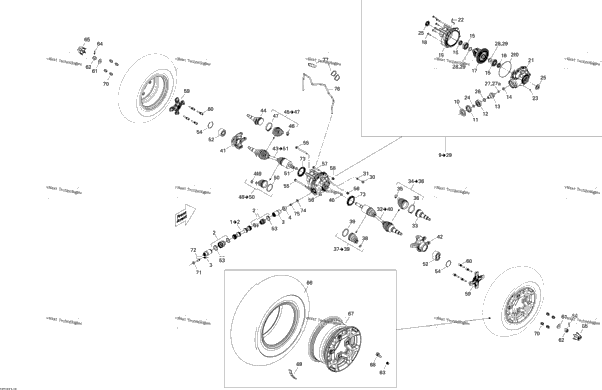

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705400913 | Propeller Shaft Includes 1 to 2 | 1 |
| 703500794 | Rubber Boot Kit | ||
| 2 | 703500678 | Front Bushing Shaft Kit | 2 |
| 1 | 705400036 | Wear Ring | 1 |
| 1 | 705401093 | Rubber Boot | 1 |
| 1 | 293650199 | Oetiker Gear Clamp | 1 |
| 705400772 | Front Differential Ass'y STD, Includes 9 to 29 | ||
| 705401077 | Front Differential Ass'y XT, Includes 9 to 29 | ||
| 1 | 705400027 | Oil Seal | 1 |
| 1 | 705400661 | Nut | 1 |
| 1 | 705500260 | Ball Bearing | 1 |
| 705501588 | 10 TEETH PINION | ||
| 1 | 705500261 | Needle Bearing | 1 |
| 2 | 705500259 | Ball Bearing | 2 |
| 2 | 293350044 | Ball Bearing | 2 |
| 1 | 705400645 | Differential STD | 1 |
| 705400822 | DIFFERENTIAL XT | ||
| 6 | 705500892 | SCREW | 6 |
| 1 | 705400762 | FRONT COVER | 1 |
| 1 | 705500265 | Seal | 1 |
| 1 | 705400761 | FRONT COVER | 1 |
| 1 | 705500893 | VENT VALVE | 1 |
| 1 | 705500894 | Drain Plug | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 2 | 705500255 | Oil Seal | 2 |
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 705500075 | Pinion Gear Shim .022" | ||
| 1 | 705501162 | Pinion Gear Shim | 1 |
| 1 | 703500288 | Differential Shim Spool Kit | 1 |
| 1 | 703500050 | Differential Shim Spool Kit | 1 |
| 1 | 250400041 | Screw Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 1 | 705400757 | RH Homocinetic Joint Includes 32 to 40 | 1 |
| 705500560 | CV Joint | ||
| 1 | 705400511 | Wheel Boot Kit Includes 34 to 36 | 1 |
| 1 | 293650192 | OETIKER CLAMP 23MM | 1 |
| 1 | 293650194 | OETIKER CLAMP 70MM | 1 |
| 1 | 705400512 | Differential Boot Kit Includes 37 to 39 | 1 |
| 1 | 293650193 | OETIKER CLAMP 67MM | 1 |
| 1 | 705400042 | CIRCLIP | 1 |
| 1 | 705401178 | LH KNUCKLE | 1 |
| 705401179 | RH KNUCKLE | ||
| 1 | 705400756 | LH Homocinetic Joint Includes 43 to 51 | 1 |
| 1 | 705400511 | Wheel Boot Kit Includes 45 to 47 | 1 |
| 1 | 705400512 | Differential Boot Kit Includes 48 to 50 | 1 |
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 293650138 | Oetiker Gear Clamp 44.0MM | 2 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201416 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 207685544 | Hex. Flange Screw M8 X 55 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 2 | 705501264 | Wheel Hub | 2 |
| 8 | 250300048 | Wheel Stud Tightening Torque: See Bulletin ATV 2020-4 | 8 |
| 2 | 250200049 | Spring Washer | 2 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 293000110 | Valve Cap | 2 |
| 2 | 250400036 | Cotter Pin | 2 |
| 2 | 705400928 | Wheel Cap | 2 |
| 2 | 705400382 | Front Tire STD | 2 |
| 2 | 705400431 | Front Tire XT International | 2 |
| 2 | 705400431 | Front Tire XT North America | 2 |
| 2 | 705400610 | Front Tire XT Europe | 2 |
| 2 | 705401078 | Black Front Rim XT | 2 |
| 2 | 705401088 | Silver Front Rim STD | 2 |
| 2 | 705401127 | Deep Black, 12 Inch Rim X 6 XT CAMO | 2 |
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 1 | 219704465 | 1/2 Oz Weight | 1 |
| 8 | 250100042 | Steel Wheel Nut STD | 8 |
| 8 | 250100100 | Black Wheel Nut M10 X 1.25 XT | 8 |
| 1 | 250200102 | Flat Washer M12 | 1 |
| 1 | 250000540 | Hex Flange Screw M12 X 20 | 1 |
| 2 | 705400780 | Wear Sleeve | 2 |
| 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP | ||
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 3 | 414115200 | Tie-Rap 180 mm | 3 |
