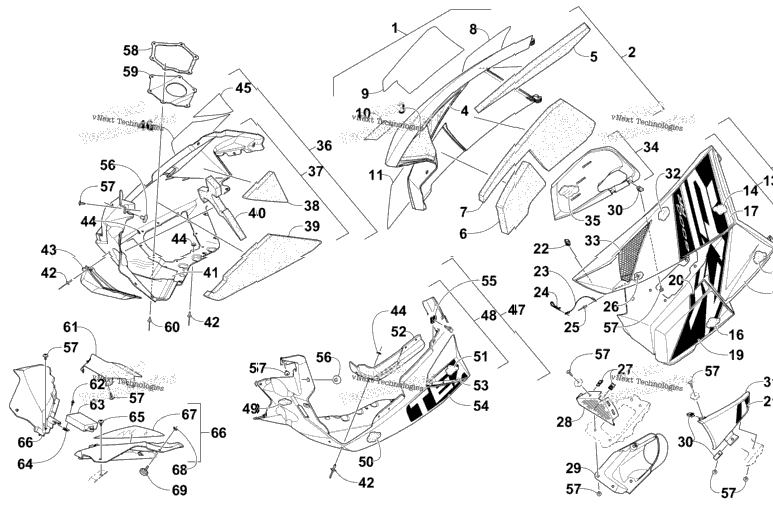

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4718-794 | Panel, Side w/Decals - Right - Team Arctic Green (inc. 2-11,23-26) | ||
| 1 | 3718-858 | Panel, Side - w/o Decals - Right - Green (inc. 3-7,23-26) | 1 |
| 1 | 0617-626 | Foam, Side Panel - Upper Front - Right | 1 |
| 1 | 6606-414 | Foil, Protective | 1 |
| 1 | 0617-628 | Foam, Side Panel - Upper Rear - Right | 1 |
| 1 | 0617-632 | Foam, Side Panel - Lower Front - Right | 1 |
| 1 | 0617-634 | Foam, Side Panel - Lower Rear - Right | 1 |
| 1 | 2621-360 | Decal, Side Panel - Upper - Right | 1 |
| 1 | 2621-364 | Decal, Side Panel - Lower Rear - Right | 1 |
| 1 | 2621-344 | Decal, Side Panel - Center - Right | 1 |
| 1 | 2621-340 | Decal, Side Panel - Lower Front - Right | 1 |
| 4718-795 | Panel, Side w/Decals - Left - Team Arctic Green (inc. 13-20, 22-26) | ||
| 1 | 4718-577 | Panel, Side - w/o Decals - Left - Green (inc. 14-16,22-26) | 1 |
| 1 | 0617-629 | Foam, Side Panel - Upper Rear - Left | 1 |
| 1 | 0617-635 | Foam, Side Panel - Lower Rear - Left | 1 |
| 1 | 0617-681 | Foam, Side Panel - Lower Front - Left | 1 |
| 2621-361 | Decal, Side Panel - Upper - Left | ||
| 2621-365 | Decal, Side Panel - Lower Rear - Left | ||
| 1 | 2621-341 | Decal, Side Panel - Lower Front - Left | 1 |
| 2621-345 | Decal, Side Panel - Center - Left | ||
| 1 | 2621-347 | Decal, Side Panel - Mid Vent - Left | 1 |
| 1 | 1623-637 | Clip, U-Nut | 1 |
| 2 | 0607-447 | Cable | 2 |
| 2 | 0605-283 | Clip, Hairpin | 2 |
| 2 | 8060-486 | Rivet | 2 |
| 2 | 8050-127 | Washer | 2 |
| 2 | 1623-052 | Clip, U-Nut | 2 |
| 1 | 6606-925 | Screen, Intake | 1 |
| 1 | 2602-794 | Duct, Intake - Inner | 1 |
| 4 | 1623-030 | Clip, U-Nut | 4 |
| 1 | 2602-801 | Duct, Intake - Outer - Green | 1 |
| 1 | 0619-206 | Foil, Protective Optional | 1 |
| 1 | 5706-531 | Screen, Intake Optional | 1 |
| 1 | 1702-369 | Duct, Belt Cooling (inc. 35) | 1 |
| 1 | 6606-694 | Foil, Protective | 1 |
| 1 | 4718-816 | Plate, Skid w/Decals - Right - Green (inc. 37-46) | 1 |
| 1 | 3718-422 | Plate, Skid - w/o Decals - Right - Black (inc. 38-44) | 1 |
| 1 | 0617-640 | Foam, Skid Plate - Upper Rear - Right | 1 |
| 1 | 0617-638 | Foam, Skid Plate - Center Front - Right | 1 |
| 1 | 0617-636 | Foam, Skid Plate - Upper Front - Right | 1 |
| 1 | 2612-850 | Foil, Protective | 1 |
| 1 | 8061-708 | Rivet | 1 |
| 1 | 2612-754 | Deflector, Heat | 1 |
| 19 | 0123-802 | Washer | 19 |
| 2621-336 | Decal, Skid Plate - Rear - Right | ||
| 1 | 2621-338 | Decal, Skid Plate - Forward - Right | 1 |
| 1 | 4718-801 | Plate, Skid - w/Decals - Left - Black (inc. 42,44,48-54) | 1 |
| 1 | 3718-789 | Plate, Skid - Left w/Foam - Black (inc. 42,44,49-52) | 1 |
| 1 | 0617-637 | Foam, Skid Plate - Upper Front - Left | 1 |
| 1 | 0617-639 | Foam, Skid Plate - Center Front - Left | 1 |
| 1 | 0617-641 | Foam, Skid Plate - Upper Rear - Left | 1 |
| 1 | 6606-613 | Panel, Reinforcement | 1 |
| 2621-337 | Decal, Skid Plate - Rear - Left | ||
| 1 | 2621-339 | Decal, Skid Plate - Forward - Left | 1 |
| 2 | 2623-005 | Clip, Retaining | 2 |
| 2 | 6606-592 | Pin, Retaining | 2 |
| 1623-129 | Screw, Self-Tapping | ||
| 1 | 2612-796 | Plate, Exhaust Outlet | 1 |
| 1 | 2612-795 | Seal, Exhaust Outlet | 1 |
| 6 | 8061-710 | Rivet | 6 |
| 1 | 6606-295 | Shield, Heat - EMC | 1 |
| 2 | 8408-620 | Screw, Cap | 2 |
| 1 | 0730-243 | ECM - Triangle | 1 |
| 2 | 0423-031 | Clip, U-Nut | 2 |
| 2 | 0623-784 | Screw, Self-Tapping | 2 |
| 1 | 6606-342 | Fascia, Front - Right - Black | 1 |
| 1 | 3718-303 | Fascia, Front - Left - Black (inc. 67) | 1 |
| 6606-405 | Foil, Protective | ||
| 1 | 2623-001 | RETAINER,PUSHNUT - 3/16" STUD Optional | 1 |
| 1 | 1623-999 | Screw, Thumb Optional | 1 |
