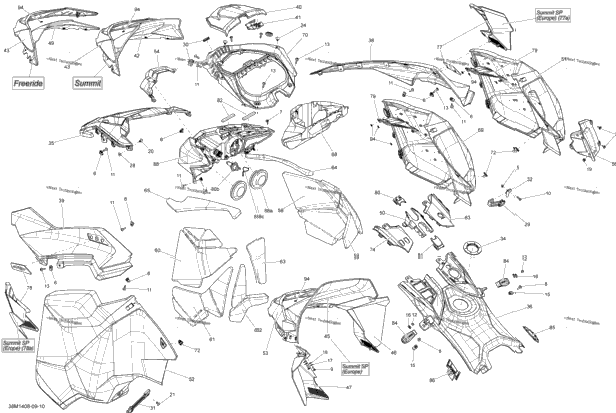

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 233251414 | Hex. Flange Elastic Nut M5 | 1 |
| 12 | 250000079 | Panel Nut M5 X 0.8 | 12 |
| 1 | 250000113 | Screw M4 X 16, Type K-40 | 1 |
| 2 | 250000128 | Torx Truss Screw M6 X 20 | 2 |
| 4 | 250000146 | Truss Head Torx Screw K50 X 16 | 4 |
| 1 | 250000465 | Torx Screw M5 X 20 | 1 |
| 1 | 250000528 | Torx Screw M5 X 20 | 1 |
| 2 | 250000565 | Hexalob Screw M4 X 10 | 2 |
| 4 | 250000587 | Torx Screw M5 X 26 | 4 |
| 2 | 250100035 | Jack Nut M5 | 2 |
| 2 | 250100113 | Panel Nut, M6 X 1.0 | 2 |
| 2 | 250100156 | Weld Nut M4 | 2 |
| 4 | 250200024 | Rubber Washer 5 mm | 4 |
| 4 | 250200025 | Washer M5 | 4 |
| 3 | 275500241 | Black, Cap | 3 |
| 8 | 293150104 | Pop Rivet 3/16" | 8 |
| 1 | 293150108 | Pop Rivet 3/16” | 1 |
| 2 | 414644300 | Black, Dart | 2 |
| 8 | 517124300 | Washer | 8 |
| 1 | 517303612 | RH Panel Latch | 1 |
| 3 | 517303756 | Grommet | 3 |
| 1 | 517303808 | LH Panel Latch | 1 |
| 1 | 517304221 | Latch Support | 1 |
| 1 | 517304518 | Console Nut | 1 |
| 1 | 517304796 | Deep Black, Center Hood | 1 |
| 1 | 517305181 | Deep Black Rear Console | 1 |
| 1 | 517305239 | Deep Black, RH Hood | 1 |
| 1 | 517305229 | Orange - RH Hood | 1 |
| 1 | 517305240 | Deep Black, LH Hood | 1 |
| 1 | 517305230 | Orange Crush - LH Hood | 1 |
| 1 | 517304912 | Deep Black, Upper Storage Access Cover | 1 |
| 1 | 517304917 | Cover Latch | 1 |
| 1 | 517304921 | Windshield 235mm | 1 |
| 1 | 517304922 | Deep Black, Windshield Support - Short | 1 |
| 1 | 517305007 | Windshield Support Europe 600HO ETEC | 1 |
| 1 | 517304927 | Windshield 345mm Europe 600HO ETEC | 1 |
| 1 | 517304921 | Windshield 235mm Europe 800R ETEC | 1 |
| 1 | 517304928 | RH Air Deflector, Black 63% Transm. Europe | 1 |
| 1 | 517304929 | LH Air Deflector, Black 63% Transm. Europe | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 517304970 | Deep Black, Console Support | 1 |
| 1 | 517305508 | Deep Black - RH Panel Manual Starter | 1 |
| 1 | 517305510 | Deep Black LH Panel | 1 |
| 1 | 517305007 | Windshield Support Europe | 1 |
| 1 | 517305010 | Headlight Trim Cap | 1 |
| 1 | 517305060 | Deep Black RH Console | 1 |
| 1 | 517305082 | RH Upper Panel Foam | 1 |
| 1 | 517305085 | RH Rear Panel Foam | 1 |
| 1 | 517305086 | LH Upper Panel Foam | 1 |
| 1 | 517305087 | LH CENTER PANEL FOAM | 1 |
| 1 | 517305088 | LH Lower Panel Foam | 1 |
| 1 | 517305089 | LH REAR PANEL FOAM | 1 |
| 1 | 517305090 | RH Rear Hood Foam | 1 |
| 1 | 517305091 | LH Rear Hood Foam | 1 |
| 1 | 517305095 | Deep Black, Trunk | 1 |
| 1 | 517305507 | Deep Black - RH Panel Electric Starter | 1 |
| 1 | 517305512 | Deep Black, Indicator Support | 1 |
| 2 | 517305504 | Pin | 2 |
| 1 | 517305128 | Deep Black, LH Front Console | 1 |
| 1 | 517305137 | RH Hood Filler Plate, SKI-DOO | 1 |
| 1 | 517305138 | LH HOOD FILLER PLATE | 1 |
| 1 | 517305140 | RH Panel Vent Grid Deep Black | 1 |
| 1 | 517305147 | Deep Black, Support Console Cap | 1 |
| 1 | 517305148 | Deep Black, Support Console Cap | 1 |
| 2 | 517305157 | Seal Joint | 2 |
| 1 | 517305222 | DEEP BLACK RH FRONT CONSOLE | 1 |
| 2 | 517305279 | Panel Latch | 2 |
| 1 | 517305493 | RH Clip | 1 |
| 1 | 517305494 | LH Clip | 1 |
| 1 | 517305497 | Headlamp | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 2 | 517302841 | Grommet Europe | 2 |
| 2 | 219400070 | Cap | 2 |
| 2 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) | 2 |
| 2 | 219800282 | Holder Bracket | 2 |
