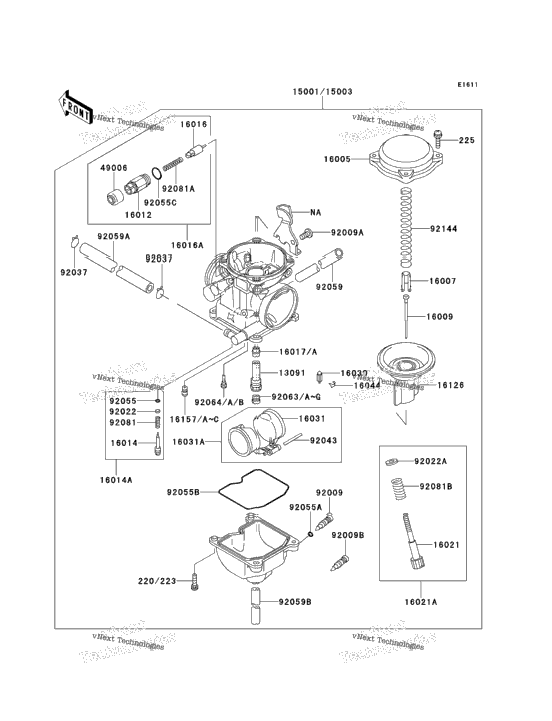

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 13091-1259 | HOLDER,NEEDLE JET | ||
| 15001-1413 | CARBURETOR-ASSY [US] | ||
| 15003-1372 | CARBURETOR-ASSY [CA] | ||
| 1 | 16005-1057 | TOP-CHAMBER,MIXING | 1 |
| 1 | 16007-1134 | SEAT-SPRING,VALVE | 1 |
| 16009-1333 | NEEDLE-JET,N54C | ||
| 1 | 16012-1055 | CAP-STARTER PLUNGER [US] | 1 |
| 1 | 16014-1029 | SCREW,PILOT ADJUST [US] | 1 |
| 1 | 16014-1080 | SCREW-PILOT AIR [CA] | 1 |
| 1 | 16016-1065 | PLUNGER,STARTER [US] | 1 |
| 1 | 16016-1101 | PLUNGER [CA] | 1 |
| 1 | 16017-1319 | JET-NEEDLE [US] | 1 |
| 1 | 16017-1393 | JET-NEEDLE,#6 [CA] | 1 |
| 1 | 16021-1109 | SCREW-THROTTLE STOP [US] | 1 |
| 1 | 16021-1201 | SCREW-THROTTLE STOP [CA] | 1 |
| 1 | 16030-1007 | VALVE-FLOAT | 1 |
| 1 | 16031-1056 | FLOAT [US] | 1 |
| 1 | 16031-1077 | FLOAT [CA] | 1 |
| 1 | 16044-007 | CLAMP,FLOAT VALVE | 1 |
| 1 | 16126-1180 | VALVE,VACUUM | 1 |
| 1 | 16157-1056 | JET-STARTER,#55 | 1 |
| 1 | 16157-1057 | JET-STARTER,#58 (OPTION) | 1 |
| 16157-1058 | JET-STARTER,#60 [US] | ||
| 16157-1058 | JET-STARTER,#60 [CA] (OPTION) | ||
| 1 | 49006-1165 | BOOT,STARTER PLUNGER [US] | 1 |
| 1 | 92009-1095 | SCREW,DRAIN,M6X1.0 [US] | 1 |
| 1 | 92009-1365 | SCREW,5X10 | 1 |
| 1 | 92009-1551 | SCREW,DRAIN,6X0.75 | 1 |
| 1 | 92022-1003 | WASHER,PLAIN [US] | 1 |
| 1 | 92022-1587 | WASHER,THROTTLE STOP [US] | 1 |
| 2 | 92037-1531 | CLAMP,TUBE | 2 |
| 1 | 92043-1207 | PIN,FLOAT [US] | 1 |
| 1 | 92055-1002 | RING-O,PILOT ADJUST [US] | 1 |
| 1 | 92055-1053 | RING-O [US] | 1 |
| 1 | 92055-1222 | RING-O,FLOAT CHAMBER | 1 |
| 1 | 92055-1416 | RING-O,STARTER PLUNGE [US] | 1 |
| 1 | 92059-1465 | TUBE,6.5X9.5X500 | 1 |
| 92059-1751 | TUBE,6.5X11.5X360 | ||
| 1 | 92059-1752 | TUBE,3.5X6.5X300 | 1 |
| 1 | 92063-1013 | JET-MAIN,#140 [CA] | 1 |
| 1 | 92063-1014 | JET-MAIN,#135 (OPTION) | 1 |
| 1 | 92063-1015 | JET-MAIN,#138 (OPTION) | 1 |
| 1 | 92063-1016 | MAIN JET,#142 [CA] (OPTION) | 1 |
| 1 | 92063-1017 | MAIN JET,#145 [CA] (OPTION) | 1 |
| 1 | 92063-1074 | JET-MAIN,2ND,#128 [US] (OPTION) | 1 |
| 1 | 92063-1075 | JET-MAIN,#130 [US] (OPTION) | 1 |
| 1 | 92063-1076 | JET-MAIN,#132 [US] | 1 |
| 1 | 92064-1050 | JET-PILOT,#38 (OPTION) | 1 |
| 4 | 220D0414 | SCREW-PAN-CROS [CA] | 4 |
| 4 | 223C0416 | SCREW-PAN-WS-CROS [US] | 4 |
| 4 | 225C0418 | SCREW-PAN-WSP-CROS | 4 |
| 1 | 92064-1101 | JET-PILOT,#35 | 1 |
| 1 | 92064-1117 | JET-PILOT,#32 (OPTION) | 1 |
| 1 | 92081-1002 | SPRING,PILOT ADJUST SCREW [US] | 1 |
| 1 | 92081-1720 | SPRING,PLUNGER [US] | 1 |
| 1 | 92081-1721 | SPRING,THROTTLE STOP [US] | 1 |
| 1 | 92144-1066 | SPRING,VACUUM VALVE | 1 |
