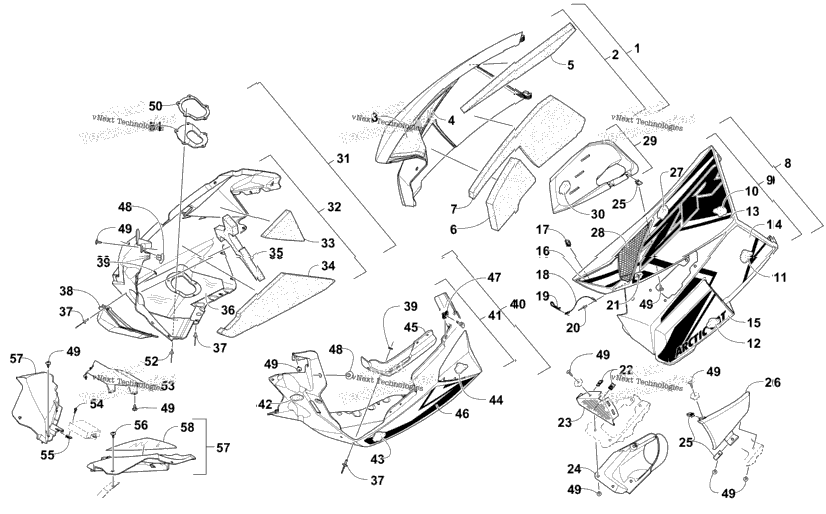

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4718-762 | Panel, Side - w/Decals - Right - Green (inc. 2-7, 13-16, and 18-21) | ||
| 1 | 3718-180 | Panel, Side - Right w/Foam - Black (inc. 3-7 and 18-21) | 1 |
| 1 | 0617-626 | Foam, Side Panel - Upper Front - Right | 1 |
| 1 | 6606-414 | Foil, Protective | 1 |
| 1 | 0617-628 | Foam, Side Panel - Upper Rear - Right | 1 |
| 1 | 0617-632 | Foam, Side Panel - Lower Front - Right | 1 |
| 1 | 0617-634 | Foam, Side Panel - Lower Rear - Right | 1 |
| 4718-763 | Panel, Side - w/Decals - Left - Green (inc. 9-21) | ||
| 1 | 4718-553 | Panel, Side w/Foam- Left - Black (inc. 10-12, and 17-21) | 1 |
| 1 | 0617-629 | Foam, Side Panel - Upper Rear - Left | 1 |
| 1 | 0617-635 | Foam, Side Panel - Lower Rear - Left | 1 |
| 1 | 0617-681 | Foam, Side Panel - Lower Front - Left | 1 |
| 1 | 2621-574 | Decal, Side Panel - Upper - Right | 1 |
| 1 | 2621-575 | Decal, Side Panel - Upper - Left - Green | 1 |
| 1 | 2621-572 | Decal, Side Panel - Lower Rear - Right - Green | 1 |
| 1 | 2621-573 | Decal, Side Panel - Lower Rear - Left - Green | 1 |
| 1 | 2621-580 | Decal, Side Panel - Lower Front - Right - Green | 1 |
| 1 | 2621-581 | Decal, Side Panel - Lower Front - Left - Green | 1 |
| 1 | 2621-578 | Decal, Side Panel - Upper - Front - Right - Green | 1 |
| 2621-579 | Decal, Side Panel - Upper - Front - Left - Green | ||
| 1 | 1623-637 | Clip, U-Nut | 1 |
| 2 | 0607-447 | Cable | 2 |
| 2 | 0605-283 | Clip, Hairpin | 2 |
| 2 | 8060-486 | Rivet | 2 |
| 2 | 8050-127 | Washer | 2 |
| 2 | 1623-052 | Clip, U-Nut | 2 |
| 1 | 6606-925 | Screen, Intake | 1 |
| 1 | 2602-794 | Duct, Intake - Inner | 1 |
| 2 | 1623-030 | Clip, U-Nut | 2 |
| 1 | 2602-793 | Duct, Intake - Outer - Black | 1 |
| 1 | 0619-206 | Foil, Protective Optional | 1 |
| 1 | 5706-531 | Screen, Intake Optional | 1 |
| 1 | 1702-369 | Duct, Belt Cooling (Inc. 30) | 1 |
| 1 | 6606-694 | Foil, Protective | 1 |
| 1 | 4718-824 | Plate, Skid - w/Decals - Right - Green (inc. 32-39, and 46) | 1 |
| 1 | 3718-422 | Plate, Skid - w/o Decals - Right - Black (inc. 33-39) | 1 |
| 1 | 0617-640 | Foam, Skid Plate - Upper Rear - Right | 1 |
| 1 | 0617-638 | Foam, Skid Plate - Center Front - Right | 1 |
| 1 | 0617-636 | Foam, Skid Plate - Upper Front - Right | 1 |
| 1 | 2612-850 | Foil, Protective | 1 |
| 1 | 8061-708 | Rivet | 1 |
| 1 | 2612-754 | Deflector, Heat | 1 |
| 3 | 0123-802 | Washer | 3 |
| 1 | 4718-803 | Plate, Skid - w/Decals - Left - Green (inc. 37, 39, and 41-46) | 1 |
| 1 | 3718-789 | Plate, Skid - Left w/Foam - Black (inc. 37, 39, and 42-45) | 1 |
| 1 | 0617-637 | Foam, Skid Plate - Upper Front - Left | 1 |
| 1 | 0617-639 | Foam, Skid Plate - Center Front - Left | 1 |
| 1 | 0617-641 | Foam, Skid Plate - Upper Rear - Left | 1 |
| 1 | 6606-613 | Panel, Reinforcement | 1 |
| 1 | 2621-582 | Decal, Skid Plate - Lower Front - Right - Green | 1 |
| 1 | 2621-583 | Decal, Skid Plate - Lower Front - Left - Green | 1 |
| 2 | 2623-005 | Clip, Retaining | 2 |
| 2 | 6606-592 | Pin, Retaining | 2 |
| 1623-129 | Screw, Self-Tapping | ||
| 1 | 2612-796 | Plate, Exhaust Outlet | 1 |
| 1 | 2612-795 | Seal, Exhaust Outlet | 1 |
| 6 | 8061-710 | Rivet | 6 |
| 1 | 6606-295 | Shield, Heat - EMC | 1 |
| 2 | 8408-620 | Screw, Cap | 2 |
| 2 | 0423-031 | Clip, U-Nut | 2 |
| 2 | 0623-784 | Screw, Self-Tapping | 2 |
| 1 | 6606-342 | Fascia, Front - Right - Black | 1 |
| 1 | 3718-303 | Fascia, Front - Left - Black (inc. 58) | 1 |
| 6606-405 | Foil, Protective |
