Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

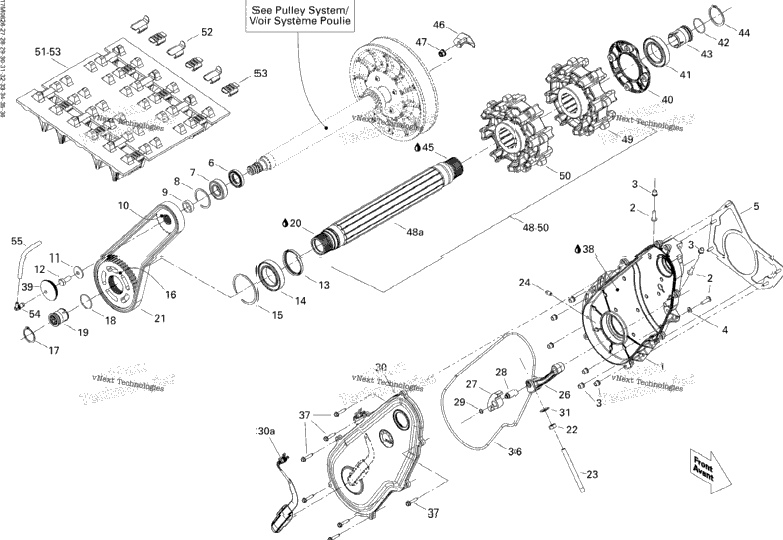

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 8 | 233261434 | Flange Elastic Nut M6 | 8 |
| 504152684 | Chain Case | ||
| 3 | 207662034 | Hex. Flange Screw M6 X 20 | 3 |
| 1 | 234061410 | Flat Washer 6 mm | 1 |
| 1 | 518325816 | Plate | 1 |
| 1 | 415049300 | Oil Seal | 1 |
| 1 | 293350055 | Ball Bearing | 1 |
| 1 | 504152576 | Circlip | 1 |
| 1 | 504152628 | Shim | 1 |
| 1 | 504091100 | Sprocket 22 Teeth Large 600 HO SDI | 1 |
| 1 | 504096200 | Sprocket, 21 Teeth 600 HO SDI with Track 1.75 | 1 |
| 1 | 504152607 | Spring Washer | 1 |
| 1 | 207102544 | Hex. Screw M10 X 25 | 1 |
| 1 | 504152571 | Seal | 1 |
| 1 | 504152573 | Ball Bearing | 1 |
| 1 | 504152582 | Circlip | 1 |
| 1 | 504152593 | Sprocket, 45 Teeth | 1 |
| 1 | 504152572 | Circlip | 1 |
| 1 | 293300122 | O-Ring | 1 |
| 1 | 504152619 | Magnetic Cap | 1 |
| 219700417 | SYNTHETIC GREASE, 400 G | ||
| 1 | 504152579 | Drive Chain, 102 Links 600 HO SDI with Track 1.75 | 1 |
| 1 | 504152629 | Drive Chain, 104 Links All Other Models | 1 |
| 1 | 232006414 | Hex. Nut M10 X 1.5 | 1 |
| 1 | 504152602 | Adjustment Screw | 1 |
| 1 | 504152636 | Magnetic Plug 1/8 - 27 NPTF | 1 |
| 1 | 504152685 | Chain Tensioner | 1 |
| 1 | 504152739 | Slider Chain | 1 |
| 1 | 504152594 | Tensioner Axle | 1 |
| 1 | 504152282 | Circlip | 1 |
| 1 | 504152763 | Chaincase Cover Ass'y | 1 |
| 1 | 504152732 | Rotation Sensor | 1 |
| 1 | 250200100 | Bonded Washer | 1 |
| 1 | 293300130 | Tight Seal | 1 |
| 7 | 210263030 | Hex. Forming Screw M6 | 7 |
| 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML | ||
| 1 | 504152796 | Filler Cap | 1 |
| 1 | 507032437 | Bearing Housing | 1 |
| 1 | 293350059 | Ball Bearing | 1 |
| 1 | 504152633 | Bearing Housing | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 504152845 | Axle Drive Ass'y Includes 48 to 50 | 1 |
| XXXX | Not Available As Spare Part - Drive Axle | ||
| XXXX | Not Available As Spare Part - Sprocket 8th | ||
| 1 | 504152734 | Track Ass'y, 16X137X1.2RS Includes 51 to 53 | 1 |
| 1 | 504152803 | Track Ass'y 16" X 137" X 1.7" 600 HO SDI with Track 1.75, Includes 51 to 53 | 1 |
| 24 | 415129222 | Track Guide | 24 |
| 24 | 504152652 | Cleat | 24 |
| 1 | 414580700 | Male Connector | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
