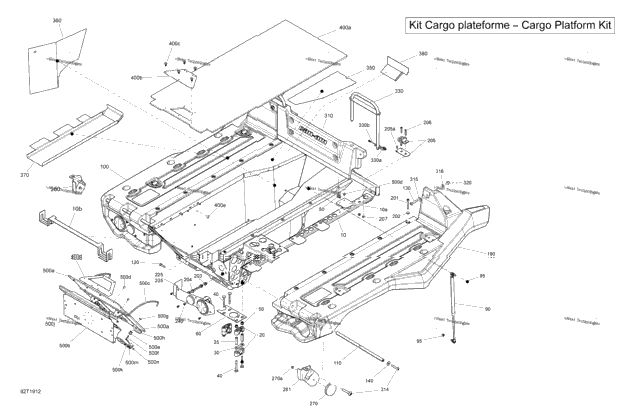

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 708301539 | RH Reflector Support | 1 |
| 708302552 | Metal Platform Paint | ||
| 8 | 708301095 | Linq Hole Filler | 8 |
| 705204887 | Brace Support | ||
| 8 | 506150400 | Housing Half | 8 |
| 8 | 506150500 | Housing Bushing | 8 |
| 4 | 506150600 | Stopper Plate | 4 |
| 8 | 207787044 | Carriage Bolt M8 X 70 | 8 |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 | 8 |
| 2 | 705203836 | Cargo Box Hinges Reinforcement Plate | 2 |
| 1 | 708301058 | Cargo Box Gas Shock | 1 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 1 | 715005138 | Black, LH Side Platform | 1 |
| 2 | 708300935 | Hinge Axis | 2 |
| 2 | 205083044 | Socket Head Screw M8 X 30 | 2 |
| 2 | 250000761 | Torx Truss Screw M8 X 50 | 2 |
| 2 | 234082670 | Stainless Steel Flat Washer | 2 |
| 1 | 715005140 | Black, RH Side Platform | 1 |
| 10 | 205484056 | Torx Truss M/S M8 X 40 | 10 |
| 10 | 503192494 | Washer | 10 |
| 13 | 233281414 | Hex. Flange Elastic Nut M8 | 13 |
| 3 | 207686544 | Hex. Flange Screw, M8 X 65 | 3 |
| 4 | 708301189 | Retaining Hook | 4 |
| 6 | 390909100 | Avex Rivet | 6 |
| 8 | 205363586 | Socket Screw M6 X 35 | 8 |
| 8 | 233061414 | Hex. Flange Nut M6 | 8 |
| 1 | 708301274 | LH Tail Light Plate International | 1 |
| 1 | 710001645 | Tail Light Ass'y International | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 International | 2 |
| 1 | 705011221 | Red Reflector International | 1 |
| 1 | 233251434 | Flange Elastic Nut M5 International | 1 |
| 605356527 | LH Tail Light Plate T3 | ||
| 1 | 710001645 | Tail Light Ass'y T3 | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 T3 | 2 |
| 1 | 710002964 | Flasher T3 | 1 |
| 1 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip T3 | 1 |
| 1 | 705011221 | Red Reflector T3 | 1 |
| 1 | 233251434 | Flange Elastic Nut M5 T3 | 1 |
| 1 | 710002055 | License Light T3 | 1 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 T3 | 2 |
| 1 | 708301275 | RH Tail Light Plate International | 1 |
| 605356528 | RH Tail Light Plate T3 | ||
| 8 | 205461060 | Socket Head Screw M6 X 10 | 8 |
| 1 | 708301538 | LH Reflector Support | 1 |
| 2 | 705011222 | Amber Reflector | 2 |
| 2 | 233251434 | Flange Elastic Nut M5 | 2 |
| 1 | 708302081 | Black, Front Panel Short Non Max Model | 1 |
| 1 | 715006274 | Black, Front Panel Max Max Model | 1 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 28056 | Cover | 2 |
| 2 | 708300939 | Locking Handle Weld | 2 |
| 2 | 41029 | Hair pin | 2 |
| 2 | 293750069 | Retainer Cable | 2 |
| 1 | 708301336 | Bed Heat Shield On Top | 1 |
| 1 | 708301337 | Bed Heat Shield On Side | 1 |
| 1 | 708301338 | Side Heat Shield | 1 |
| 1 | 708302168 | Heat Shield | 1 |
| 1 | 708300959 | Middle Deck | 1 |
| 1 | 715002810 | Middle Deck Ass'y | 1 |
| 5 | 293150108 | Pop Rivet 3/16” | 5 |
| 1 | 708301263 | Handle Plate | 1 |
| 3 | 414644300 | Black, Dart | 3 |
| 1 | 715002814 | Lower Tailgate Ass'y | 1 |
| 1 | 708301942 | Register Plate Support | 1 |
| 1 | 708301213 | Limiter Rail | 1 |
| 17 | 293150144 | Stavex Rivet | 17 |
| 2 | 605449087 | Counter Roller | 2 |
| 2 | 293150212 | Rivet | 2 |
| 2 | 708301695 | Plate | 2 |
| 1 | 708301261 | Limiter Hook | 1 |
| 1 | 219902672 | BRP Logo 68 mm | 1 |
| 2 | 5342952 | Hood Latch | 2 |
| 2 | 207142544 | Hex. Screw M4 X 25 | 2 |
| 2 | 232541484 | Elastic Stop Nut M4 | 2 |
