Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

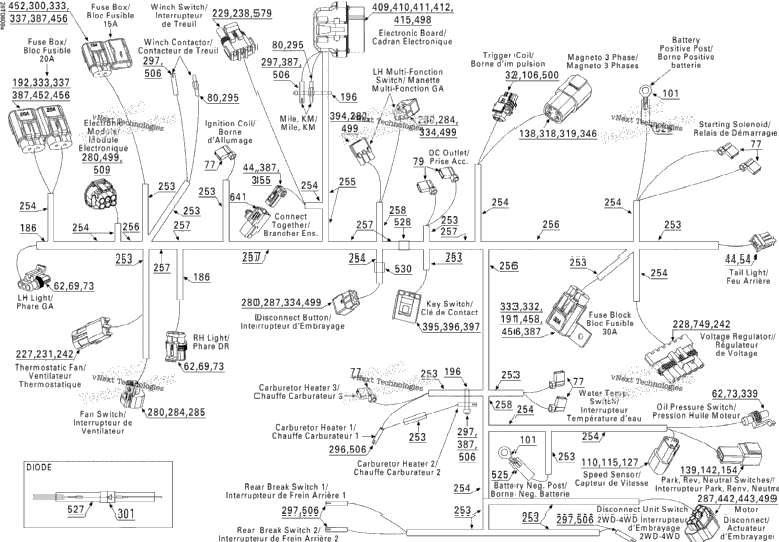

| 1 | 710000857 | MAIN HARNESS ASS'Y Includes 1 to 749 | 1 |
| 1 | 278000998 | Female Terminal | 1 |
| 1 | 515175231 | Female Terminal | 1 |
| 1 | 515175495 | Female Housing, 3 Circuits | 1 |
| 1 | 278001014 | Female Terminal | 1 |
| 1 | 409209600 | Female Housing, 3 Circuits | 1 |
| 1 | 278001013 | Wire Seal | 1 |
| 1 | 409010300 | Female Terminal | 1 |
| 1 | 710000038 | Female Terminal | 1 |
| 1 | 278000230 | Male Terminal | 1 |
| 1 | 278001392 | Open Barrel Terminal | 1 |
| 1 | 278001005 | Male Housing, 2 Circuits | 1 |
| 1 | 278000631 | Male Terminal | 1 |
| 1 | 409207000 | Male Housing, 3 Circuits | 1 |
| 1 | 409207600 | Male Lock, 3 Circuits | 1 |
| 1 | 293000052 | Sealing Cap | 1 |
| 1 | 409014800 | MALE TERMINAL | 1 |
| 1 | 710000044 | MALE HOUSING, 3 CIRCUITS | 1 |
| 1 | 710000043 | MALE LOCK, 3 CIRCUITS | 1 |
| 1 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long | 1 |
| 1 | 410917200 | Fuse, 30 Amperes | 1 |
| 1 | 409003900 | Fuse, 20 Amperes | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 2 | 409004300 | Male Terminal | 2 |
| 1 | 409007300 | Female Terminal | 1 |
| 1 | 278000223 | Female Terminal | 1 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 1 | 278000218 | Wire Seal | 1 |
| 1 | 219704425 | Tubing 6 Mm 3000Mm Long | 1 |
| 1 | 219704399 | Was 409901700 Tubing (9 mm) | 1 |
| 1 | 219704400 | Was 409901800 Tubing (13 mm) | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 1 | 219704398 | Was 409901600 Tubing 19mm | 1 |
| 1 | 219704407 | Tubing 10 MM 1000MM Long | 1 |
| 1 | 409012100 | Female Terminal | 1 |
| 1 | 409012300 | Seal | 1 |
| 1 | 710000078 | HOUSING-TAB | 1 |
| 1 | 710000080 | Cap | 1 |
| 1 | 278001008 | Insulated Sheath | 1 |
| 1 | 278000770 | Insulated Sheath | 1 |
| 1 | 278001007 | Insulated Sheath | 1 |
| 1 | 278000343 | Fuse, 15 Amperes | 1 |
| XXXX | Not Available As Spare Part - Diode | ||
| 1 | 278001477 | FEMALE HOUSING, 4 CIRCUITS | 1 |
| 1 | 515175568 | Male Terminal | 1 |
| 1 | 278001326 | Fuse Holder Cap | 1 |
| 1 | 278001325 | Fuse Holder | 1 |
| 1 | 710000081 | Female Housing, 6 Circuits | 1 |
| 1 | 710000113 | Female Terminal | 1 |
| 1 | 278001012 | Male Housing, 1 Circuit | 1 |
| 1 | 278001478 | MALE WEDGE, 4 CIRCUITS | 1 |
| 1 | 515175658 | Female Housing, 2 Circuits | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 710000275 | Female Terminal Housing, 3 Circuits | ||
| 1 | 710000274 | Female Terminal | 1 |
| 1 | 710000272 | Female Terminal Housing, 4 Circuits | 1 |
| 1 | 710000273 | Lock, 4 Circuits | 1 |
| 1 | 515175812 | Plug | 1 |
| 1 | 515175801 | Female Housing, 24 Circuits | 1 |
| 1 | 515175802 | Retainer Block | 1 |
| 1 | 515175803 | Wire Seal | 1 |
| 1 | 515175805 | LOCK | 1 |
| 1 | 515175806 | Female Terminal | 1 |
| 1 | 710000329 | Male Housing, 4 Circuits | 1 |
| 1 | 710000335 | Female Terminal | 1 |
| 1 | 710000342 | HOUSING COVER | 1 |
| 1 | 278000805 | Cushion | 1 |
| 1 | 710000357 | Female Terminal | 1 |
| 1 | 710000399 | Female Housing | 1 |
| 1 | 710000402 | Wire Seal | 1 |
| 1 | 710000403 | WIRE SEAL | 1 |
| 1 | 710000421 | Female Terminal | 1 |
| 1 | 710000503 | FEMALE TERMINAL HOUSING, 6 CIRCUITS | 1 |
| 710000482 | SHRINK TUBING | ||
| XXXX | Not Available As Spare Part - Shrink Tube | ||
| XXXX | Not Available As Spare Part - Coding Tape, Yellow | ||
| 710000488 | Coding Tape, Red | ||
| 1 | 710000504 | Wire Seal | 1 |
| 1 | 710000667 | Male Housing, 2 Circuits | 1 |
| 1 | 710000911 | HOUSING | 1 |
