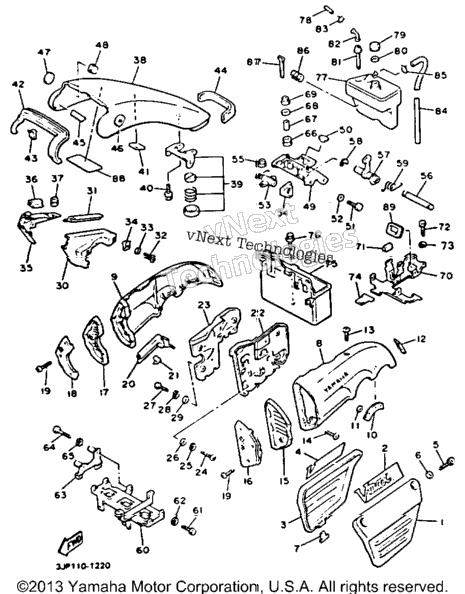

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1UT-21711-01-00 | Cover, Side 1 | ||
| 1UT-21783-00-00 | Emblem 3 | ||
| 1UT-21721-01-00 | Cover, Side 2 | ||
| 1 | 1UT-21784-00-00 | Emblem 4 | 1 |
| 4 | 90110-06102-00 | Bolt, Hexagon Socket Head | 4 |
| 4 | 92990-06200-00 | Washer, Plain | 4 |
| 2 | 2N4-21717-00-00 | Damper | 2 |
| 1FK-21731-00-00 | Cover, Side 3 | ||
| 1FK-21741-00-00 | Cover, Side 4 | ||
| 4 | 1FK-21778-00-00 | Damper, Locating 1 | 4 |
| 8 | 90183-06008-00 | Nut, Spring | 8 |
| 2 | 1FK-21747-00-00 | Damper | 2 |
| 2 | 92016-06012-00 | Bolt, Button Head | 2 |
| 2 | 92013-06025-00 | Bolt, Button Head | 2 |
| 1 | 1FK-2172G-00-00 | Panel 3 | 1 |
| 1FK-2837N-00-00 | Grill, Air Intake 1 | ||
| 1 | 1FK-2172H-00-00 | Panel 4 | 1 |
| 1 | 1FK-2837R-00-00 | Grill, Air Intake 2 | 1 |
| 6 | 92016-05012-00 | Screw | 6 |
| 1 | 1FK-2172W-00-00 | Cover | 1 |
| 90468-03178-00 | Clip | ||
| 1 | 1FK-2172A-01-00 | Panel 1 | 1 |
| 1 | 1FK-2172F-00-00 | Panel 2 | 1 |
| 3 | 98516-06020-00 | Screw, Pan Head | 3 |
| 3 | 92906-06100-00 | Washer, Spring | 3 |
| 3 | 92906-06600-00 | Washer | 3 |
| 3 | 98506-06016-00 | Screw, Panhead | 3 |
| 1 | 1FK-2171E-00-00 | Cover, Side 5 | 1 |
| 1FK-2171T-00-00 | Mole, Side Cover 5 | ||
| 1 | 97706-40512-00 | Screw, Tapping | 1 |
| 1 | 92906-04200-00 | Washer, Plain | 1 |
| 1 | 90183-04027-00 | Nut, Spring | 1 |
| 1 | 1FK-2171X-00-00 | Cover, Side 6 | 1 |
| 1 | 90480-12296-00 | Grommet | 1 |
| 1FK-2171A-00-MV | Cover, Top RED-E-SPARKLE | ||
| 1FK-2175J-00-00 | Lever Lock Comp | ||
| 2 | 95811-06010-00 | Bolt, Flange | 2 |
| 2 | 1FK-21746-00-00 | Damper | 2 |
| 1 | 1FK-28345-00-00 | Mole 1 | 1 |
| 6 | 1FK-2171H-00-00 | Guide | 6 |
| 1 | 1FK-2171L-00-00 | Mole, Side Cover 1 | 1 |
| 1FK-21732-00-00 | Seal 1 | ||
| 1 | 1FK-21781-00-00 | Emblem 1 | 1 |
| 1 | 1FK-21782-00-00 | Emblem 2 | 1 |
| 2 | 1FK-21779-00-00 | Damper, Locating 2 | 2 |
| 1 | 1FK-2172M-00-00 | Bracket 3 | 1 |
| 1 | 18A-24724-00-00 | .Damper, Seat | 1 |
| 3 | 97026-06012-00 | Bolt | 3 |
| 1FK-21708-00-00 | Lock Assy 2 | ||
| 1FK-24796-00-00 | Cover | ||
| 2 | 95706-06500-00 | .Nut, With Washer | 2 |
| [1F-K2176-U0-00 | Unavailable In Price Book | ||
| 1FK-2175K-00-00 | Lever, Lock | ||
| 2 | 99080-05600-00 | Circlip | 2 |
| 1 | 1FK-2176V-00-00 | Spring, Lock 2 | 1 |
| 1FK-21243-00-00 | Plate, Bridge | ||
| 4 | 97026-06012-00 | Bolt | 4 |
| 4 | 92906-06100-00 | Washer, Spring | 4 |
| 1 | 1FK-2172K-00-00 | Bracket 1 | 1 |
| 2 | 98506-06045-00 | Screw, Pan Head | 2 |
| 2 | 92906-06100-00 | Washer, Spring | 2 |
| 2 | 90480-12475-00 | Grommet | 2 |
| 2 | 90387-060A7-00 | Collar | 2 |
| 2 | 90201-06059-00 | Washer, Plate | 2 |
| 1 | 3UF-21359-00-00 | Bracket, Coil | 1 |
| 2 | 1FK-2171L-00-00 | Mole, Side Cover 1 | 2 |
| 2 | 97026-06012-00 | Bolt | 2 |
| 1 | 2N4-21717-00-00 | Damper | 1 |
| 1FK-2177G-00-00 | Box, Battery | ||
| 2 | 90119-06056-00 | Bolt, With Washer | 2 |
| 1 | 1FK-21871-00-00 | Tank, Recovery | 1 |
| 1 | 1FK-21816-00-00 | Pipe 1 | 1 |
| 1 | 26H-21875-00-00 | Cap | 1 |
| 1 | 26H-21874-00-00 | Gasket | 1 |
| 26H-21816-01-00 | Pipe 1 | ||
| 1 | 26H-21828-00-00 | Elbow | 1 |
| 1 | 90467-11044-00 | Clip | 1 |
| 1FK-21826-00-00 | Pipe, Breather | ||
| 1 | 90467-09006-00 | Clip | 1 |
| 1FK-2177M-00-00 | Damper, Locating 3 | ||
| 1 | 5Y9-12491-00-00 | Clamp 1 | 1 |
| 3JP-2179V-30-00 | Plate, Epa U49 UR | ||
| 3JP-2179R-30-00 | Plate, Epa Cal 2 UR CA | ||
| 1 | 214-84153-60-00 | Grommet, Wire Harness | 1 |
