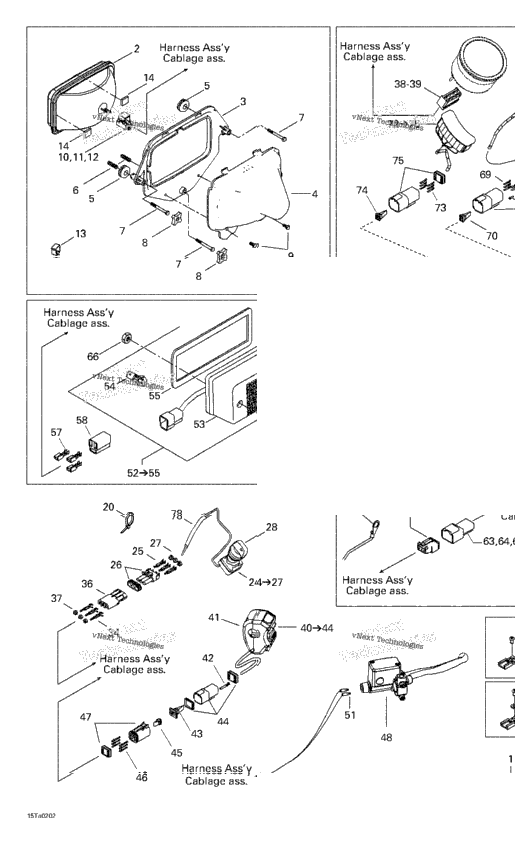

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 710000217 | Harness Ass'y | ||
| 710000001 | HEADLAMP | ||
| 705000474 | Head Lamp Support | ||
| 705000023 | Protector | ||
| 4 | 293720053 | Grommet | 4 |
| 4 | 517168600 | Spring | 4 |
| 4 | 250000008 | HEX. SCREW K40 X 40 | 4 |
| 4 | 572106600 | Handle | 4 |
| 4 | 241641040 | PHILLIPS SCREW K40 X 10 | 4 |
| 710000027 | Female Terminal | ||
| 710000028 | Female Lock, 2 Circuits | ||
| 2 | 710000026 | FEMALE TERMINAL HOUSING, 2 CIRCUITS | 2 |
| 4 | 414227300 | Clip | 4 |
| 293830088 | Rubber Pad | ||
| 2 | 409010700 | Female Terminal | 2 |
| 1 | 710000161 | HOUR METER | 1 |
| 1 | 517225900 | Flat Washer | 1 |
| 1 | 409012600 | Terminal Ring | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 3 | 390402400 | Pop Rivet 3/16" | 3 |
| 710000042 | Ignition Switch Ass'y Includes 24 - 27. | ||
| 3 | 278000223 | Female Terminal | 3 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 3 | 278000218 | Wire Seal | 3 |
| 1 | 710000101 | BLANK KEY (B TYPE) | 1 |
| 710000137 | BLANK KEY (A TYPE) | ||
| 1 | 710000024 | Dc Outlet, 12 Volts | 1 |
| 1 | 710000038 | Female Terminal | 1 |
| 2 | 409014900 | FEMALE LOCK, 6 CIRCUITS | 2 |
| 1 | 409015100 | FEMALE TERMINAL | 1 |
| 2 | 409015400 | FEMALE HOUSING, 6 CIRCUITS | 2 |
| 1 | 409004300 | Male Terminal | 1 |
| 4 | 270000141 | Clip | 4 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 1 | 278000218 | Wire Seal | 1 |
| 710000036 | Female Terminal | ||
| 710000035 | Female Housing (8 Circuits) | ||
| 710000015 | Multi-Fonction Switch Includes 40 - 44. | ||
| 1 | 710000173 | BACK COVER | 1 |
| 1 | 409014800 | MALE TERMINAL | 1 |
| 409014600 | Male Lock, 6 Circuits | ||
| 409015200 | Male Terminal Housing, 6 Circuits | ||
| 1 | 409014900 | FEMALE LOCK, 6 CIRCUITS | 1 |
| 1 | 409015400 | FEMALE HOUSING, 6 CIRCUITS | 1 |
| 705600120 | FRONT MASTER CYLINDER | ||
| 1 | 390402200 | Pop Rivet 3/16" | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 2 | 710000082 | Female Terminal | 2 |
| 710000102 | Tail Light Housing Includes 52 - 55. | ||
| 710000055 | TAIL LIGHT LENS, RED | ||
| 1 | 410504100 | Bulb | 1 |
| 1 | 710000129 | GASKET | 1 |
| 2 | 208656091 | PAN HEAD PHILLIPS SCREW M5 X 60 | 2 |
| 1 | 561503100 | FEMALE TERMINAL | 1 |
| 409204300 | Female Housing | ||
| 1 | 515175303 | PLUG | 1 |
| 515175248 | Female Lock, 3 Circuits | ||
| 1 | 515175249 | FEMALE TERMINAL HOUSING, 3 CIRC. | 1 |
| 1 | 710000043 | MALE LOCK, 3 CIRCUITS | 1 |
| 1 | 710000044 | MALE HOUSING, 3 CIRCUITS | 1 |
| 2 | 233251414 | Hex. Flange Elastic Nut M5 | 2 |
| 710000007 | RH Warning Lamp Includes 67 - 71. | ||
| 5 | 409014800 | MALE TERMINAL | 5 |
| 710000008 | LH Warning Lamp Includes 72 - 75. | ||
| 6 | 409014800 | MALE TERMINAL | 6 |
| 710000171 | Protector Tube |
