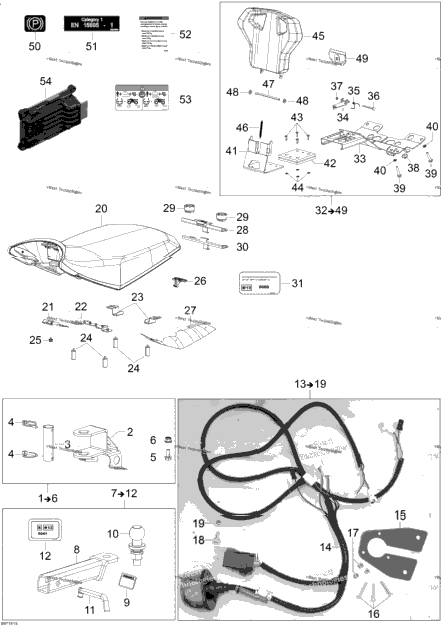

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Front Coupling Device Ass'y Includes 1 To 6 | ||
| 605256497 | Front Coupling Device | ||
| 605456511 | Pin | ||
| 2 | 605456518 | Pin | 2 |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 605256548 | Coupling Ball Ass'y Includes 7 To 12 | ||
| XXXX | Not Available As Spare Part - Ball Mount | ||
| XXXX | Not Available As Spare Part - Warning Decal (EN) | ||
| XXXX | Not Available As Spare Part - Warning Decal (FR) | ||
| XXXX | Not Available As Spare Part - Ball 50mm | ||
| 1 | 705203479 | Hitch Pin | 1 |
| 605456545 | Hitch Decal | ||
| 860200927 | Trailer Plug Ass'y Includes 13 To 19 | ||
| XXXX | Not Available As Spare Part - Rear Light Harness | ||
| 605356523 | Plug Support Plate | ||
| 3 | 205053588 | Socket Head Screw M5 X 35 | 3 |
| 3 | 233251414 | Hex. Flange Elastic Nut M5 | 3 |
| 1 | 207661644 | Hex. Flange Screw M6 X 16 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 605156590 | Seat Ass'y G2 T3 | ||
| 605456520 | Front Bottom Support | ||
| 510005986 | Support Central Cushion | ||
| 510005988 | Support Rear Cushion | ||
| 605456546 | RUBBER DAMPER | ||
| 10 | 293150067 | Rivet | 10 |
| 1 | 708000909 | Latch | 1 |
| 705005761 | HEAT SHIELD | ||
| 705204621 | Support Rear Seat | ||
| 2 | 708000760 | Bumper Rubber | 2 |
| 705204655 | Seat Rear Raiser | ||
| 605456593 | Decal | ||
| XXXX | Not Available As Spare Part - Backrest Ass'y Includes 32 To 49 | ||
| 708001850 | Passenger Seat Bracket | ||
| 605456510 | Backrest Lever Plate | ||
| 605456536 | Spring | ||
| 40203 | Screw M4x50 DIN 933 8.8 Zn(1=50pcs) | ||
| 33008 | Locknut M4 DIN985 m8 Zne(1=10pcs) | ||
| 2 | 605452114 | Plug | 2 |
| 4 | 207663534 | HEX. FLANGED SCREW M6 X 35 | 4 |
| 4 | 732610072 | Push Nut | 4 |
| 605456503 | Backrest Hinge Plate | ||
| 605456533 | Slider Plate | ||
| 4 | 36005 | Rivet | 4 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 605256566 | Backrest | ||
| 605456539 | Spring | ||
| 605456662 | Pin | ||
| 2 | 36084 | Safety Washer | 2 |
| 605356612 | Backrest Pad | ||
| 605356244 | P-Decal, T3 | ||
| 605456594 | Cabin Decal, T3 | ||
| 605356505 | Warning Decal | ||
| 1 | 704903953 | Warning Decal, Tire Pressure | 1 |
| 1 | 420264613 | ECM, ENGINE CONTROL MODULE | 1 |
