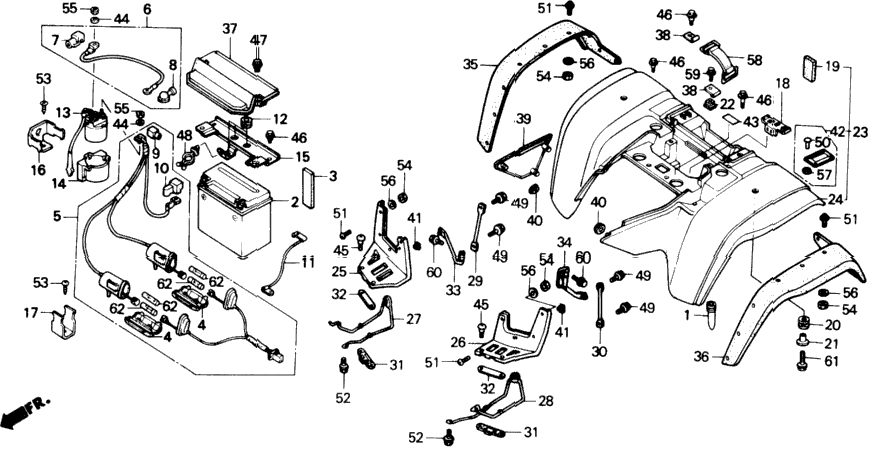

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 17358-VM4-000 | TUBE, DRAIN | 1 |
| 31500-HA7-675 | BATTERY (YTX14-BS) (YUASA) | ||
| 31500-HA7-676 | BATTERY (YTX14-BS) (YUASA) | ||
| 31500-HA7-678 | BATTERY (YTX14-BS) (YUASA) | ||
| 31500-HC4-726 | BATTERY (YTX14-BS) (YUASA) (MSDS) | ||
| 31500-HC4-726AH | BATTERY (YTX14-BS) (YUASA) (MSDS) | ||
| 31500-HC4-721 | BATTERY (YTX14-BS) (YUASA) | ||
| 31500-HC4-722 | BATTERY (YTX14-BS) (YUASA) | ||
| 32120-465-770 | CASE, FUSE (15A) | ||
| 32401-HC4-000 | CABLE, BATTERY RELAY | ||
| 32402-HC4-020 | CABLE, STARTER MOTOR | ||
| 32404-MJ0-000 | (SOURCE: VINTAGE PARTS INC.) | ||
| 1 | 32411-473-000 | COVER, TERMINAL | 1 |
| 1 | 32412-HB6-000 | COVER, MAGNETIC SWITCH TERMINAL | 1 |
| 1 | 32414-MM9-000 | COVER A, BATTERY TERMINAL | 1 |
| 32601-HC4-010 | CABLE, BATTERY GROUND | ||
| 3 | 33715-965-000 | RUBBER, TAILLIGHT MOUNTING | 3 |
| 1 | 35850-HC4-000 | SWITCH ASSY., STARTER MAGNETIC | 1 |
| 1 | 35856-425-000 | RUBBER, MAGNETIC SHOCK | 1 |
| 50311-HC4-670 | PLATE, BATTERY HOLDER | ||
| 1 | 50326-HC4-000 | STAY, STARTER MAGNETIC | 1 |
| 50327-HC4-000 | STAY, FUSE | ||
| 50328-HC4-000 | (SOURCE: VINTAGE PARTS INC.) | ||
| 1 | 50383-HC4-750 | RUBBER, RR. BATTERY | 1 |
| 2 | 61103-357-000 | RUBBER, FR. FENDER MOUNTING | 2 |
| 2 | 61104-428-000 | COLLAR, FR. FENDER | 2 |
| 2 | 61104-428-010 | COLLAR, FR. FENDER (WHITE) | 2 |
| 2 | 61104-428-730 | COLLAR, FR. FENDER (BLACK) | 2 |
| 1 | 61304-HB3-003 | NUT, SPECIAL (6MM) | 1 |
| 80100-HC5-750ZA | FENDER, RR. *R109* (PASSION RED) | ||
| 80100-HC5-750ZB | FENDER, RR. *PB149* (SOUTHERN BLUE) | ||
| 80100-HC5-760ZA | FENDER, RR. *R109* (PASSION RED) | ||
| 1 | 80121-HC4-670ZA | SPLASH GUARD, R. *NH1* (RR/FR) (BLACK) | 1 |
| 1 | 80122-HC4-670ZA | SPLASH GUARD, L. *NH1* (RR/FR) (BLACK) | 1 |
| 80123-HC4-770 | STAY, R. RR. FENDER | ||
| 80124-HC4-770 | STAY, L. RR. FENDER | ||
| 80125-HC4-770 | ROD, R. RR. FENDER STAY | ||
| 80126-HC4-770 | ROD, L. RR. FENDER STAY | ||
| 2 | 80127-HC4-770 | HOLDER, SPLASH GUARD (LOWER) | 2 |
| 2 | 80127-HM5-850 | HOLDER, SPLASH GUARD (LOWER) | 2 |
| 2 | 80128-HA7-830 | HOLDER, SPLASH GUARD (UPPER) | 2 |
| 80217-HC4-670 | (SOURCE: VINTAGE PARTS INC.) | ||
| 80218-HC4-670 | STAY, L. RR. FENDER (FR) | ||
| 1 | 80220-HC4-690ZA | SPLASH GUARD, R. RR. SIDE *NH1* (BLACK) | 1 |
| 1 | 80221-HC4-690ZA | SPLASH GUARD, L. RR. SIDE *NH1* (BLACK) | 1 |
| 1 | 80311-HC4-010ZA | COVER, BATTERY BOX *R109* (PASSION RED) | 1 |
| 1 | 80311-HM4-730ZB | COVER, BATTERY BOX *R109* (PASSION RED) | 1 |
| 80311-HC4-010ZC | COVER, BATTERY BOX *PB149* (SOUTHERN BLUE) | ||
| 80312-HC4-000 | HOOK, TOOL SETTING | ||
| 1 | 83500-HC4-671ZA | COVER, R SIDE *R109* (PASSION RED) | 1 |
| 1 | 83500-HM4-730ZB | COVER, R. SIDE *R109* (PASSION RED) | 1 |
| 1 | 83500-HC4-671ZB | COVER, R SIDE *PB149* (SOUTHERN BLUE) | 1 |
| 1 | 83500-HM4-730ZD | COVER, R. SIDE *PB149* (SOUTHERN BLUE) | 1 |
| 4 | 83551-300-000 | GROMMET, AIR CLEANER HOUSING | 4 |
| 2 | 84601-HC4-000 | NUT, FENDER SETTING (6MM) | 2 |
| 87505-HC5-305 | LABEL SET, TIRE & OVERLOAD WARNING | ||
| 87506-HC4-300 | MARK, BATTERY CAUTION | ||
| 2 | 90052-ZA0-800 | WASHER, SPRING (6MM) | 2 |
| 4 | 90103-HC4-770 | SCREW, SPLASH GUARD | 4 |
| 6 | 90111-HC4-000 | BOLT, FLANGE (6X14) | 6 |
| 2 | 90111-KM1-000 | BOLT, FLANGE (6MM) | 2 |
| 1 | 90119-HA7-670 | CLAMP, HARNESS | 1 |
| 4 | 90181-HB9-770 | BOLT, FLANGE (6X16) | 4 |
| 1 | 90841-HF1-670 | RIVET, POP (3.2) | 1 |
| 9 | 91508-GN2-000 | SCREW, PAN (5X10.5) | 9 |
| 1 | 93404-06016-07 | BOLT-WASHER (6X16) | 1 |
| 2 | 93901-25120 | SCREW, TAPPING (5X10) | 2 |
| 1 | 94050-05080 | NUT, FLANGE (5MM) | 1 |
| 2 | 94002-06390-0S | NUT, HEX. (6MM) | 2 |
| 1 | 94103-03800 | WASHER, PLAIN (3MM) | 1 |
| 1 | 95012-12001 | BAND B1, BATTERY | 1 |
| 1 | 95701-06010-08 | BOLT, FLANGE (6X10) | 1 |
| 4 | 95701-06014-07 | BOLT, FLANGE (6X14) | 4 |
| 2 | 95701-06020-08 | BOLT, FLANGE (6X20) | 2 |
| 4 | 98200-21500 | FUSE B (15A) | 4 |
