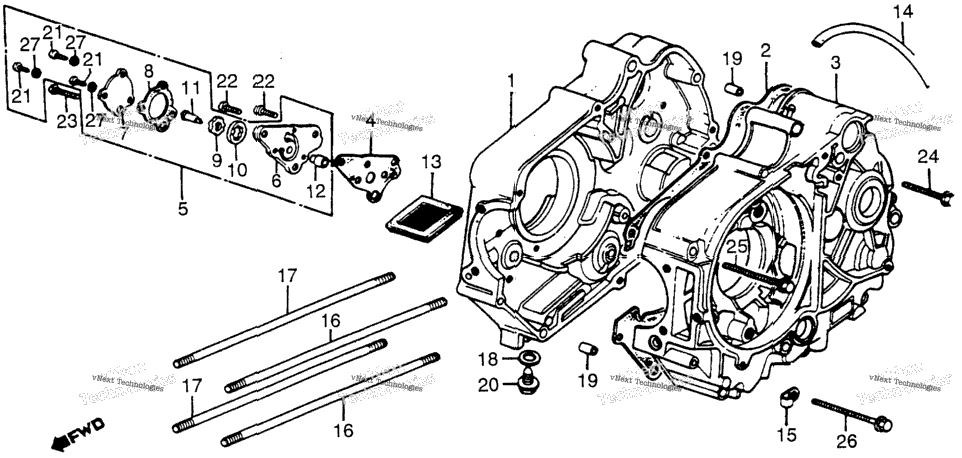

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 11100-086-701 | CRANKCASE, R. | ||
| 11191-035-070 | GASKET, CRANKCASE | ||
| 11191-035-050 | GASKET, CRANKCASE | ||
| 11191-035-060 | GASKET, CRANKCASE | ||
| 11191-035-307 | GASKET, CRANKCASE | ||
| 11200-125-010 | CRANKCASE, L. | ||
| 15119-035-020 | GASKET, OIL PUMP BODY | ||
| 15300-035-000 | PUMP ASSY., OIL | ||
| 15311-035-013 | BODY, OIL PUMP | ||
| 15321-035-003 | COVER, OIL PUMP | ||
| 1 | 15329-035-003 | GASKET, OIL PUMP COVER | 1 |
| 15331-035-004 | ROTOR, OIL PUMP (INNER) | ||
| 15332-035-004 | ROTOR, OIL PUMP (OUTER) | ||
| 15382-035-003 | DRIVESHAFT, OIL PUMP | ||
| 15383-035-003 | PIN, OIL PUMP KNOCK | ||
| 1 | 15421-035-010 | SCREEN, OIL FILTER | 1 |
| 15761-045-000 | TUBE, FUEL | ||
| 95001-50000 | TUBE (5X450) | ||
| 95001-50000-90 | TUBE (5X320) | ||
| 1 | 95001-55003-60M | BULK HOSE, FUEL (5.5X3000) (5.5X350) | 1 |
| 1 | 16236-045-010 | CLAMP, OVERFLOW PIPE | 1 |
| 2 | 90031-035-010 | BOLT A, CYLINDER STUD | 2 |
| 2 | 90032-035-000 | BOLT B, CYLINDER STUD | 2 |
| 1 | 90407-231-000 | GASKET, DRAIN VALVE | 1 |
| 1 | 90407-259-000 | GASKET, DRAIN VALVE (12.5X20) | 1 |
| 1 | 94109-12000 | WASHER, DRAIN PLUG (12MM) | 1 |
| 2 | 90704-035-000 | PIN, KNOCK (10X14A) | 2 |
| 2 | 94301-10140 | PIN A, DOWEL (10X14) | 2 |
| 1 | 92800-12000 | BOLT, DRAIN PLUG (12MM) | 1 |
| 3 | 93500-05010-0A | SCREW, PAN (5X10) | 3 |
| 2 | 93500-06016 | SCREW, PAN (6X16) | 2 |
| 2 | 93500-06016-0A | SCREW, PAN (6X16) | 2 |
| 1 | 93500-06022 | SCREW, PAN (6X22) | 1 |
| 1 | 93500-06022-0A | SCREW, PAN (6X22) | 1 |
| 1 | 93500-06050 | SCREW, PAN (6X50) Use up to Engine SN 2605845 | 1 |
| 1 | 93500-06050-0A | SCREW, PAN (6X50) Use up to Engine SN 2605845 | 1 |
| 1 | 96000-06050-00 | BOLT, FLANGE (6X50) Use from Engine SN 2605846 | 1 |
| 1 | 96001-06050-00 | BOLT, FLANGE (6X50) Use from Engine SN 2605846 | 1 |
| 3 | 93500-06060 | SCREW, PAN (6X60) Use up to Engine SN 2605845 | 3 |
| 3 | 93500-06060-0A | SCREW, PAN (6X60) Use up to Engine SN 2605845 | 3 |
| 3 | 96000-06060-00 | BOLT, FLANGE (6X60) Use from Engine SN 2605846 | 3 |
| 3 | 96001-06060-00 | BOLT, FLANGE (6X60) Use from Engine SN 2605846 | 3 |
| 4 | 93500-06065 | SCREW, PAN (6X65) Use up to Engine SN 2605845 | 4 |
| 4 | 93500-06065-0A | SCREW, PAN (6X65) Use up to Engine SN 2605845 | 4 |
| 4 | 96000-06065-00 | BOLT, FLANGE (6X65) Use from Engine SN 2605846 | 4 |
| 4 | 96001-06065-00 | BOLT, FLANGE (6X65) Use from Engine SN 2605846 | 4 |
| 3 | 94111-05000 | WASHER, SPRING (5MM) | 3 |
