Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

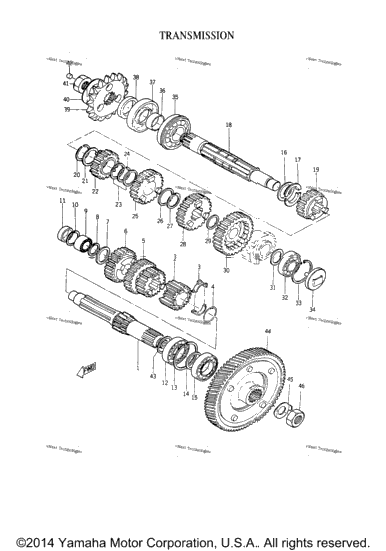

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 156-17411-00-00 | Axle, Main ~18926 | ||
| 159-17411-00-00 | Axle, Main (DS3)18927~ | ||
| 159-17121-00-00 | Gear, 2Nd Pinion 15T | ||
| 156-17115-00-00 | Plate, Setting | ||
| 152-17127-00-00 | Clip, Gear Hold | ||
| 159-17131-00-00 | Gear, 3Rd And 5Th Pinion (DS3)18927~ | ||
| 152-17131-00-00 | Gear, 3Rd And 5Th Pinion ~18926, 22-28T | ||
| 159-17131-01-00 | Gear, 3Rd And 5Th Pinion DS3)36320~, 18-22T | ||
| 159-17141-00-00 | Gear, 4Th Pinion (DS3)18927~, 20T | ||
| 156-17141-00-00 | Gear, 4Th Pinion ~18926, 25T | ||
| 1 | 156-17116-00-00 | Washer,Gear Hold 1 17.5-26-1 | 1 |
| 1 | 93410-17008-00 | Circlip | 1 |
| 93311-21704-00 | Bearing | ||
| 1 | 93420-25002-00 | Circlip | 1 |
| 156-17481-00-00 | Plug, Blind | ||
| 1 | 93306-00501-00 | Bearing 6005 | 1 |
| 93450-47011-00 | Circlip, Inner | ||
| 156-17419-00-00 | Spacer, Main Axle | ||
| 1 | 93306-00503-00 | Bearing 6005 Z | 1 |
| 156-17428-00-00 | Shim, Main Axle 25-34-1.2 | ||
| 156-17429-00-00 | Spacer, Drive Axle | ||
| 156-17421-00-00 | Axle, Drive | ||
| 156-17241-00-00 | Gear, 4Th Wheel ~18926, 24T | ||
| 159-17241-00-00 | Gear, 4Th Wheel (DS3)18927~, 19T | ||
| 1 | 93440-25008-00 | Circlip | 1 |
| 152-17218-00-00 | Washer, Gear Hold 1 | ||
| 159-17251-00-00 | Gear, 5Th Wheel (DS3)18627~, 17T | ||
| 152-17251-00-00 | Gear 5Th Wheel ~18926, 21T | ||
| 2 | 152-17226-00-00 | Washer, Gear Hold 2 25-32-1 | 2 |
| 1 | 93410-25010-00 | Circlip | 1 |
| 159-17231-01-00 | Gear, 3Rd Wheel (DS3)36320~, 21T | ||
| 152-17231-00-00 | Gear, 3Rd Wheel ~18926, 27T | ||
| 159-17231-00-00 | Gear, 3Rd Wheel (DS3)18927~, 22T | ||
| 145-17221-00-00 | Gear, 2Nd Wheel (DS3)34434~, 23T | ||
| 152-17221-00-00 | Gear, 2Nd Wheel ~18926, 30T | ||
| 159-17221-00-00 | Gear, 2Nd Wheel (DS3)18927~,24T | ||
| 1 | 150-17219-00-00 | Shim 2 20.2-28-1 | 1 |
| 152-17211-00-00 | Gear, 1St Wheel ~18926, 30T | ||
| 159-17211-00-00 | Gear, 1St Wheel (DS3)18927~, 28T | ||
| 156-17427-00-06 | Shim 1 17.2-26-0.6 | ||
| 156-17427-00-07 | Shim 1 17.2-26-0.7 | ||
| 156-17427-00-08 | Shim 1 17.2-26-0.8 | ||
| 1 | 93306-20310-00 | Bearing 6203 | 1 |
| 1 | 93420-40064-00 | Circlip | 1 |
| 156-17488-00-00 | Bucket, Oil 1 | ||
| 93306-30502-00 | Bearing 6305NR | ||
| 1 | 156-17462-00-00 | Collar, Distance 25-30-14 | 1 |
| 93102-30025-00 | Oil Seal, Sd-Type SD 30-62-8 | ||
| 156-17465-00-00 | Seal, Felt | ||
| 156-17461-40-00 | Sprocket, Drive 14T | ||
| 156-17461-50-00 | Sprocket, Drive 15T, STD | ||
| 156-17461-80-00 | Sprocket, Drive 18T | ||
| 156-17461-30-00 | Sprocket, Drive 13T | ||
| 156-17461-60-00 | Sprocket, Drive 16T | ||
| 156-17461-70-00 | Sprocket, Drive 17T | ||
| 1 | 90215-21022-00 | Washer, Lock | 1 |
| 1 | 152-17463-00-00 | Nut, Lock | 1 |
| 150-17482-00-00 | Plug, Blind 2 | ||
| 156-17417-00-00 | Shim, Main Axle 25.1-31-0.1 | ||
| 156-16150-00-00 | Primary Driven Gear Comp | ||
| 152-16175-00-00 | Washer, Lock | ||
| 156-16174-00-00 | Nut, Lock |
