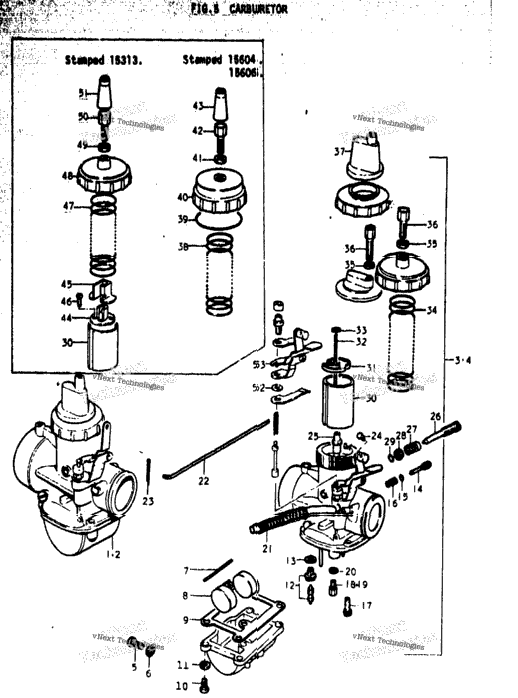

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 13201-15604 | CARBURETOR ASSY, RH R,J; TO 13201-15606 STAMPED 15604,#1 | ||
| 13201-15606 | CARBURETOR ASSY, RH R,J; STAMPED 15606 | ||
| 13201-15310 | CARBURETOR ASSY, RH K; TO 13201-15313 STAMPED 15310 | ||
| 13201-15312 | CARBURETOR ASSY, RH K; TO 13201-15313 | ||
| 13201-15313 | CARBURETOR ASSY, RH K,L,M; STAMPED 15313 | ||
| 13202-15604 | CARBURETOR ASSY, LH R,J; TO 13202-15606 STAMPED 15604,#2 | ||
| 13202-15606 | CARBURETOR ASSY, LH R,J; STAMPED 15606 | ||
| 13202-15310 | CARBURETOR ASSY, LH K; TO 13202-15313 STAMPED 13310 | ||
| 13202-15312 | CARBURETOR ASSY, LH K; TO 13202-15313 | ||
| 13202-15313 | CARBURETOR ASSY, LH K,L,M; STAMPED 15313; Includes Item(s) 5 - 53 | ||
| 2 | 13247-05010 | PLUG, DRAIN R,J,K,L,M | 2 |
| 2 | 13249-05010 | GASKET, DRAIN PLUG R,J,K,L,M | 2 |
| 2 | 13254-01010 | .PIN,FLOAT R,J,K,L,M | 2 |
| 13252-18010 | FLOAT R,J,K,L,M | ||
| 2 | 13251-33110 | GASKET, FLOAT CHAMBER R,J,K,L,M | 2 |
| 8 | 02111-04168 | SCREW R,J,K,L,M | 8 |
| 8 | 08321-21048 | LOCK WASHER R,J,K,L,M | 8 |
| 13370-18010 | VALVE ASSY, NEEDLE R,J,K,L,M | ||
| 2 | 13392-15010 | GASKET, NEEDLE VALVE R,J | 2 |
| 2 | 13392-16600 | GASKET, NEEDLE VALVE K,L,M | 2 |
| 13269-15010 | SCREW, PILOT AIR R,J,K | ||
| 13269-15011 | SCREW, PILOT AIR L,M | ||
| 2 | 13295-33010 | .O-RING L,M | 2 |
| 2 | 13268-01010 | SPRING, AIR SCREW R,J,K,L,M | 2 |
| 2 | 09492-30003 | JET, PILOT R,J,K,L,M; #30 | 2 |
| 09491-30004 | JET, MAIN R,J,L; #150 :OPT | ||
| 09491-28006 | JET, MAIN J,L; #142.5 OPT | ||
| 09491-29001 | JET, MAIN R,J,M; #145 OPT | ||
| 09491-28004 | JET, MAIN R,J,L; #147.5 OPT | ||
| 09491-30005 | JET, MAIN J,L; #152.5 OPT | ||
| 2 | 09491-97001 | JET, MAIN K,L,M; #97.5 | 2 |
| 2 | 09491-92001 | JET, MAIN K,L; #92.5 OPT | 2 |
| 2 | 09491-95003 | JET, MAIN K,L; #95 OPT | 2 |
| 2 | 09491-20003 | JET, MAIN K,L; #100 OPT | 2 |
| 2 | 09491-20004 | JET, MAIN K,L; #102.5 OPT | 2 |
| 09491-30003 | JET, MAIN R; #150 OPT | ||
| 2 | 13382-03110 | WASHER, MAIN JET R,J,K,L,M | 2 |
| 44390-15601 | TUBE, BOOST R,J,K,L; L:180 TO 13683-31610 | ||
| 1 | 13683-31610 | TUBE, BOOST M | 1 |
| 13425-15010 | ROD, STARTER R,J,K,L,M | ||
| 1 | 04111-12108 | COTTER PIN R,J,K,L,M | 1 |
| 13429-15010 | BOLT, STARTER ROD R,J,K,L,M | ||
| 09494-00051 | JET, NEEDLE (RH CARBURETOR) R,J,K; P-4, :USE RH AND LH CARBURETORS.L,M; P-4, :USE RH AND LH CARBURETORS.L,M; P-4, :USE RH AND LH CABURETORS. | ||
| 09494-00056 | JET, NEEDLE (LH CARBURETOR) R,J,K; P-5 | ||
| 09494-00044 | JET, NEEDLE R,J; P-8, OPT | ||
| 2 | 13267-15110 | SCREW, THROTTLE STOP R,J,K | 2 |
| 13267-31011 | SCREW, THROTTLE STOP K,L,M | ||
| 2 | 13268-03110 | SPRING, STOP SCREW R,J,K | 2 |
| 13268-31011 | SPRING, STOP SCREW K,L,M | ||
| 13291-34010 | COVER K,L,M | ||
| 2 | 13294-30010 | O RING K,L,M | 2 |
| 13551-31010 | VALVE, THROTTLE RH R,J,K; CA:2.5 | ||
| 13551-31012 | VALVE, THROTTLE RH J | ||
| 13551-31013 | VALVE, THROTTLE RH K,L,M | ||
| 13561-31010 | VALVE, THROTTLE LH R,J,K | ||
| 13561-31012 | VALVE, THROTTLE LH J | ||
| 13561-31013 | VALVE, THROTTLE LH K,L,M | ||
| 13581-15010 | SEAT, SPRING R,J,K | ||
| 13383-15600 | NEEDLE, JET R,J; 5EP8 | ||
| 13383-15310 | NEEDLE, JET K,L,M; 5FP17-3 | ||
| 2 | 13394-10010 | CLIP, NEEDLE R,J,K,L,M | 2 |
| 13573-31010 | SPRING, THROTTLE VALVE R,J,K | ||
| 2 | 13661-03010 | NUT, CABLE ADJUSTER R,J,K | 2 |
| 2 | 13577-03010 | ADJUSTER, CABLE R,J,K | 2 |
| 13681-11010 | BOOT, CABLE ADJUSTER R,J,K | ||
| 13573-31011 | SPRING, THROTTLE VALVE J | ||
| 13295-31010 | O RING J | ||
| 13261-15112 | TOP, MIXING CHAMBER J | ||
| 13661-31010 | NUT, CABLE ADJUSTER J | ||
| 13577-31010 | ADJUSTER, CABLE J | ||
| 13681-15010 | BOOT, CABLE ADJUSTER J | ||
| 13398-34010 | CONNECTOR K,L,M | ||
| 13394-31010 | COVER K,L,M | ||
| 2 | 13399-34010 | SCREW K,L,M | 2 |
| 13573-31012 | SPRING, THROTTLE VALVE K,L,M | ||
| 13261-15111 | TOP, MIXING CHAMBER K,L,M | ||
| 2 | 13661-16600 | NUT, CABLE ADJUSTER K,L,M | 2 |
| 13577-15010 | ADJUSTER, CABLE K,L,M | ||
| 2 | 13681-33010 | BOOT, CABLE ADJUSTER K,L,M | 2 |
| 2 | 13295-15010 | O RING, STARTER VALVE K,L,M | 2 |
| 13414-15010 | LEVER, STARTER LH K,L,M |
