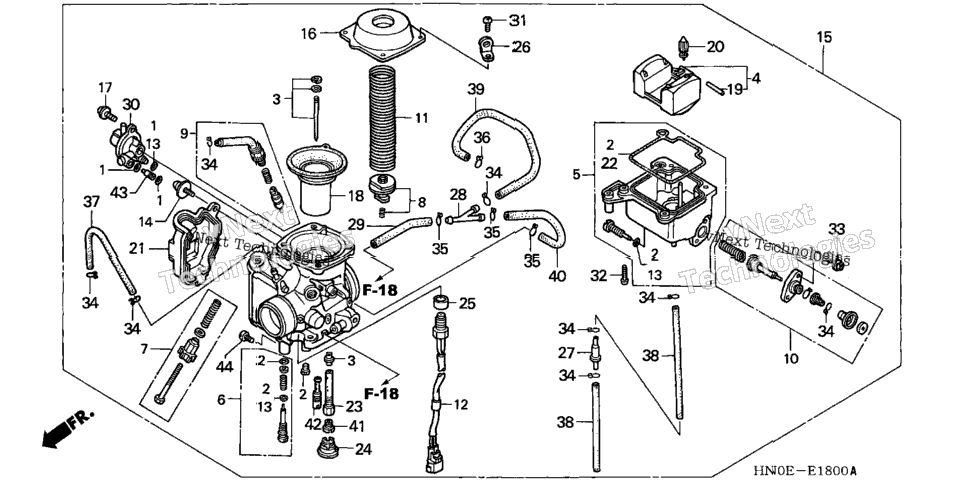

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 16010-HM7-670 | GASKET SET | 1 |
| 1 | 16041-MZ5-600 | GASKET SET C | 1 |
| 1 | 16010-HM7-700 | GASKET SET | 1 |
| 16012-HN0-A00 | NEEDLE SET, JET | ||
| 1 | 16013-HN5-671 | FLOAT SET | 1 |
| 16015-HM7-700 | CHAMBER SET, FLOAT | ||
| 1 | 16016-HM7-670 | SCREW SET | 1 |
| 1 | 16028-HM5-730 | SCREW SET | 1 |
| 1 | 16037-HM5-L00 | PLATE SET, VALVE | 1 |
| 1 | 16046-HM5-730 | VALVE SET, STARTER | 1 |
| 1 | 16048-HM7-700 | PUMP SET | 1 |
| 1 | 16048-HN7-003 | PUMP SET | 1 |
| 1 | 16050-HM5-L00 | SPRING, COMPRESSION COIL | 1 |
| 16070-HN0-A01 | HEATER ASSY. | ||
| 3 | 16076-ND5-004 | O-RING (1.3X4.3) (CARBURETOR NO.) | 3 |
| 1 | 16080-HC0-003 | SCREW-WASHER | 1 |
| 1 | 16100-HN0-672 | CARBURETOR ASSY. (VE93C B) | 1 |
| 16107-KM3-702 | TOP | ||
| 1 | 16108-MW0-750 | SCREW | 1 |
| 1 | 16111-HM7-670 | PISTON, VACUUM | 1 |
| 1 | 16152-HN5-671 | PIN, ARM | 1 |
| 1 | 16152-HN8-003 | PIN, ARM | 1 |
| 1 | 16155-KJ9-751 | VALVE, FLOAT | 1 |
| 1 | 16155-413-751 | VALVE, FLOAT | 1 |
| 1 | 16157-HN8-003 | COVER, BODY | 1 |
| 1 | 16163-HM7-700 | GASKET, FLOAT CHAMBER | 1 |
| 1 | 16165-HC4-840 | HOLDER, NEEDLE JET | 1 |
| 1 | 16165-HN5-B01 | HOLDER, NEEDLE JET | 1 |
| 1 | 16168-HC4-003 | HOLDER, JET | 1 |
| 16172-HN0-A00 | COLLAR, SETTING | ||
| 16179-428-670 | BINDER (CARBURETOR NO.) | ||
| 1 | 16180-HC4-003 | VALVE, ONE-WAY | 1 |
| 1 | 16180-ML6-671 | JOINT | 1 |
| 16199-HN0-671 | TUBE | ||
| 1 | 16510-MZ5-700 | VALVE ASSY., AIR CUT | 1 |
| 4 | 93500-04008-0H | SCREW, PAN (4X8) | 4 |
| 4 | 93500-04008-1H | SCREW, PAN (4X8) | 4 |
| 4 | 93500-04014-0H | SCREW, PAN (4X14) | 4 |
| 4 | 93500-04014-1H | SCREW, PAN (4X14) | 4 |
| 2 | 93892-04012-08 | SCREW-WASHER (4X12) | 2 |
| 2 | 93892-04012-18 | SCREW-WASHER (4X12) | 2 |
| 8 | 95002-02079 | CLIP, TUBE (B17) | 8 |
| 3 | 95002-02089 | CLIP, TUBE (B1 8) | 3 |
| 1 | 95002-02659 | CLIP, TUBE (B6.5) | 1 |
| 1 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 1 |
| 2 | 95005-35001-50M | BULK HOSE, VACUUM (3.5X1000) (3.5X350) | 2 |
| 1 | 95005-35001-50M | BULK HOSE, VACUUM (3.5X1000) (3.5X350) | 1 |
| 1 | 95005-45001-50M | BULK HOSE, VACUUM (4.5X1000) (4.5X220) | 1 |
| 1 | 99101-GHB-1200 | JET, MAIN (#120) (Optional). | 1 |
| 1 | 99101-GHB-1300 | JET (#130) | 1 |
| 1 | 99101-MBZ-1200 | JET, SECONDARY MAIN (#120) (Optional). | 1 |
| 1 | 99101-MEG-1300 | JET (#130) | 1 |
| 1 | 99101-393-1300 | JET, MAIN (#130) | 1 |
| 1 | 99103-MA1-0450 | JET, SLOW (#45) | 1 |
| 1 | 99104-KPF-0450 | JET, SLOW (#45) | 1 |
| 1 | 99108-HM7-1400 | JET (#140) | 1 |
| 1 | 99112-HC4-0850 | JET, BY-STARTER (#85) | 1 |
| 1 | 99112-HN2-0850 | JET (#85) | 1 |
