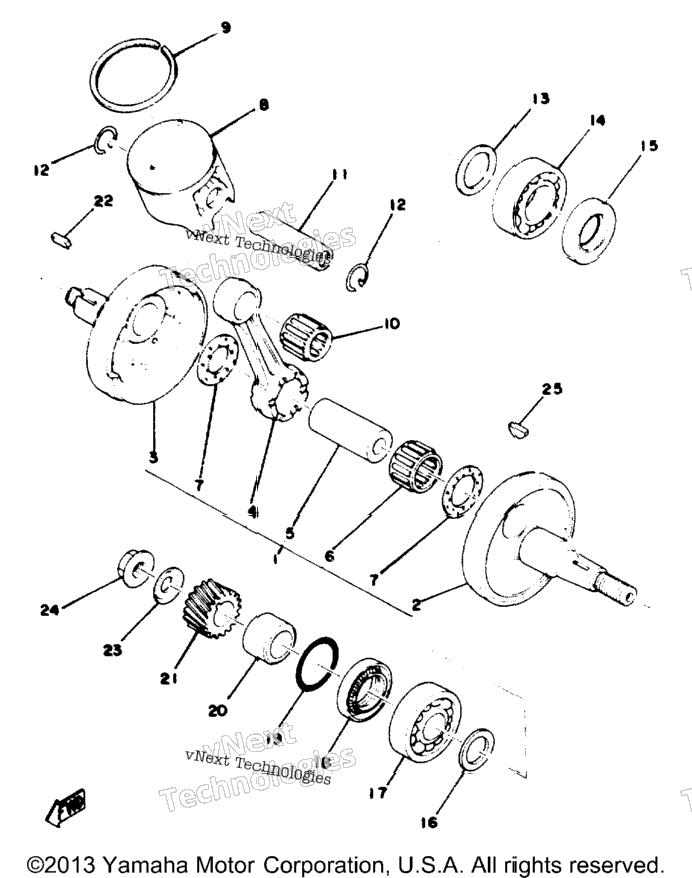

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1G8-11400-01-00 | Crankshaft Assembly | ||
| 1 | 1W1-11412-01-00 | . Crank 1 | 1 |
| 525-11422-00-00 | Crank 2 | ||
| 3R2-11651-01-00 | . Rod, Connecting | ||
| 1 | 3M5-11681-00-00 | . Pin, Crank 1 | 1 |
| 1 | 93310-422C8-00 | . Bearing, Cylinder | 1 |
| 2 | 90209-22248-00 | . Washer | 2 |
| 537-11631-02-96 | Piston Std YZ125X (1G8) | ||
| 1G8-11630-40-00 | Piston Kit 4Th ALT PART YZ125X (1G8) | ||
| 1G8-11630-30-00 | Piston Kit 3Rd ALT PART YZ125X (1G8) | ||
| 1G8-11630-20-00 | Piston Kit 2Nd ALT PART YZ125X (1G8) | ||
| 1G8-11630-10-00 | Piston Kit 1St ALT PART YZ125X (1G8) | ||
| 1G8-11630-00-00 | Piston Kit Std YZ125X (1G8) | ||
| 537-11638-02-00 | Piston 4 O/S 1.00 ALT PART YZ125X (1G8) | ||
| 537-11637-02-00 | Piston 3 O/S 0.75 ALT PART YZ125X (1G8) | ||
| 537-11636-02-00 | Piston 2 O/S 0.50 ALT PART YZ125X (1G8) | ||
| 537-11635-02-00 | Piston 1 O/S 0.25 ALT PART YZ125X (1G8) | ||
| 3R2-11638-01-00 | Piston 4 O/S 1.00 (4Th O/S 1.00 U.R. ALT. PART YZ100C (1J4) | ||
| 3R2-11637-01-00 | Piston 3 O/S 0.75 (2Rd O/S 0.75 U.R. ALT. PART YZ100C (1J4) | ||
| 3R2-11636-01-00 | Piston 2 O/S 0.50 (2Nd O/S 0.50 U.R. ALT. PART YZ100C (1J4) | ||
| 3R2-11635-01-00 | Piston 1O/S 0.25 (1St O/S 0.25M U.R. ALT. PART YZ100C (1J4) | ||
| 3R2-11631-01-96 | Piston Std U.R. YZ100C (1J4) | ||
| 401-11611-01-00 | Ring, Piston Std YZ125X (1G8) | ||
| 401-11611-21-00 | Ring, Piston 2Nd ALT PART YZ125X (1G8) | ||
| 1G9-11601-00-00 | Ring, Piston Std (Std) FOR 1J4 PISTON YZ125X (1G8) | ||
| 401-11611-41-00 | Ring, Piston 4Th ALT PART YZ125X (1G8) | ||
| 401-11611-31-00 | Ring, Piston 3Rd ALT PART YZ125X (1G8) | ||
| 401-11611-11-00 | Ring, Piston 1St ALT PART YZ125X (1G8) | ||
| 2W5-11611-00-00 | Ring, Piston Std (Std) FOR 2K5 PISTON YZ100C (1J4) | ||
| 2W5-11611-40-00 | Ring, Piston 4Th (4Th O/S) FOR 2K5 PISTON ALT PART YZ100C (1J4) | ||
| 1G9-11611-40-00 | Ring, Piston 4Th FOR 194 PISTON ALT PART YZ100C (1J4) | ||
| 2W5-11611-30-00 | Ring, Piston 3Rd (3Rd O/S) FOR 2K5 PISTON ALT PART YZ100C (1J4) | ||
| 2W5-11611-20-00 | Ring, Piston 2Nd (2Nd O/S) FOR 2K5 PISTON ALT PART YZ100C (1J4) | ||
| 1G9-11611-20-00 | Ring, Piston 2Nd FOR 1J4 PISTON ALT PART YZ100C (1J4) | ||
| 2W5-11611-10-00 | Ring, Piston 1St (1St O/S) FOR 2K5 PISTON ALT PART YZ100C (1J4) | ||
| 1G9-11611-10-00 | Ring, Piston 1St (1St O.S.) FOR 1J4 PISTON ALT PART YZ100C (1J4) | ||
| 1 | 93310-216L2-00 | Bearing, Cylindrical | 1 |
| 1 | 137-11633-00-00 | Pin, Piston YZ125X (1G8) | 1 |
| 1J4-11633-00-00 | Pin, Piston YZ100C (1J4) | ||
| 2 | 93450-17025-00 | Circlip | 2 |
| 132-11561-00-03 | Shim, Crank 1 | ||
| 132-11561-00-05 | Shim, Crank 1 | ||
| 1 | 93306-20529-00 | Bearing (B6205c4) | 1 |
| 1 | 93103-25125-00 | Oil Seal, Sw-Type | 1 |
| 136-11561-00-04 | Shim, Crank 1 UR | ||
| 136-11561-00-03 | Shim, Crank 1 UR | ||
| 136-11561-00-05 | Shim, Crank 1 UR | ||
| 136-11561-00-06 | Shim, Crank 1 UR | ||
| 136-11561-00-07 | Shim, Crank 1 UR | ||
| 136-11561-00-08 | Shim, Crank 1 UR | ||
| 1 | 93306-30421-00 | Bearing | 1 |
| 1 | 93103-28011-00 | Oil Seal, Sw-Type (93103-28100) | 1 |
| 1 | 93210-180A6-00 | O-Ring | 1 |
| 1 | 90387-20488-00 | Collar | 1 |
| 525-16111-00-00 | Gear, Pri Drive YZ100C (1J4) | ||
| 1G8-16111-00-00 | Gear, Pri Drive YZ125X (1G8) | ||
| 1 | 90282-05005-00 | Key, Straight | 1 |
| 90208-12015-00 | Washer, Conical Spring | ||
| 1 | 90179-12244-00 | Nut, Specl Shape | 1 |
| 1 | 90280-03017-00 | Key, Woodruff | 1 |
