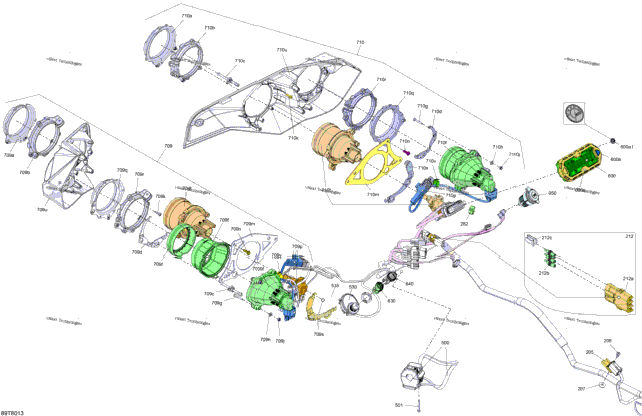

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710005760 | DPS Connector Cap Not Shown | 1 |
| 1 | 270000141 | Clip | 1 |
| 1 | 390402300 | Pop Rivet 3/16" | 1 |
| 1 | 391301600 | Washer | 1 |
| 1 | 710000917 | Connector Ass'y Includes 212 to 212c | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 3 | 278000216 | Wire Seal | 3 |
| 1 | 710000992 | Clip | 1 |
| 1 | 414227300 | Clip | 1 |
| 1 | 710005072 | Multi-Function Handle | 1 |
| 2 | 205053588 | Socket Head Screw M5 X 35 | 2 |
| 1 | 515178840 | Terminal Dess One-Wire | 1 |
| 1 | 278002963 | Safety Nut (DESS Switch) | 1 |
| 1 | 710005553 | Speedometer Includes 600 to 600b | 1 |
| 1 | 710001183 | Trim Ring Ass'y Includes 600a to 600a1 | 1 |
| 1 | 516010651 | BRP Logo 13 MM | 1 |
| 1 | 715900265 | Button | 1 |
| 1 | 710005232 | Green Key RFID | 1 |
| 1 | 710004964 | Grey Key RFID | 1 |
| 1 | 710002524 | Low Beam Ass'y Includes 709 to 709v | 1 |
| 1 | 710002525 | High Beam Ass'y Includes 709 to 709v | 1 |
| 1 | 710001083 | LH Low Front Housing Includes 709a to 709a1 | 1 |
| 1 | 415129249 | Halogen Bulb Not Shown | 1 |
| 1 | 710001084 | LH Low Rear Housing | 1 |
| 4 | 710001147 | Setting Screw | 4 |
| 1 | 710006353 | LH Low Light Support | 1 |
| 1 | 710002524 | Low Beam Ass'y | 1 |
| 6 | 207142544 | Hex. Screw M4 X 25 | 6 |
| 12 | 234051410 | Flat Washer M5 | 12 |
| 6 | 232541414 | Elastic Stop Nut M4 | 6 |
| 11 | 250000723 | Phillips Screw K40 X 16 | 11 |
| 1 | 705004309 | Painted Headlamp Support | 1 |
| 3 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 3 |
| 1 | 710005944 | Light Harness | 1 |
| 1 | 710001087 | LH High Front Housing | 1 |
| 1 | 710001088 | LH High Rear Housing | 1 |
| 1 | 710005853 | LH High Light Support | 1 |
| 1 | 710002525 | High Beam Ass'y | 1 |
| 1 | 705004508 | LH Front Facia | 1 |
| 1 | 710002524 | Low Beam Ass'y Includes 710 to 710v | 1 |
| 1 | 710002525 | High Beam Ass'y Includes 710 to 710v | 1 |
| 1 | 710001081 | RH Low Front Housing Includes 710a to 710a1 | 1 |
| 1 | 710001082 | RH Low Rear Housing | 1 |
| 1 | 710006354 | RH Low Light Support | 1 |
| 1 | 710001085 | RH High Front Housing | 1 |
| 1 | 710001086 | RH High Rear Housing | 1 |
| 1 | 710005856 | RH High Light Support | 1 |
| 1 | 705004509 | RH Front Facia | 1 |
| 1 | 710001248 | DC Outlet | 1 |
