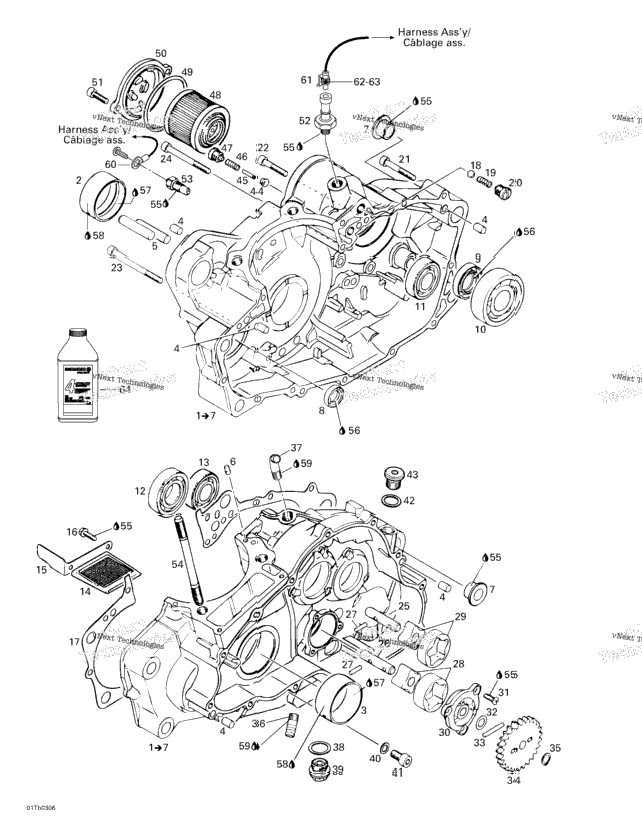

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420296346 | CRANKCASE ASS'Y Includes 1 - 7. | 1 |
| 1 | 420233677 | BUSHING | 1 |
| 420233680 | BUSHING | ||
| 5 | 420632010 | Center Pin 8 X 12 | 5 |
| 2 | 420229301 | Location Pin | 2 |
| 2 | 420929650 | Drive Pin 5 X 10 | 2 |
| 2 | 420247320 | SLEEVE | 2 |
| 8 | 420430550 | OIL SEAL | 8 |
| 1 | 420230395 | OIL SEAL | 1 |
| 1 | 420932826 | Ball Bearing 6305 | 1 |
| 420232501 | BALL BEARING 6303 | ||
| 1 | 420232764 | Ball Bearing 6205 | 1 |
| 1 | 420932815 | Ball Bearing 6303E | 1 |
| 1 | 420256321 | Oil Sieve | 1 |
| 1 | 420256430 | OIL SIEVE GUIDE | 1 |
| 2 | 420941925 | Tapping Screw M5 X 16 | 2 |
| 420250910 | GASKET | ||
| 1 | 420932830 | BALL 8 MM | 1 |
| 1 | 420239280 | SPRING, COMPRESSION | 1 |
| 1 | 420256170 | VALVE PIN SCREW | 1 |
| 420241822 | SOCKET HEAD SCREW M6 X 45 | ||
| 420241810 | Socket Head Screw M6 X 35 | ||
| 420240531 | SOCKET HEAD SCREW M6 X 75 | ||
| 420241262 | SOCKET HEAD SCREW M6 X 65 | ||
| 1 | 420220762 | OIL PUMP SHAFT | 1 |
| 420220760 | Oil Pump Shaft | ||
| 2 | 420232730 | Needle Pin | 2 |
| 1 | 420256680 | Oil Pump Rotor, Suction | 1 |
| 1 | 420256670 | Oil Pump Rotor, Pressure | 1 |
| 420210642 | Oil Pump Cover | ||
| 6 | 420640821 | Torx Screw M5 X 16 | 6 |
| 2 | 420827590 | Thrust Washer | 2 |
| 2 | 420232430 | Needle Pin | 2 |
| 420234560 | Oil Pump Gear, 25 Teeth | ||
| 2 | 420245330 | Snap Ring | 2 |
| 1 | 420256330 | HOSE NIPPLE | 1 |
| 420924245 | ANGLE TUBE | ||
| 1 | 420552280 | Crush Washer | 1 |
| 1 | 420840277 | Drain Plug M18 X 1.5 | 1 |
| 1 | 420950141 | Sealing Ring | 1 |
| 205081660 | Socket Head Screw M8 X 16 | ||
| 1 | 420430622 | O-Ring | 1 |
| 1 | 420240232 | PLUG SCREW M16 X 1.5 | 1 |
| 1 | 420260570 | RETAINING VALVE | 1 |
| 1 | 420256150 | VALVE PIN | 1 |
| 420239810 | SPRING, COMPRESSION | ||
| 1 | 420256188 | Oil Filter | 1 |
| 1 | 420650500 | O-Ring | 1 |
| 1 | 420610230 | OIL FILTER COVER | 1 |
| 2 | 205063044 | Socket Head Screw M6 X 30 | 2 |
| 1 | 420256770 | Oil Pressure Switch | 1 |
| 1 | 420241856 | Position Switch | 1 |
| 4 | 420640470 | STUD M10 X 223 | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 293550014 | Grease, Super Lube #823-28 | 1 |
| XXXX | Not Available As Spare Part - Engine Oil, Mineral, API SJ SAE 10W40 | ||
| 1 | 219704464 | Was 420297616 Klueber Grease, 60g | 1 |
| 293800073 | Loctite 277, 10 ml | ||
| 1 | 710000112 | OPEN BARREL | 1 |
| 1 | 278001012 | Male Housing, 1 Circuit | 1 |
| 1 | 278001014 | Female Terminal | 1 |
| 1 | 278001013 | Wire Seal | 1 |
| 293600039 | ENGINE OIL 4 STROKES, 5W40, 12 X 1 LITER |
