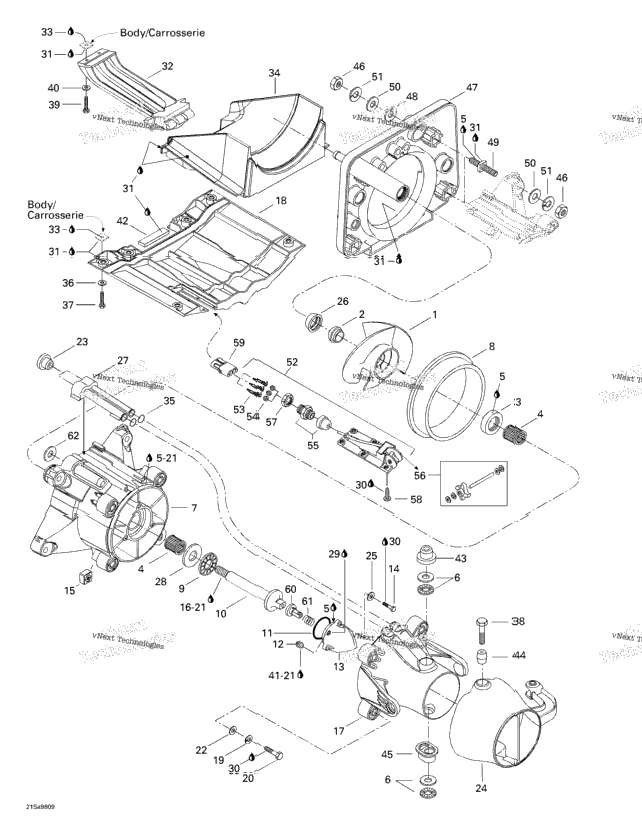

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 271000885 | Stainless Steel Impeller Ass'y | ||
| 1 | 271000516 | Impeller Boot | 1 |
| 1 | 293200025 | Double Lip Seal | 1 |
| 2 | 293350017 | Needle Bearing | 2 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 211200002 | Thrust Washer | ||
| 295500429 | IMPELLER HOUSING ASS'Y | ||
| 1 | 271000290 | Wear Ring | 1 |
| 1 | 293350019 | BEARING THRUST | 1 |
| 1 | 271000291 | Impeller Shaft | 1 |
| 1 | 293300011 | O-Ring | 1 |
| 1 | 211500001 | Pipe Plug Socket Head 1/8-27 Npt . . | 1 |
| 1 | 271000670 | IMPELLER COVER | 1 |
| 3 | 210000009 | Hex. Screw M5 x 20 | 3 |
| 4 | 211100033 | Square Nut M8 | 4 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 271000623 | Venturi Ass'y | ||
| 271000712 | Riding Plate | ||
| 4 | 213000001 | Lock-Washer 8 mm | 4 |
| 215687560 | Hex. Screw M8 x 75 | ||
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 4 | 293050001 | Flat Washer M8.5 x 18 | 4 |
| 293300040 | O-RING | ||
| 271000634 | Steering Nozzle Ass'y | ||
| 3 | 213200004 | Flat Washer 5 mm | 3 |
| 1 | 271000517 | Impeller Ring | 1 |
| 271000366 | WATER OUTLET | ||
| 1 | 293350020 | THRUST WASHER | 1 |
| 293600011 | Redline Pump Oil, 75W90, 12 x 6 oz | ||
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 1 | 293800053 | Sealant Right Stuff 26015, 7 oz | 1 |
| 271000732 | INLET GRATE | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 271000576 | Shoe | ||
| 2 | 293300013 | O-Ring | 2 |
| 6 | 213200002 | Flat Washer 8 mm | 6 |
| 6 | 210000007 | Hexagonal Screw M8 x 30 | 6 |
| 2 | 211000047 | SCREW-SPECIAL M8 | 2 |
| 2 | 210000005 | Hex. Screw M6 x 25 | 2 |
| 2 | 213200001 | Flat Washer 6 mm | 2 |
| 1 | 219704454 | Was 293800013 Loctite 56765 | 1 |
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 1 | 293900001 | Venturi Bushing | 1 |
| 2 | 271000122 | Steering Nozzle Sleeve | 2 |
| 1 | 293900010 | Plastic Bushing | 1 |
| 8 | 212100007 | Elastic Stop Nut M10 | 8 |
| 271000575 | Pump Support | ||
| 1 | 272000053 | Shim, 0.3 mm | 1 |
| 4 | 271000693 | Stud | 4 |
| 6 | 213200003 | Washer 10 mm | 6 |
| 2 | 217002600 | Flat Washer | 2 |
| 8 | 213000003 | Lock Washer 10 mm | 8 |
| 278000970 | Speed Sensor Ass’Y Includes 52 - 57. | ||
| XXXX | Male Terminal | ||
| XXXX | Wire Seal | ||
| 1 | 293710031 | ELECTRIC CONNECTION | 1 |
| 295500108 | Paddle Wheel Kit | ||
| 1 | 293710032 | LOCKING NUT | 1 |
| 216351060 | SCREW-CTSK.OV.HD.PH.DIN.966A-A2 | ||
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 271000898 | Pusher | ||
| 1 | 271000704 | SPRING | 1 |
| 293300046 | O Ring |
