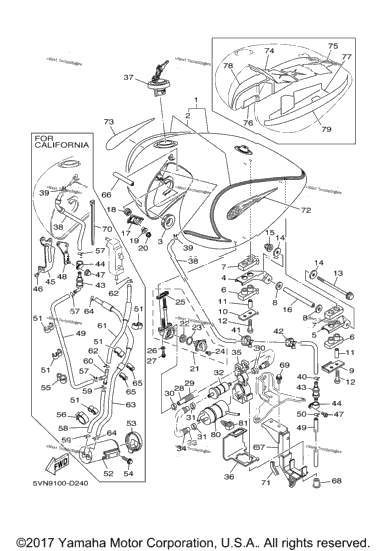

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 90464-10233-00 | Clamp | 1 |
| 4WM-Y2410-T1-04 | Fuel Tank Comp BWC1/SMX FOR BWC1 | ||
| 5GA-24240-80-00 | . .Graphic Set FOR BWC1 | ||
| 2 | 2YK-24181-10-00 | Damper, Locating 1 | 2 |
| 1 | 5MB-24191-00-00 | Bracket, Fuel Tank 1 | 1 |
| 1 | 5MB-24192-00-00 | Bracket, Fuel Tank 2 | 1 |
| 2 | 5MB-24181-00-00 | Damper, Locating 1 | 2 |
| 2 | 5MB-24182-00-00 | Damper, Locating 2 | 2 |
| 2 | 5MB-24183-00-00 | Damper, Locating 3 | 2 |
| 1 | 5MB-24186-00-00 | Washer, Special | 1 |
| 1 | 2GH-24186-00-00 | Washer, Special | 1 |
| 4 | 90387-06062-00 | Collar | 4 |
| 4 | 92017-06035-00 | Bolt, Button Head | 4 |
| 95827-06140-00 | Bolt, Flange | ||
| 2 | 90201-064R0-00 | Washer, Plate | 2 |
| 1 | 90176-06055-00 | Nut, Crown | 1 |
| 1 | 90387-06061-00 | Collar | 1 |
| 2 | 4WM-24291-00-00 | Bracket, Fuel Tank 1 | 2 |
| 4 | 4WM-24339-00-00 | Grommet | 4 |
| 4 | 90387-050T5-00 | Collar | 4 |
| 4 | 95707-05500-00 | Nut, Flange | 4 |
| 1 | 4WM-24500-02-00 | Fuel Cock Assy 1 | 1 |
| 1 | 3AC-24523-00-00 | . .Valve Packing | 1 |
| 1 | 3AJ-24534-01-00 | . Seal, Cock | 1 |
| 2 | 97801-03008-00 | . .Screw, Pan Head | 2 |
| 1 | 4X8-24512-00-00 | . O-Ring | 1 |
| 2 | 90202-05193-00 | Washer, Plate | 2 |
| 2 | 90149-06011-00 | Screw | 2 |
| 1 | 5VN-24311-00-00 | Pipe, Fuel 1 | 1 |
| 4WM-24393-00-00 | Spring | ||
| 2 | 90467-11044-00 | Clip | 2 |
| 2 | 90467-13083-00 | Clip | 2 |
| 1 | 1FK-24560-10-00 | Filter Assy | 1 |
| 1 | 4WM-24312-00-00 | Pipe 2 | 1 |
| 4WM-24394-00-00 | Spring | ||
| 1 | 4WM-24398-00-00 | Band 1 | 1 |
| 1 | 4WM-24217-00-00 | Cover | 1 |
| 1 | 4NK-24602-10-00 | Cap Assy | 1 |
| 5VN-24321-00-00 | Pipe 10 UR 49 | ||
| 1 | 5VN-24321-10-00 | Pipe 10 UR CA | 1 |
| 1 | 90467-09002-00 | Clip | 1 |
| 1 | 90467-09006-00 | Clip | 1 |
| 1 | 90464-25217-00 | Clamp | 1 |
| 1 | 90464-15192-00 | Clamp | 1 |
| 1 | 5PX-24180-00-00 | Roll Over Valve Assy UR 49 | 1 |
| 1 | 5RB-24180-00-00 | Roll Over Valve Assy UR CA | 1 |
| 1 | 90461-15100-00 | Clamp UR 49 | 1 |
| 1 | 90461-15139-00 | Clamp UR CA | 1 |
| 1 | 4WM-2148X-00-00 | Bracket 4 | 1 |
| 2 | 98507-05008-00 | .Screw, Pan Head | 2 |
| 1 | 98907-05012-00 | .Screw, Bind UR 49 | 1 |
| 1 | 90176-05054-00 | Nut, Crown UR CA | 1 |
| 5VN-24662-00-00 | Stay | ||
| 1 | 90445-112K5-00 | Hose (L355) UR 49 | 1 |
| 1 | 5VN-24322-00-00 | Pipe 11 UR CA | 1 |
| 1 | 90467-10041-00 | Clip | 1 |
| 5 | 90464-09M31-00 | Clamp | 5 |
| 1 | 4WM-24170-00-00 | Canister Assy | 1 |
| 1 | 4WM-2419E-00-00 | Cover, Canister | 1 |
| 90105-06597-00 | Bolt, Flange | ||
| 1 | 90464-20191-00 | Clamp | 1 |
| 3 | 90467-09103-00 | Clip | 3 |
| 5VN-24323-00-00 | Pipe 12 | ||
| 2 | 90467-09103-00 | Clip | 2 |
| 1 | 90413-07007-00 | Way 3 | 1 |
| 5VN-24318-00-00 | Pipe, Overflow | ||
| 5VN-24335-00-00 | Pipe, Suction 1 | ||
| 2 | 90464-11201-00 | Clamp | 2 |
| 1 | 4GY-24188-00-00 | Mold, Fuel Tank | 1 |
| 5VN-24491-00-00 | Bracket, Fuel Pump | ||
| 2 | 90179-05271-00 | Nut | 2 |
| 2 | 95807-06016-00 | Bolt, Flange | 2 |
| 1 | 5Y9-12491-00-00 | Clamp 1 | 1 |
| 1 | 5VN-24188-00-00 | Mold, Fuel Tank | 1 |
| 5VN-2416B-20-00 | Emblem | ||
| 5VN-2417B-20-00 | Emblem | ||
| 1 | 5VN-24145-00-00 | Damper, Side Cover UR CA | 1 |
| 1 | 5VR-24145-00-00 | Damper, Side Cover UR 49 | 1 |
| 1 | 5VN-24145-10-00 | Damper, Side Cover UR CA | 1 |
| 1 | 5VR-24145-10-00 | Damper, Side Cover UR 49 | 1 |
| 1 | 5VN-24145-20-00 | Damper, Side Cover UR CA | 1 |
| 1 | 5VR-24145-20-00 | Damper, Side Cover UR 49 | 1 |
| 5VN-24145-30-00 | Damper, Side Cover UR CA | ||
| 1 | 5VR-24145-30-00 | Damper, Side Cover UR 49 | 1 |
| 1 | 5VN-24145-40-00 | Damper, Side Cover UR CA | 1 |
| 1 | 5VR-24145-40-00 | Damper, Side Cover UR 49 | 1 |
| 5VN-24145-50-00 | Damper, Side Cover UR CA | ||
| 1 | 5VR-24145-50-00 | Damper, Side Cover UR 49 | 1 |
| 1 | 5VN-13907-00-00 | Fuel Pump Comp | 1 |
| 1 | 90464-13249-00 | Clamp | 1 |
