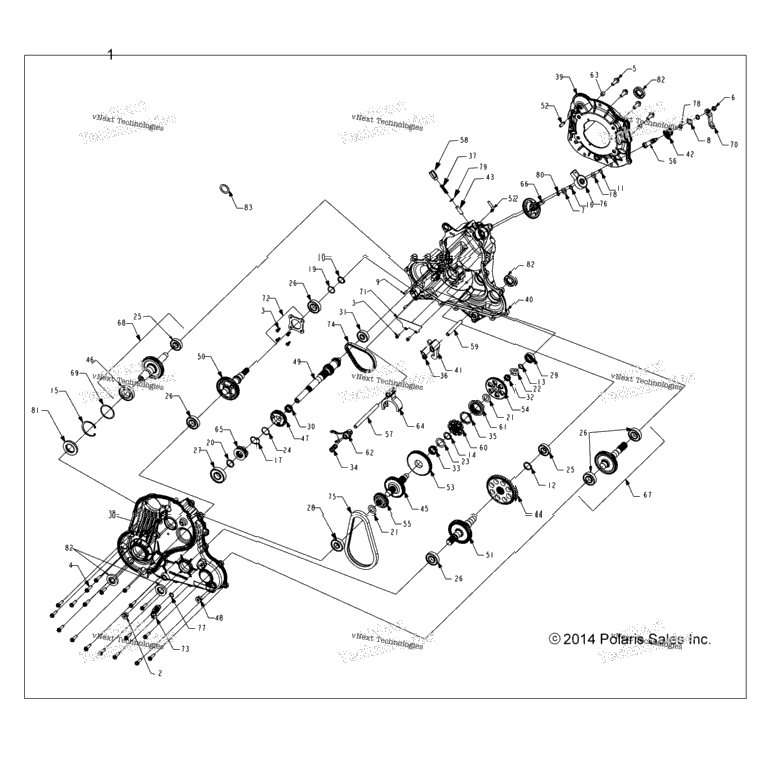

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 1333180 | ASM-TRANS 850,BOSS/LUK,1/1 [INCL. ALL LESS 7,19] | 1 |
| 1 | 3234756 | SOCKET HEAD W/ MAG PLUG 18 MM X | 1 |
| 2 | 3234309 | SCREW, TORX PAN HD M6 X 1 X 16 | 2 |
| 19 | 3234898 | HEX HEAD FLANGE SCREW 8MMX1.25M | 19 |
| 4 | 3234634 | SCREW, HEX | 4 |
| 1 | 3233961 | NUT-LOCK HEX FLANGE NYLON 5/16 | 1 |
| 1 | 3234636 | WASHER THRUST | 1 |
| 1 | 3234637 | THRUST WASHER | 1 |
| 2 | 3234330 | PIN, DOWEL, 6 X 20 | 2 |
| 1 | 3233106 | SNAP RING | 1 |
| 1 | 3233834 | RETAINING RING | 1 |
| 1 | 3233699 | RING-RETAINING | 1 |
| 1 | 3234318 | EXTERNAL RETAINING RING | 1 |
| 1 | 3234327 | RING, RETAINING BASIC, EXTERNA | 1 |
| 1 | 3234741 | INTERNAL RETAINING RING | 1 |
| 1 | 3234639 | RING,RETAINNG BC,EXTRNL SHR-50 | 1 |
| 1 | 3234641 | EXTERNAL RETAINING RING | 1 |
| 1 | 3234642 | THRUST WASHER, .446 X .88 X .02 | 1 |
| 1 | 2204343 | INPUT SHAFT SHIM PACK KIT | 1 |
| 1 | 3234248 | THRUST WASHER, 1.300 X .995 X . | 1 |
| 2 | 3234643 | SHIM | 2 |
| 1 | 3234644 | SHIM | 1 |
| 1 | 3234646 | WASHER, THRUST | 1 |
| 1 | 3234757 | WASHER, THRUST | 1 |
| 2 | 3233018 | BEARING | 2 |
| 5 | 3233019 | BEARING | 5 |
| 1 | 3233020 | BEARING | 1 |
| 1 | 3234651 | BALL BEARING | 1 |
| 1 | 3234274 | BEARING, BALL, 17 X 40 X 12 | 1 |
| 1 | 3234759 | NEEDLE BEARING | 1 |
| 1 | 3234652 | BALL BEARING | 1 |
| 1 | 3234655 | BEARING, NEEDLE | 1 |
| 1 | 3234656 | NEEDLE BEARING | 1 |
| 1 | 3234687 | SPRNG, COMP, .648 OD X 1.33 | 1 |
| 1 | 3234688 | SPRING, WAVE | 1 |
| 1 | 3234787 | PARK PAWL TORSION SPRING | 1 |
| 1 | 3234790 | COMPRESSION SPRING | 1 |
| 1 | 3235507 | COVER-GEARCASE,MACH GTO | 1 |
| 1 | 3235196 | BELL HOUSING-MACH | 1 |
| 1 | 3235428 | GEARCASE-MAIN GTO MACH | 1 |
| 1 | 3234692 | PAWL,PARK | 1 |
| 1 | 3234694 | GEAR, SECTOR 38T | 1 |
| 1 | 3234695 | DETENT BULLET | 1 |
| 1 | 3234998 | SPROCKET, 44 TOOTH | 1 |
| 1 | 3234774 | REVERSE SHAFT, 53 TOOTH | 1 |
| 1 | 3233265 | BALL BEARING | 1 |
| 1 | 3235133 | HELICAL GEAR, 42T | 1 |
| 1 | 3234755 | PLUG, M18 X 1.5 | 1 |
| 1 | 3235063 | INPUT SHAFT, 25 TOOTH | 1 |
| 1 | 3235194 | INPUT SHAFT | 1 |
| 1 | 3235505 | OUTPUT SHAFT, REAR | 1 |
| 2 | 3234230 | TUBE-VENT,90-1/4 HOSE | 2 |
| 1 | 3234706 | GEAR, 67T | 1 |
| 1 | 3234707 | SPROCKET, 48 TOOTH | 1 |
| 1 | 3234708 | SPROCKET, 23 TOOTH | 1 |
| 1 | 3234712 | BELLCRANK, SHIFT, SHAFT | 1 |
| 1 | 3234714 | RAIL, SHIFT, SHAFT | 1 |
| 1 | 3234715 | DETENT PLUG | 1 |
| 1 | 3234716 | RAIL, PARK SHAFT | 1 |
| 1 | 3234718 | DOG, ENGAGEMENT, LOW | 1 |
| 1 | 3235341 | DOG-ENGAGEMENT,GTO,REV/LOW | 1 |
| 1 | 3235342 | SHIFT FORK | 1 |
| 2 | 3234765 | PIPE, KNOCK | 2 |
| 1 | 3234766 | SHIFT FORK | 1 |
| 1 | 3235190 | DOG-ENGAGEMENT GTO HIGH | 1 |
| 1 | 3234767 | SWITCH SHAFT SUBASSEMBLY | 1 |
| 1 | 3235506 | OUTPUT SHAFT SUBASSEMBLY, FRONT | 1 |
| 1 | 3235191 | PRIMARY SHAFT SUB ASSEMBY, 50 T | 1 |
| 1 | 2204268 | SHIM KIT | 1 |
| 1 | 3234724 | BELLCRANK, 15 TOOTH SPLINE | 1 |
| 1 | 3234725 | DEFLECTOR, OIL | 1 |
| 1 | 3235198 | SUB ASSSEMBLY, BEARING COVER | 1 |
| 1 | 4012167 | K-SPEED SENSOR | 1 |
| 1 | 3234737 | SILENT CHAIN | 1 |
| 1 | 3234738 | SILENT CHAIN | 1 |
| 1 | 3233835 | ROTARY SWITCH, 6 PIN | 1 |
| 1 | 3234302 | O-RING | 1 |
| 1 | 3233828 | O-RING | 1 |
| 1 | 3234729 | O-RING | 1 |
| 1 | 3234730 | O-RING, 9.5 MM X 2 MM | 1 |
| 1 | 3234769 | TRIPLE LIP SEAL | 1 |
| 4 | 3234892 | VITON TRIPLE LIP SEAL | 4 |
| 1 | 3235508 | RIBBED WASHER | 1 |
