Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

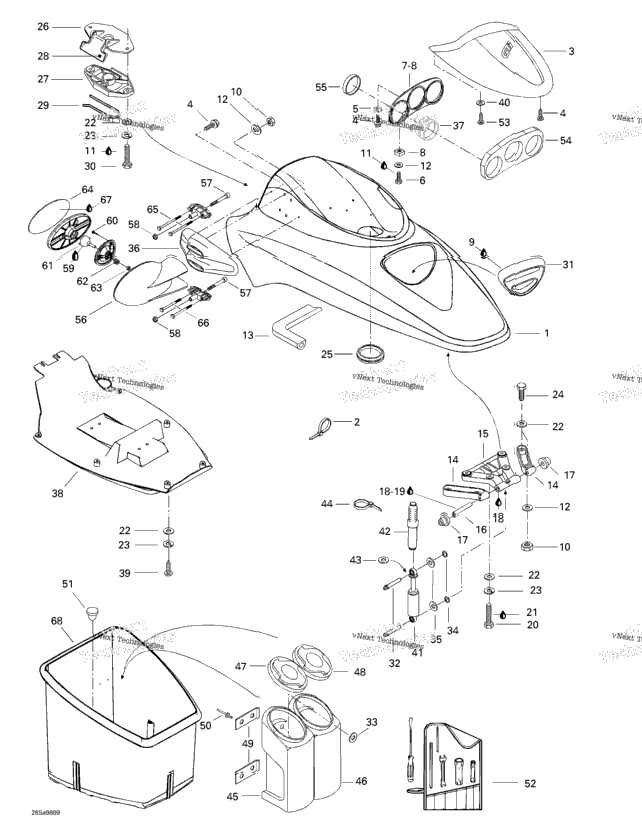

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269500497 | Storage Cover Upper | ||
| 3 | 293750002 | Tie Wrap 142 mm | 3 |
| 269500545 | Deflector | ||
| 7 | 211000033 | Screw K40 x 16 | 7 |
| 2 | 217041600 | Washer 4 mm | 2 |
| 2 | 210000004 | Hex. Screw M6 x 20 | 2 |
| 269500355 | Dash Board Includes 7 - 8. | ||
| 2 | 269500252 | M6 Nut Housing Ass'y | 2 |
| 293530011 | SEALANT, SIKAFLEX BLACK # 221 | ||
| 14 | 212000001 | Elastic Stop Nut M6 | 14 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 14 | 213200007 | Washer 6 mm | 14 |
| 1 | 219704371 | Was 293250047 Neoprene Seal ( 3 M/pac ) | 1 |
| 269700022111 | RH HINGE | ||
| 269700023111 | LH Hinge | ||
| 1 | 269700038 | COVER HINGE | 1 |
| 269700024 | AXLE | ||
| 293350016 | CUSHION | ||
| 1 | 293800054 | Loctite 648, 50 ml | 1 |
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 4 | 210000004 | Hex. Screw M6 x 20 | 4 |
| 12 | 213200001 | Flat Washer 6 mm | 12 |
| 8 | 217361500 | Washer Lock 6 | 8 |
| 4 | 215663560 | Hex. Screw M6 x 35 | 4 |
| 570276900 | Rubber Ring | ||
| 1 | 269700020 | Latch Cover | 1 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 269000016 | Latch Lever | 1 |
| 269700017 | Latch Spring | ||
| 2 | 210000005 | Hex. Screw M6 x 25 | 2 |
| 269500525 | Grill Intake | ||
| 2 | 211400006 | SHORT PIN | 2 |
| 4 | 213200018 | Washer 3 mm | 4 |
| 2 | 293370008 | CIRCLIP | 2 |
| 2 | 213200002 | Flat Washer 8 mm | 2 |
| 269500499 | LH Support-Mirror | ||
| 269500503 | RH Support-Mirror | ||
| 293720047 | Gauge Support | ||
| 269500571 | Storage Cover Lower | ||
| 215861668 | SCREW-PAN HD.PH.DIN.7985A-A2 | ||
| 211200007 | Flat Washer | ||
| 1 | 269500261 | Gas Shock Ass'y Includes 41 - 44. | 1 |
| 291000919 | BELLOW | ||
| 211200034 | Washer | ||
| 2 | 293750001 | Tie Wrap 94 mm | 2 |
| 1 | 269500151 | Extinguisher Storage Housing | 1 |
| 1 | 269500180 | Storage Housing | 1 |
| 1 | 269500236 | Extinguisher Storage Housing Cap | 1 |
| 269500237 | Storage Housing Cap | ||
| 4 | 293250037 | GASKET | 4 |
| 4 | 293150032 | Pop Rivet 1/8" | 4 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 295000066 | Tool Kit | ||
| 2 | 211000098 | Screw | 2 |
| 269500322 | Support | ||
| 293000068 | Gauge Cap | ||
| 269500506 | Mirror LH Ass'y Includes 56 - 67. | ||
| 269500505 | Mirror RH Ass'y | ||
| 215987560 | Screw Allen M8 x 75 | ||
| 4 | 212000002 | Elastic Stop Nut M8 | 4 |
| 293550010 | Synthetic Grease, 400 G | ||
| 6 | 211000033 | Screw K40 x 16 | 6 |
| 269500079 | MIRROR BALL JOINT | ||
| 2 | 269500453 | Mirror Spring | 2 |
| 2 | 212000001 | Elastic Stop Nut M6 | 2 |
| 2 | 269500454 | MIRROR | 2 |
| 4 | 215668060 | Hex. Screw M6 x 80 | 4 |
| 4 | 215667060 | Hex. Screw M6 x 70 | 4 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 269500269 | Storage Tray |
