Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

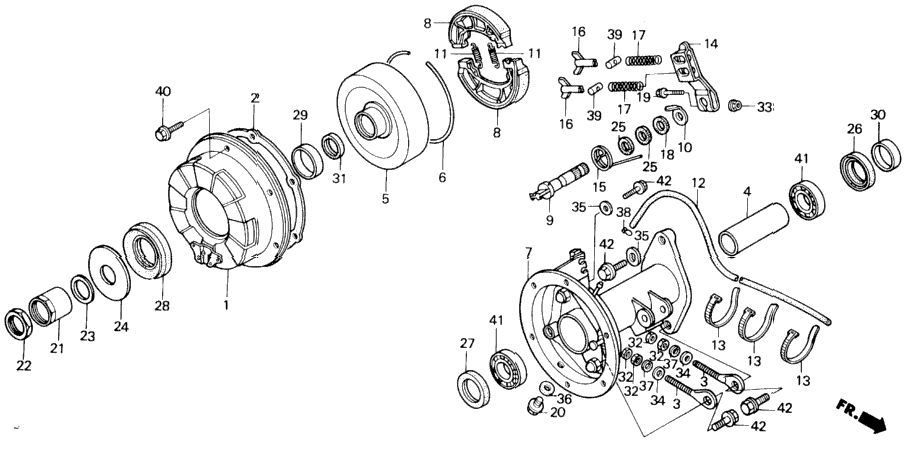

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 06430-HF1-911 | SHOE KIT, BRAKE | 1 |
| 1 | 06430-HF7-A30 | SHOE SET, BRAKE (JB) | 1 |
| 1 | 06430-HF7-J20 | SHOE SET, BRAKE | 1 |
| 1 | 06430-HF7-000 | SHOE SET, BRAKE (ASK) | 1 |
| 1 | 06430-968-405 | SHOE KIT, BRAKE | 1 |
| 1 | 431A2-968-681 | SHOE KIT, BRAKE | 1 |
| 40532-HB3-000 | COVER, BRAKE DRUM | ||
| 40539-968-000 | GASKET, BRAKE COVER | ||
| 2 | 40543-HB3-000 | ADJUSTER, CHAIN | 2 |
| 42621-HB3-000 | COLLAR, RR. AXLE CENTER | ||
| 42622-HB3-000 | DRUM, RR. BRAKE | ||
| 42622-HF1-670 | DRUM, RR. BRAKE | ||
| 1 | 42624-HB3-000 | RING, DAMPER | 1 |
| 43100-HB3-000 | HOLDER, BEARING & BRAKE | ||
| 2 | 43120-968-682 | (SEE KIT P/N--END OF BLOCK) | 2 |
| 2 | 45120-303-690 | SHOE, FR. BRAKE | 2 |
| 2 | 06430-HF7-A30 | SHOE SET, BRAKE (JB) | 2 |
| 2 | 43120-968-681 | SHOE, RR. BRAKE (ASK) | 2 |
| 43141-HB3-000 | CAM, RR. BRAKE | ||
| 1 | 43145-HB3-000 | INDICATOR, RR. BRAKE | 1 |
| 2 | 43151-329-000 | SPRING, BRAKE SHOE | 2 |
| 43155-HB3-000 | TUBE, BRAKE BREATHER | ||
| 43156-HB3-000 | BAND, CABLE | ||
| 43410-HB3-770 | ARM, RR. BRAKE | ||
| 43413-HB3-000 | SPRING, RR. BRAKE ARM RETURN | ||
| 2 | 43459-HM5-A10 | NUT, BRAKE ADJUSTING | 2 |
| 2 | 43459-VM4-000 | NUT, BRAKE ADJUSTING | 2 |
| 43467-HA0-000 | SPRING, RR. BRAKE ROD (NA USE ALT:95014-73100) | ||
| 1 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 |
| 1 | 90007-PA9-000 | BOLT, FLANGE (6X30) | 1 |
| 1 | 95701-06030-08 | BOLT, FLANGE (6X30) | 1 |
| 1 | 90131-883-000 | BOLT, DRAIN PLUG (12X15) | 1 |
| 1 | 90131-896-650 | BOLT, DRAIN PLUG (12X15) | 1 |
| 90307-HB3-000 | NUT, RR. AXLE | ||
| 90307-968-000 | NUT, RR. AXLE | ||
| 1 | 90481-HC4-000 | WASHER, TAPER | 1 |
| 1 | 90481-958-000 | WASHER, TAPER (32MM) | 1 |
| 1 | 90501-HB3-000 | WASHER (32X86X1.5) | 1 |
| 2 | 91208-611-005 | DUST SEAL (14X20X4) (NOK) | 2 |
| 1 | 91251-HB3-003 | DUST SEAL (50.5X62X9) | 1 |
| 1 | 91252-HB3-003 | DUST SEAL B (44X62X9) | 1 |
| 1 | 91252-HM5-630 | DUST SEAL B (44X62X9) | 1 |
| 91253-HB3-003 | DUST SEAL (50.5X76X19) | ||
| 91265-HB3-003 | COLLAR, DUST SEAL (A) | ||
| 91266-HB3-003 | COLLAR, DUST SEAL (B) | ||
| 1 | 91351-HB3-004 | RING, SEAL | 1 |
| 4 | 94001-08000-0S | NUT, HEX. (8MM) | 4 |
| 4 | 94001-08080-0S | NUT, HEX. (8MM) | 4 |
| 4 | 94001-08080-05 | NUT, HEX. (8MM) | 4 |
| 4 | 94001-08200-0S | NUT, HEX. (8MM) | 4 |
| 1 | 94050-06000 | NUT, FLANGE (6MM) | 1 |
| 2 | Q14-0000-209 | WASHER, FLAT (8MM) | 2 |
| 2 | 94101-08800 | WASHER, PLAIN (8MM) | 2 |
| 2 | 94101-12800 | WASHER, PLAIN (12MM) | 2 |
| 1 | 94109-12000 | WASHER, DRAIN PLUG (12MM) | 1 |
| 2 | 94111-08800 | WASHER, SPRING (8MM) | 2 |
| 1 | 95002-02650 | CLIP, TUBE (B6.5) | 1 |
| 2 | 95015-32001 | JOINT B, BRAKE ARM | 2 |
| 6 | 95700-06012-08 | BOLT, FLANGE (6X12) | 6 |
| 6 | 95701-06012-08 | BOLT, FLANGE (6X12) | 6 |
| 2 | 91052-HB3-771 | BEARING, RADIAL BALL (6007) | 2 |
| 4 | 95700-12025-08 | BOLT, FLANGE (12X25) | 4 |
| 4 | 95701-12025-08 | BOLT, FLANGE (12X25) | 4 |
| 4 | 95900-12025-08 | BOLT, FLANGE (12X25) | 4 |
| 4 | 96400-12025-08 | BOLT, FLANGE (12X25) | 4 |
