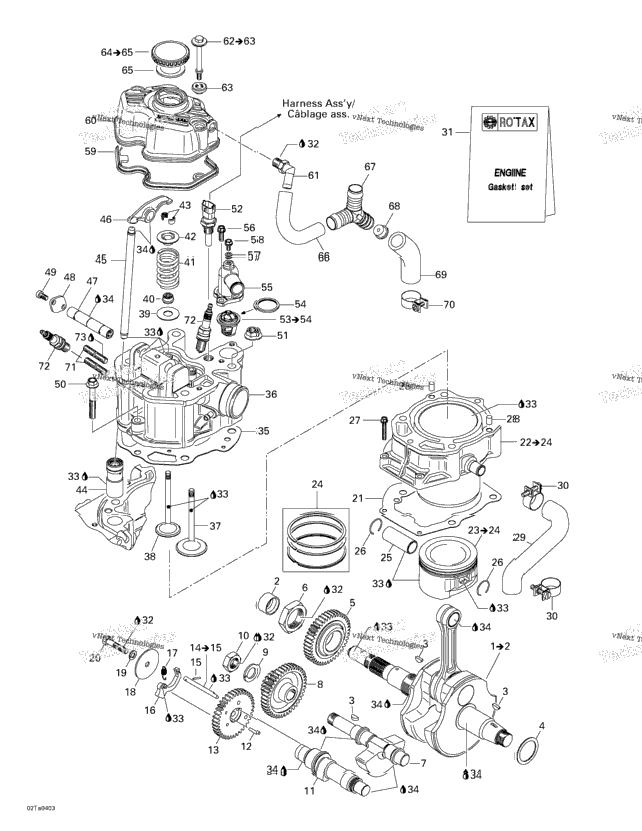

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420295893 | CRANKSHAFT ASS'Y Includes 1 - 2. | 1 |
| 420247070 | SPACER | ||
| 3 | 420246570 | Woodruff Key 4 X 5 | 3 |
| 1 | 420427505 | WASHER-ADJUSTING DIN.988 | 1 |
| 420427506 | Adjusting Washer 35 X 45 X 1.5 | ||
| 1 | 420427507 | WASHER-ADJUSTING DIN.988 | 1 |
| 1 | 420635011 | MATING GEAR, 42 TEETH | 1 |
| 420842605 | HEX. NUT M34 | ||
| 420220470 | Balance Shaft | ||
| 1 | 420635100 | BALANCING GEAR DOUBLE | 1 |
| 290945757 | Lock Washer 18 mm | ||
| 1 | 420942220 | HEX. NUT M18 | 1 |
| 1 | 420220462 | CAM SHAFT | 1 |
| 1 | 420232420 | Needle Pin | 1 |
| 1 | 420634956 | CAM SHAFT GEAR, 38 TEETH | 1 |
| 420220615 | DEKO SHAFT ASS'Y Includes 14 - 15. | ||
| XXXX | Not Available As Spare Part - Groove Pin | ||
| 420231050 | Centrifugal Weight | ||
| 1 | 420239570 | TENSION SPRING | 1 |
| 1 | 420244260 | RONDELLE | 1 |
| 1 | 420945752 | Lock Washer 8 mm | 1 |
| 1 | 207084044 | Hex. Screw M8 X 40 | 1 |
| 420650430 | CYLINDER GASKET | ||
| 420613177 | CYLINDER/PISTON Includes 22 - 24. | ||
| 420296110 | Piston 89 mm And Ring Set Includes 23 - 24. | ||
| 420296114 | Piston Ring Set | ||
| 1 | 420216225 | Piston Pin | 1 |
| 2 | 420245431 | CIRCLIP 22 MM | 2 |
| 3 | 420941126 | HEX. FLANGED SCREW M6 X 35 | 3 |
| 2 | 420632010 | Center Pin 8 X 12 | 2 |
| 1 | 420222285 | WATER COOLING HOSE | 1 |
| 420951760 | Clamp | ||
| 420296372 | Engine Gasket Set | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 293600039 | ENGINE OIL 4 STROKES, 5W40, 12 X 1 LITER | ||
| 1 | 420899271 | Petamo Grease, GHY133N, 400 g | 1 |
| 420650446 | CYLINDER HEAD GASKET | ||
| 1 | 420613375 | CYLINDER HEAD | 1 |
| 420254050 | Inlet Valve 42 mm | ||
| 1 | 420254062 | INLET VALVE 34 MM | 1 |
| 2 | 420227980 | THRUST WASHER | 2 |
| 420230810 | Valve Seal | ||
| 2 | 420239500 | VALVE SPRING | 2 |
| 420254100 | VALVE SPRING RETAINER | ||
| 4 | 420253090 | VALVE COTTER | 4 |
| 2 | 420854094 | Hydraulic Valve Tappet | 2 |
| 420854575 | PUSH ROD | ||
| 420254083 | Rocker Arm | ||
| 1 | 420254110 | ROCKER ARM SHAFT | 1 |
| 420244250 | HOLDING STRIP | ||
| 2 | 420241681 | SOCKET HEAD SCREW M6 X 10 | 2 |
| 420240326 | Hex. Flange Screw M8 X 53.5 | ||
| 4 | 233101414 | Hex. Flange Nut M10 | 4 |
| 1 | 420222425 | Temperature Sensor | 1 |
| 1 | 420222495 | Thermostat Includes 53 - 54. | 1 |
| 1 | 420650300 | Thermostat Gasket | 1 |
| 420222560 | Thermostat Cover | ||
| 420241751 | Hex. Flange Screw M6 X 16 | ||
| 1 | 404146600 | Sealing Washer | 1 |
| 420650450 | Gasket, Valve Cover | ||
| 1 | 420211835 | VALVE COVER | 1 |
| 1 | 420922245 | Angular Tube | 1 |
| 2 | 420240906 | DISTANCE SCREW M6 X 47.9 Includes 62 - 63. | 2 |
| 420260050 | Rubber Bushing | ||
| 420974644 | BAYONET FILLER CAP Includes 64 - 65. | ||
| 420650990 | Gasket Ring | ||
| 420222610 | Formed Hose | ||
| 420874380 | Y-Fitting | ||
| 1 | 420222590 | FITTING | 1 |
| 420222600 | Formed Hose | ||
| 2 | 420940366 | STUD M8 X 23 | 2 |
| 2 | 707000008 | Spark Plug NGK DR8EA | 2 |
| 1 | 413711400 | Loctite 648, 10 ml | 1 |
