Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

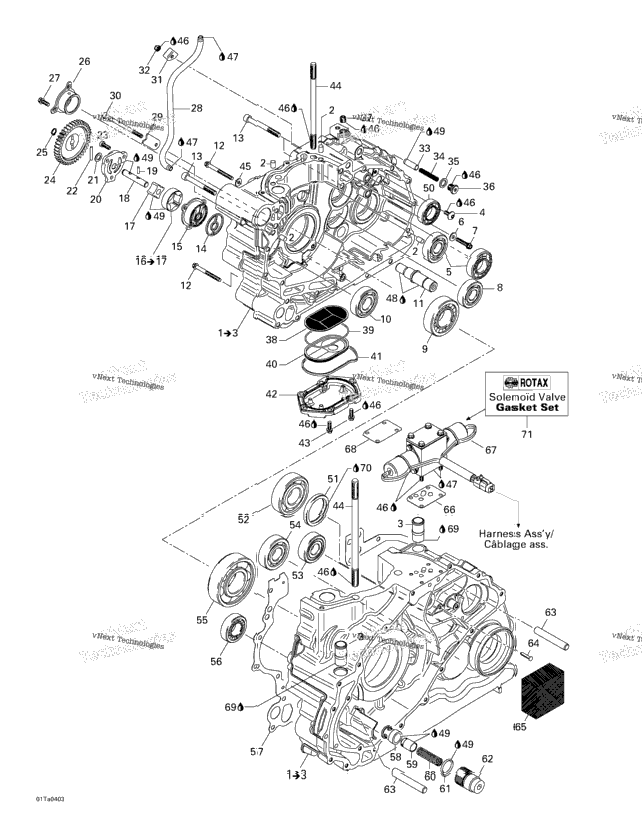

| 420295881 | Crankcase Ass‘Y Includes 1 - 3. | ||
| 4 | 290632010 | Pin M8 X 12 | 4 |
| 2 | 420224260 | TUBE | 2 |
| 1 | 420241531 | SCREW M6 X 13 | 1 |
| 2 | 420232764 | Ball Bearing 6205 | 2 |
| 1 | 420627400 | Washer | 1 |
| 1 | 420241941 | HEX. FLANGED SCREW M6 X 30 | 1 |
| 420932095 | Ball Bearing 6304E | ||
| 1 | 420232490 | ROLLER BEARING | 1 |
| 420632200 | BALL BEARING 63/22 | ||
| 1 | 420220570 | INTERMEDIATE GEAR SHAFT | 1 |
| 420640351 | Hex. Flange Screw M6 X 65 | ||
| 3 | 420841991 | SOCKET HEAD SCREW M8 X 70 | 3 |
| 1 | 420650960 | RUBBER RING | 1 |
| 420610140 | Ring Housing | ||
| 420956275 | OIL PUMP ROTOR ASS'Y Includes 16 - 17. | ||
| XXXX | Not Available As Spare Part - Inner Rotor | ||
| 420220592 | Oil Pump Shaft | ||
| 1 | 420232730 | Needle Pin | 1 |
| 420211852 | OIL PUMP COVER | ||
| 1 | 420827590 | Thrust Washer | 1 |
| 1 | 420232970 | Needle Pin | 1 |
| 3 | 420240400 | Socket Head Screw M6 X 20 | 3 |
| 420635030 | Oil Pump Gear, 40 Teeth | ||
| 1 | 420245330 | Snap Ring | 1 |
| 420610130 | Ring Housing | ||
| 420241751 | Hex. Flange Screw M6 X 16 | ||
| 420224622 | Oil Pipe | ||
| 420627437 | Holding Strip | ||
| 420241481 | Socket Head Screw M6 X 90 | ||
| 420627432 | Holding Strip | ||
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 420256590 | PISTON | ||
| 1 | 420238020 | COMPRESSION SPRING | 1 |
| 1 | 420250015 | Washer, Copper | 1 |
| 1 | 420241700 | Plug Screw M12 X 1.5 | 1 |
| 1 | 420840651 | PLUG SCREW M12 X 1.5 | 1 |
| 1 | 420256572 | OIL SIEVE | 1 |
| 1 | 420931385 | O-RING | 1 |
| 1 | 420256652 | OIL COLLECTOR | 1 |
| 420650950 | RUBBER RING | ||
| 420211941 | Oil Sieve Cover | ||
| 420241861 | HEX. FLANGED SCREW M6 X 20 | ||
| 4 | 420241670 | STUD M10 X 190 | 4 |
| 1 | 420230150 | Oil Seal | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 420297433 | Molykote G-N, 50 g | 1 |
| 293600039 | ENGINE OIL 4 STROKES, 5W40, 12 X 1 LITER | ||
| 420932650 | Bearing_Ball | ||
| 420650700 | OIL SEAL | ||
| 1 | 420932825 | Ball Bearing | 1 |
| 1 | 420932815 | Ball Bearing 6303E | 1 |
| 290932095 | Ball Bearing 6304E | ||
| 420432120 | BALL BEARING | ||
| 420232280 | ROLLER BEARING | ||
| 420650422 | GASKET, CRANKCASE | ||
| 1 | 420256602 | SEAT VALVE SLEEVE | 1 |
| 1 | 420256630 | Piston Valve | 1 |
| 1 | 420938785 | COMPRESSION SPRING | 1 |
| 1 | 420250050 | O-Ring | 1 |
| 420640790 | Plug Screw M24 X 1.5 | ||
| 2 | 420229470 | Cylindrical Pin M10 X 65 | 2 |
| 420229170 | Groove Pin M4 X 20 | ||
| 1 | 420256720 | OIL SEPARATING FOAM | 1 |
| 1 | 420650630 | SOLENOID VALVE GASKET | 1 |
| 420256540 | Solenoïd Valve | ||
| 1 | 420650635 | Gasket | 1 |
| 1 | 413711400 | Loctite 648, 10 ml | 1 |
| 1 | 293550030 | Grease, Super Lube | 1 |
| 420296375 | SOLENOID VALVE GASKET SET |
