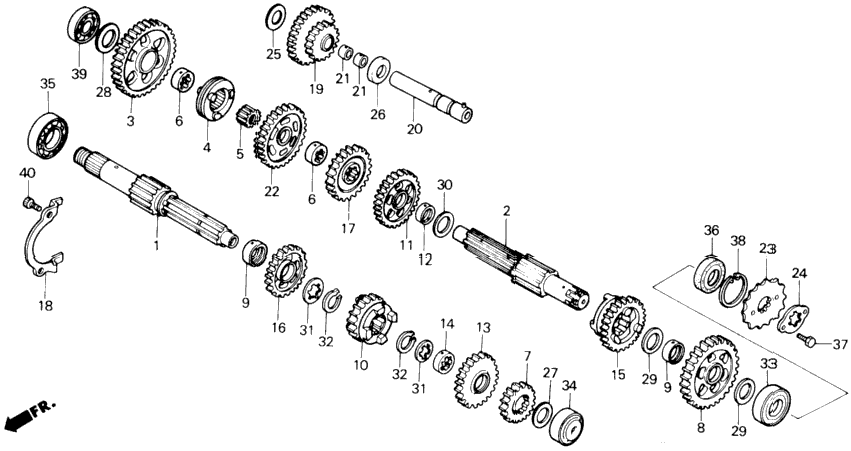

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 23211-HC0-000 | MAINSHAFT, TRANSMISSION | ||
| 23220-HC0-000 | COUNTERSHAFT, TRANSMISSION | ||
| 1 | 23411-HC0-000 | GEAR, COUNTERSHAFT LOW (48T) | 1 |
| 1 | 23411-HC0-670 | GEAR, COUNTERSHAFT LOW (48T) | 1 |
| 1 | 23412-HC0-000 | SHIFTER, REVERSE COUNTERSHAFT LOW GEAR | 1 |
| 23413-HC0-000 | COLLAR, SPLINE | ||
| 2 | 23414-HC0-000 | BUSH, COUNTERSHAFT LOW GEAR & REVERSE GEAR | 2 |
| 23421-HC0-000 | GEAR, MAINSHAFT SECOND (17T) | ||
| 23431-HC0-000 | GEAR, COUNTERSHAFT SECOND (43T) | ||
| 23431-HC0-670 | GEAR, COUNTERSHAFT SECOND (43T) | ||
| 2 | 23432-HC0-000 | BUSH, COUNTERSHAFT SECOND & MAINSHAFT FIFTH | 2 |
| 23441-HC0-010 | GEAR, MAINSHAFT THIRD (21T) | ||
| 23451-HC0-000 | GEAR, COUNTERSHAFT THIRD (39T) | ||
| 1 | 23452-HC0-000 | BUSH, COUNTERSHAFT THIRD | 1 |
| 23461-HC0-010 | GEAR, MAINSHAFT FOURTH (24T) | ||
| 23462-HC0-000 | BUSH, MAINSHAFT FOURTH SPLINE | ||
| 23471-HC0-000 | GEAR, COUNTERSHAFT FOURTH (35T) | ||
| 1 | 23481-HC0-000 | GEAR, MAINSHAFT FIFTH (28T) | 1 |
| 23491-HC0-000 | GEAR, COUNTERSHAFT FIFTH (33T) | ||
| 1 | 23521-HA0-000 | PLATE, BEARING SETTING | 1 |
| 23720-HC0-010 | GEAR, REVERSE IDLE (20T/33T) | ||
| 23730-HA7-771 | SHAFT, REVERSE IDLE | ||
| 23732-HA0-000 | BUSH, REVERSE IDLE GEAR | ||
| 23751-HC0-000 | GEAR, COUNTER REVERSE (32T) | ||
| 1 | 23801-HB5-000 | SPROCKET, DRIVE (13T) | 1 |
| 1 | 23811-HA5-670 | PLATE, FIXING | 1 |
| 1 | 90402-HA0-000 | WASHER, THRUST (14MM) | 1 |
| 1 | 90412-HA0-000 | WASHER, PLAIN (14MM) | 1 |
| 1 | 90446-357-000 | WASHER, THRUST (17.2MM) | 1 |
| 90451-HC0-000 | WASHER, THRUST (17MM) | ||
| 90584-759-000 | WASHER, THRUST (17X31X2) | ||
| 2 | 90452-357-000 | WASHER, THRUST (22MM) | 2 |
| 1 | 90456-MA6-000 | WASHER, THRUST (25MM) | 1 |
| 2 | 90464-444-000 | WASHER, SPLINE (22MM) | 2 |
| 2 | 90601-329-000 | CIRCLIP (22MM) | 2 |
| 91001-HC0-003 | BEARING, RADIAL BALL (63/22U) (KOYO) | ||
| 91001-HC0-004 | BEARING, RADIAL BALL (63/22U) (TOYO) | ||
| 1 | 91004-HC0-003 | BEARING, RADIAL BALL (6203) | 1 |
| 1 | 91005-KF0-008 | BEARING, RADIAL BALL (62/22) | 1 |
| 1 | 91005-KS4-003 | BEARING, RADIAL BALL (62/22) | 1 |
| 1 | 91206-HB3-003 | OIL SEAL (22X36X6) | 1 |
| 2 | 92000-06010 | BOLT, HEX. (6X10) | 2 |
| 2 | 92101-06010-0A | BOLT, HEX. (6X10) | 2 |
| 1 | 94520-36000 | CIRCLIP (INNER) (36) | 1 |
| 1 | 96100-62030-00 | BEARING, RADIAL BALL (6203) | 1 |
| 2 | 96600-06016-10 | BOLT, SOCKET (6X16) | 2 |
| 2 | 96700-06016-10 | BOLT, SOCKET (6X16) | 2 |
