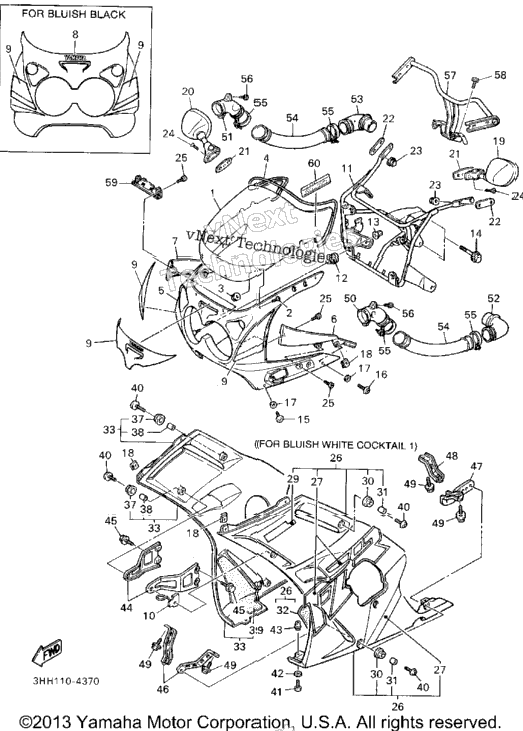

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 3HH-28381-10-00 | Windshield | ||
| 6 | 90150-05020-00 | Screw, Round Head | 6 |
| 6 | 95707-05500-00 | Nut, Flange | 6 |
| 1 | 36Y-28348-00-00 | Mole 4 | 1 |
| 3HE-2835G-00-MW | Body, Front Upper 1 UR BLUISH BLACK | ||
| 3HE-2835G-00-P1 | Body, Front Upper 1 UR BLUISH WHITE COCKTAIL 1 | ||
| 3EN-2835U-00-00 | Panel 1 UR FOR BWC1 | ||
| 3EN-2835U-20-00 | Panel 1 UR FOR BIB | ||
| 3EN-2835V-00-00 | Panel 2 UR FOR BWC1 | ||
| 3EN-2835V-20-00 | Panel 2 UR FOR BIB | ||
| 1 | 99236-00080-00 | Emblem, Yamaha UR FOR BIB | 1 |
| 3HH-28390-61-00 | Graphic Set, Cowling UR FOR BWC1 | ||
| 3HH-28390-70-00 | Graphic Set, Cowling UR FOR BIB | ||
| 3HE-21596-00-00 | Holder | ||
| 3HE-28356-30-00 | Stay 1 | ||
| 4 | 90480-14229-00 | Grommet | 4 |
| 4 | 90179-06500-00 | Nut | 4 |
| 2 | 90105-08652-00 | Bolt, Washer Based | 2 |
| 2 | 90110-05201-00 | Bolt, Hexagon Socket Head | 2 |
| 2 | 90149-05299-00 | Screw | 2 |
| 4 | 90202-05180-00 | Washer, Plate | 4 |
| 4 | 90183-05024-00 | Nut, Spring | 4 |
| 1 | 3HE-26280-00-00 | Rear View Mirror Assembly (Left UR WHITE | 1 |
| 3HE-26280-10-00 | Rear View Mirror Assembly (Left UR BLACK | ||
| 1 | 3HE-26290-00-00 | Rear View Mirror Assembly (Righ UR WHITE | 1 |
| 3HE-26290-10-00 | Rear View Mirror Assembly (Righ UR BLACK | ||
| 2 | 1AE-26298-00-00 | Plate, Mirror Fitting 1 | 2 |
| 2 | 3CV-26298-00-00 | Plate, Mirror Fitting 1 | 2 |
| 4 | 90176-06055-00 | Nut, Crown | 4 |
| 4 | 98706-06025-00 | Screw, Flat Head | 4 |
| 6 | 97706-50014-00 | Inactive Part Number | 6 |
| 3EN-Y283J-0B-0Y | Body, Front Lower 1 UR BLUISH WHITE COCKTAIL 1/ DEEP VIOLET METALLIC 1 | ||
| 3EN-Y283J-0A-MW | Body, Front Lower 1 UR BLUISH BLACK | ||
| 3HH-28301-61-00 | . Graphic Set, Lower Cover 1 UR FOR BWC1 | ||
| 3HH-28301-70-00 | . Graphic Set, Lower Cover 1 UR FOR BIB | ||
| 3HH-28315-50-00 | . Emblem UR FOR BIB | ||
| 3HH-28328-30-00 | . Emblem UR FOR BWC1 | ||
| 1 | 99236-00220-00 | . Emblem, Yamaha UR FOR BIB | 1 |
| 4 | 90480-13398-00 | . Grommet | 4 |
| 4 | 90387-067K6-00 | . Collar | 4 |
| 3HE-2848K-00-00 | . Seat 2 | ||
| 3EN-Y283K-0F-0Y | Body, Front Lower 2 UR BLUISH WHITE COCKTAIL 1/ DEEP VIOLET METALLIC 1 | ||
| 3EN-Y283K-0B-MW | Body, Front Lower 2 UR BLUISH BLACK | ||
| 3HH-28303-61-00 | . Graphic Set, Lower Cover 2 UR FOR BWC1 | ||
| 3HH-28303-70-00 | . Graphic Set, Lower Cover 2 UR FOR BIB | ||
| 3HE-2848L-00-00 | . Seat 3 | ||
| 8 | 90110-06200-00 | Bolt, Hexagon Socket Head | 8 |
| 2 | 90202-05180-00 | Washer, Plate | 2 |
| 2 | 90179-05523-00 | Nut | 2 |
| 3HE-2831U-00-00 | Stay, Side 1 | ||
| 2 | 95817-06012-00 | Bolt, Flange | 2 |
| 1WG-2836A-00-00 | Bracket 1 | ||
| 3EN-2836A-01-00 | Bracket 1 | ||
| 1WG-2836E-00-00 | Bracket 2 | ||
| 4 | 91026-06010-00 | Bolt | 4 |
| 3EN-2838N-00-00 | Duct 1 | ||
| 3EN-2838R-00-00 | Duct 2 | ||
| 3EN-2838T-00-00 | Duct 3 | ||
| 3EN-2838U-00-00 | Duct 4 | ||
| 3HE-2838J-01-00 | Duct 5 | ||
| 4 | 90460-49058-00 | Clamp, Hose | 4 |
| 90154-06046-00 | Screw, Binding | ||
| 3HE-2831W-00-00 | Stay, Mirror 1 | ||
| 2 | 91316-06016-00 | Bolt | 2 |
| 3EN-28313-00-00 | Lid | ||
| 3JJ-2835Y-00-00 | Label, Caution |
