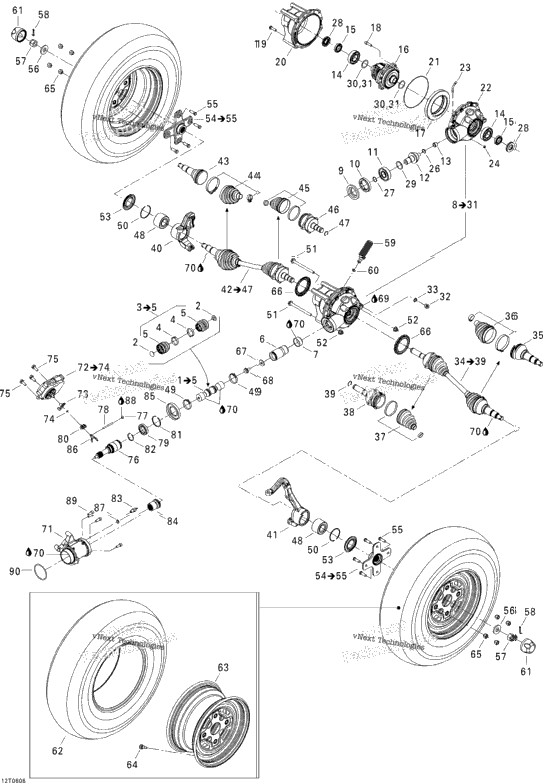

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705400337 | Front Drive Axle Ass'y Includes 1 to 5 | 1 |
| XXXX | Not Available As Spare Part - Stopper | ||
| 703500255 | Rubber Boot Kit Includes 3 to 5 | ||
| 2 | 293650138 | Oetiker Gear Clamp 44.0MM | 2 |
| 705400148 | Collar | ||
| 1 | 705400149 | Coupling Sleeve | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| 1 | 705400422 | Front Differential Ass'y Includes 8 to 31 | 1 |
| 1 | 705400027 | Oil Seal | 1 |
| 1 | 705500266 | Nut | 1 |
| 1 | 705500260 | Ball Bearing | 1 |
| 705500268 | GEAR, 10 TEETH | ||
| 1 | 705500261 | Needle Bearing | 1 |
| 2 | 705500259 | Ball Bearing | 2 |
| 2 | 293350044 | Ball Bearing | 2 |
| 1 | 705400407 | Differential | 1 |
| 1 | 705400192 | GEAR, 36 TEETH | 1 |
| 8 | 705400101 | RING GEAR SCREW | 8 |
| 6 | 705500264 | Screw | 6 |
| 1 | 705400297 | Front Cover | 1 |
| 1 | 705500265 | Seal | 1 |
| 705400299 | Front Cover, Pinion | ||
| 1 | 705500262 | Vent Valve | 1 |
| 1 | 705500245 | Drain Plug | 1 |
| 1 | 705500269 | RETAINING RING | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 2 | 705500255 | Oil Seal | 2 |
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 1 | 703500288 | Differential Shim Spool Kit | 1 |
| 1 | 703500050 | Differential Shim Spool Kit | 1 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 1 | 705400292 | RH CV Joint Includes 34 to 39 | 1 |
| 705500560 | CV Joint | ||
| 1 | 705500562 | Boot Wheel Kit | 1 |
| 1 | 705400417 | Boot Differential Kit | 1 |
| 1 | 705400294 | RH PLUNGING JOINT | 1 |
| 1 | 705400042 | CIRCLIP | 1 |
| 1 | 705400341 | LH Knuckle | 1 |
| 1 | 705400345 | RH Knuckle | 1 |
| 1 | 705400293 | LH CV Joint Includes 42 to 47 | 1 |
| 705400295 | LH Plunging Joint | ||
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201416 | Hex. Flange Elastic Nut M10 | 2 |
| 2 | 705500564 | Wear Sleeve | 2 |
| 705500596 | WHEEL HUB ASS'Y Includes 54 to 55 | ||
| 8 | 250300020 | Wheel Stud | 8 |
| 2 | 250200049 | Spring Washer | 2 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 250400016 | Cotter Pin | 2 |
| 1 | 705400352 | Rubber Bellow | 1 |
| 1 | 293650042 | Oetiker Clamp | 1 |
| 705400012 | WHEEL CAP | ||
| 705400213 | Front Tire Standard | ||
| 2 | 705400009 | Front Tire Standard, Europe | 2 |
| 705400355 | RIM_12 INCH X 6 | ||
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 8 | 250100042 | Steel Wheel Nut | 8 |
| 2 | 705400309 | Wear Sleeve | 2 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 1 | 250000060 | Flange Screw M10 X 16, Scotch Grip | 1 |
| 1 | 293600011 | Redline Pump Oil, 75W90, 12 x 6 oz | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 705400169 | HOUSING | ||
| 1 | 705400424 | Actuator Ass'y Includes 72 to 74 | 1 |
| 1 | 705400274 | Fork | 1 |
| 1 | 293370042 | Circlip | 1 |
| 3 | 250000137 | Hex. Flange Screw M8 X 20, Scotch Grip | 3 |
| 1 | 705400172 | Union Shaft | 1 |
| 1 | 206580890 | Pressure Screw M8 X 8 | 1 |
| 1 | 250400025 | Dowell Pin | 1 |
| 1 | 705400249 | Ball Bearing | 1 |
| 1 | 705400175 | Slider | 1 |
| 1 | 293370029 | Circlip | 1 |
| 1 | 293370030 | Circlip | 1 |
| 1 | 710000324 | SWITCH | 1 |
| 1 | 705400389 | Coupling Sleeve | 1 |
| 1 | 293250138 | Oil Seal | 1 |
| 1 | 705400387 | Shifter Plate | 1 |
| 1 | 705600310 | Copper Washer | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 3 | 250000136 | Socket Head Screw M8 X 20, Scotch Grip | 3 |
| 1 | 293300091 | O-Ring | 1 |
