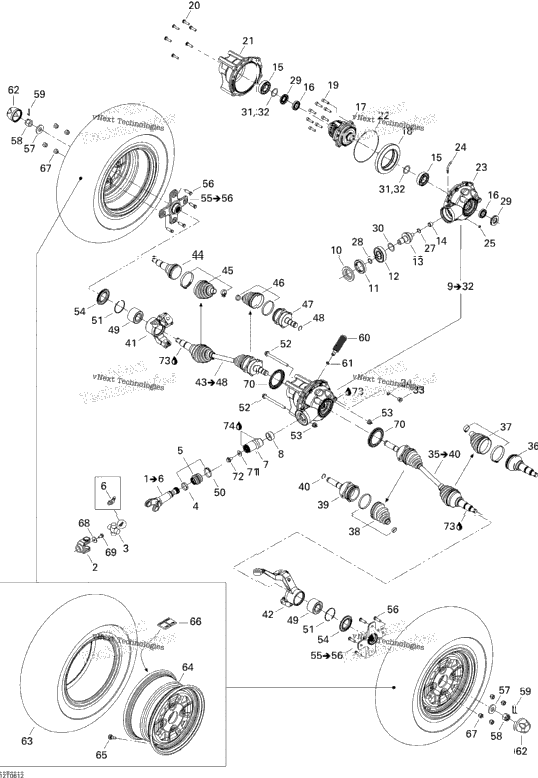

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705400272 | Front Drive Axle Ass'y Includes 1 to 6 | 1 |
| 705400391 | YOKE, FIXED JOINT | ||
| 703500135 | Unit Pack Kit | ||
| 705400148 | Collar | ||
| 703500255 | Rubber Boot Kit | ||
| 1 | 705500841 | GREASE FITTING | 1 |
| 1 | 705400149 | Coupling Sleeve | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| 1 | 705400425 | Front Differential Ass'y Includes 9 to 32 | 1 |
| 1 | 705400027 | Oil Seal | 1 |
| 1 | 705500789 | Nut | 1 |
| 1 | 705500260 | Ball Bearing | 1 |
| 705500268 | GEAR, 10 TEETH | ||
| 1 | 705500261 | Needle Bearing | 1 |
| 2 | 705500259 | Ball Bearing | 2 |
| 2 | 293350044 | Ball Bearing | 2 |
| 1 | 705400320 | Differential | 1 |
| 1 | 705400192 | GEAR, 36 TEETH | 1 |
| 8 | 705400101 | RING GEAR SCREW | 8 |
| 6 | 705500264 | Screw | 6 |
| 1 | 705400297 | Front Cover | 1 |
| 1 | 705500265 | Seal | 1 |
| 705400299 | Front Cover, Pinion | ||
| 1 | 705500262 | Vent Valve | 1 |
| 1 | 705500245 | Drain Plug | 1 |
| 1 | 705500269 | RETAINING RING | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 2 | 705500255 | Oil Seal | 2 |
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 1 | 703500288 | Differential Shim Spool Kit | 1 |
| 1 | 703500050 | Differential Shim Spool Kit | 1 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 1 | 705400479 | RH CV Joint Includes 35 to 40 | 1 |
| 705500560 | CV Joint | ||
| 1 | 705500562 | Boot Wheel Kit | 1 |
| 1 | 705400417 | Boot Differential Kit | 1 |
| 1 | 705400294 | RH PLUNGING JOINT | 1 |
| 1 | 705400042 | CIRCLIP | 1 |
| 705400473 | LH KNUCKLE | ||
| 705400474 | RH KNUCKLE | ||
| 1 | 705400480 | LH CV Joint Includes 43 to 48 | 1 |
| 705400295 | LH Plunging Joint | ||
| 2 | 293350040 | Cone Bearing | 2 |
| 1 | 293650138 | Oetiker Gear Clamp 44.0MM | 1 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201416 | Hex. Flange Elastic Nut M10 | 2 |
| 2 | 705500564 | Wear Sleeve | 2 |
| 705500596 | WHEEL HUB ASS'Y Includes 55 to 56 | ||
| 4 | 250300020 | Wheel Stud | 4 |
| 2 | 250200049 | Spring Washer | 2 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 250400016 | Cotter Pin | 2 |
| 1 | 705400352 | Rubber Bellow | 1 |
| 1 | 293650042 | Oetiker Clamp | 1 |
| 705400012 | WHEEL CAP | ||
| 1 | 705400431 | Front Tire XT | 1 |
| 705400355 | RIM_12 INCH X 6 | ||
| 1 | 705400193 | Rim Valve With Cap | 1 |
| 705500786 | Adhesive Weight, 1/2 Oz | ||
| 8 | 250100042 | Steel Wheel Nut | 8 |
| 1 | 211200041 | Washer | 1 |
| 1 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip | 1 |
| 2 | 705400309 | Wear Sleeve | 2 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 1 | 250000060 | Flange Screw M10 X 16, Scotch Grip | 1 |
| 1 | 293600011 | Redline Pump Oil, 75W90, 12 x 6 oz | 1 |
| 293550010 | Synthetic Grease, 400 G |
