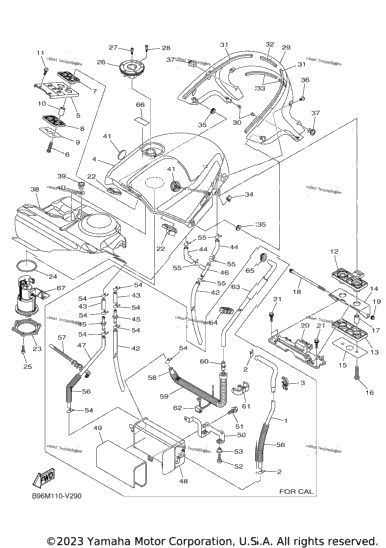

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 0 | 1MC-1443J-10-00 | Pipe FOR CALIFORNIA | 0 |
| 0 | 90467-100A1-00 | .Clip FOR CALIFORNIA | 0 |
| 0 | 90464-28153-00 | Clamp FOR CALIFORNIA | 0 |
| 1 | 3P6-YK241-01-P2 | Fuel Tank Comp DPBMU | 1 |
| 1 | 5JW-24191-00-00 | Bracket, Fuel Tank 1 | 1 |
| 2 | 92012-08035-00 | Bolt, Button Head | 2 |
| 1 | 5JW-24181-00-00 | Damper, Locating 1 | 1 |
| 1 | 5JW-24182-00-00 | Damper, Locating 2 | 1 |
| 1 | 5JW-24187-00-00 | Washer, Special | 1 |
| 2 | 90387-0813V-00 | Collar | 2 |
| 2 | 90149-06302-00 | Screw | 2 |
| 1 | 3P6-24183-01-00 | Damper, Locating 3 | 1 |
| 1 | 5JW-24184-01-00 | Damper, Locating 4 | 1 |
| 1 | 5JW-24192-01-00 | Bracket, Fuel Tank 2 | 1 |
| 1 | 5JW-24186-00-00 | Washer, Special | 1 |
| 1 | 95812-08160-00 | Bolt, Flange | 1 |
| 1 | 95702-08500-00 | Nut, Flange | 1 |
| 1 | 3P6-21348-00-00 | Brackt, Tank Fitting | 1 |
| 4 | 95822-06020-00 | Bolt, Flange | 4 |
| 2 | 3P6-24184-01-00 | Damper, Locating 4 | 2 |
| 1 | 1MC-24491-00-00 | Bracket, Fuel Pump | 1 |
| 1 | 19B-24486-01-00 | O-Ring | 1 |
| 6 | 90110-05028-00 | Bolt, Hexagon Socket Head | 6 |
| 1 | 39P-24602-10-00 | Cap Assy | 1 |
| 3 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 |
| 1 | 91312-05010-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 3P6-24129-10-P0 | Cover, Side 1 SMX | 1 |
| 2 | 90338-06018-00 | Plug | 2 |
| 2 | 3P6-2414H-00-00 | Damper, Plate 1 | 2 |
| 1 | 3P6-2414J-00-00 | Damper, Plate 2 | 1 |
| 2 | 2D1-2414R-00-00 | Damper, Plate 6 | 2 |
| 2 | 5PW-2411J-01-00 | Damper, Side Cover | 2 |
| 2 | 90480-01558-00 | Grommet | 2 |
| 2 | 90111-05023-00 | Bolt, Hexagon Socket Button | 2 |
| 2 | 90269-06081-00 | Rivet | 2 |
| 1 | 1MC-2416F-00-00 | Insulator, Fuel Tank 1 | 1 |
| 1 | 90269-06081-00 | Rivet | 1 |
| 1 | 90202-06008-00 | Washer, Plate | 1 |
| 2 | 1RC-2413B-01-00 | Emblem | 2 |
| 1 | 90445-11036-00 | Hose | 1 |
| 0 | 90445-11066-00 | Hose FOR CALIFORNIA | 0 |
| 2 | 90445-11763-00 | Hose (L45) | 2 |
| 0 | 4XY-14568-00-00 | Joint FOR CALIFORNIA | 0 |
| 1 | 90413-07007-00 | Way 3 | 1 |
| 0 | B88-24312-10-00 | Pipe 2 FOR CALIFORNIA | 0 |
| 0 | 3P6-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 |
| 0 | 3P6-2414E-00-00 | Seal 2 FOR CALIFORNIA | 0 |
| 0 | B88-2419F-00-00 | Bracket, Canistor FOR CALIFORNIA | 0 |
| 0 | 95804-06012-00 | Bolt, Flange FOR CALIFORNIA | 0 |
| 0 | 92014-06012-00 | Bolt, Button Head FOR CALIFORNIA | 0 |
| 0 | 90387-0603J-00 | Collar FOR CALIFORNIA | 0 |
| 5 | 90467-100A1-00 | .Clip | 5 |
| 0 | 3P6-2432A-00-00 | Protector, Pipe 2 FOR CALIFORNIA | 0 |
| 0 | 90464-10009-00 | Clamp FOR CALIFORNIA | 0 |
| 0 | B88-24314-00-00 | Pipe 4 FOR CALIFORNIA | 0 |
| 0 | B88-24327-00-00 | Protector, Pipe FOR CALIFORNIA | 0 |
| 0 | 4JP-21753-00-00 | Boss, Connector FOR CALIFORNIA | 0 |
| 0 | 90464-16002-00 | Clamp FOR CALIFORNIA | 0 |
| 0 | 90464-45005-00 | Clamp FOR CALIFORNIA | 0 |
| 0 | B88-24315-00-00 | Pipe 5 FOR CALIFORNIA | 0 |
| 0 | 90464-10011-00 | Clamp FOR CALIFORNIA | 0 |
| 0 | 90480-15016-00 | Grommet FOR CALIFORNIA | 0 |
| 1 | 1TP-2118K-A2-00 | Label, Caution | 1 |
| 1 | 5JW-13907-24-00 | Fuel Pump Comp | 1 |
