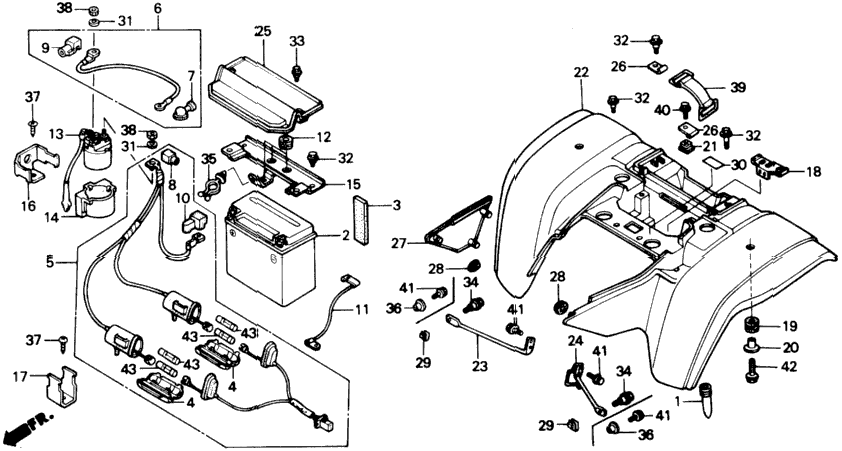

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 17358-VM4-000 | TUBE, DRAIN | 1 |
| 31500-HA7-671 | BATTERY (YTH14-12B) (YUASA) | ||
| 31500-HA7-672 | BATTERY (YTH14-12B) (YUASA) | ||
| 31500-HA7-673 | BATTERY (YTH14-128) (YUASA) | ||
| 31500-HA7-674 | BATTERY (YTX14-BS) (YUASA) | ||
| 31500-HA7-675 | BATTERY (YTX14-BS) (YUASA) | ||
| 31500-HA7-676 | BATTERY (YTX14-BS) (YUASA) | ||
| 31500-HA7-678 | BATTERY (YTX14-BS) (YUASA) | ||
| 31500-HC4-726 | BATTERY (YTX14-BS) (YUASA) (MSDS) | ||
| 31500-HC4-726AH | BATTERY (YTX14-BS) (YUASA) (MSDS) | ||
| 31508-HC4-000 | RUBBER, BATTERY | ||
| 32120-465-770 | CASE, FUSE (15A) | ||
| 32401-HC4-000 | CABLE, BATTERY RELAY | ||
| 32402-HC4-010 | CABLE, STARTER MOTOR | ||
| 1 | 32411-473-000 | COVER, TERMINAL | 1 |
| 1 | 32412-HB6-000 | COVER, MAGNETIC SWITCH TERMINAL | 1 |
| 32404-MJ0-000 | (SOURCE: VINTAGE PARTS INC.) | ||
| 1 | 32414-MM9-000 | COVER A, BATTERY TERMINAL | 1 |
| 32601-HC4-000 | CABLE, BATTERY GROUND | ||
| 3 | 33715-965-000 | RUBBER, TAILLIGHT MOUNTING | 3 |
| 1 | 35850-HC4-000 | SWITCH ASSY., STARTER MAGNETIC | 1 |
| 1 | 35856-425-000 | RUBBER, MAGNETIC SHOCK | 1 |
| 50311-HC4-000 | PLATE, BATTERY HOLDER | ||
| 1 | 50326-HC4-000 | STAY, STARTER MAGNETIC | 1 |
| 50327-HC4-000 | STAY, FUSE | ||
| 50328-HC4-000 | STAY, CONNECTOR | ||
| 2 | 61103-357-000 | RUBBER, FR. FENDER MOUNTING | 2 |
| 2 | 61104-428-000 | COLLAR, FR. FENDER | 2 |
| 2 | 61104-428-010 | COLLAR, FR. FENDER (WHITE) | 2 |
| 2 | 61104-428-730 | COLLAR, FR. FENDER (BLACK) | 2 |
| 1 | 61304-HB3-003 | NUT, SPECIAL (6MM) | 1 |
| 80100-HC4-000ZA | FENDER, RR. *R109* (WOL) (PASSION RED) | ||
| 80100-HC4-010ZA | FENDER, RR. *R109* (WOL) (PASSION RED) | ||
| 80100-HC4-000ZB | FENDER, RR. *NH180R* (WOL) (COSMIC GRAY) | ||
| 80100-HC4-010ZB | FENDER, RR. *NH180R* (WOL) (COSMIC GRAY) | ||
| 80217-HC4-000 | STAY, R. RR. FENDER (FR) | ||
| 80217-HC4-010 | STAY, R. RR. FENDER (FR) | ||
| 80217-HC4-305 | STAY, R. RR. FENDER (FR) | ||
| 80217-HC4-670 | STAY, R. RR. FENDER (FR) | ||
| 1 | 80218-HC4-000 | STAY, L. RR. FENDER (FR) | 1 |
| 80218-HC4-010 | STAY, L. RR. FENDER (FR) | ||
| 80218-HC4-900 | STAY, L. RR. FENDER (FR) | ||
| 1 | 80311-HC4-000ZA | COVER, BATTERY BOX *R109* (PASSION RED) | 1 |
| 1 | 80311-HC4-010ZA | COVER, BATTERY BOX *R109* (PASSION RED) | 1 |
| 1 | 80311-HM4-730ZB | COVER, BATTERY BOX *R109* (PASSION RED) | 1 |
| 80311-HC4-000ZB | COVER, BATTERY BOX *NH180R* (COSMIC GRAY) | ||
| 80312-HC4-000 | HOOK, TOOL SETTING | ||
| 1 | 83500-HC4-000ZA | COVER, R. SIDE *R109* (WOL) (PASSION RED) | 1 |
| 1 | 83500-HC4-670ZA | COVER, R. SIDE *R109* (WOL) (PASSION RED) | 1 |
| 1 | 83500-HC4-671ZA | COVER, R SIDE *R109* (PASSION RED) | 1 |
| 1 | 83500-HM4-730ZB | COVER, R. SIDE *R109* (PASSION RED) | 1 |
| 83500-HC4-000ZB | COVER, R. SIDE *NH180R* (WOL) (COSMIC GRAY) | ||
| 4 | 83551-300-000 | GROMMET, AIR CLEANER HOUSING | 4 |
| 2 | 84601-HC4-000 | NUT, FENDER SETTING (6MM) | 2 |
| 87506-HC4-300 | MARK, BATTERY CAUTION | ||
| 2 | 90052-ZA0-800 | WASHER, SPRING (6MM) | 2 |
| 6 | 90111-HC4-000 | BOLT, FLANGE (6X14) | 6 |
| 2 | 90111-KM1-000 | BOLT, FLANGE (6MM) | 2 |
| 2 | 90113-MJ4-670 | BOLT, FLANGE (6X16) | 2 |
| 1 | 90119-HA7-670 | CLAMP, HARNESS | 1 |
| 1 | 90522-028-000 | WASHER, CHAIN CASE SETTING | 1 |
| 2 | 93901-25120 | SCREW, TAPPING (5X10) | 2 |
| 2 | 94002-06390-0S | NUT, HEX. (6MM) | 2 |
| 1 | 95012-12001 | BAND B1, BATTERY | 1 |
| 1 | 95701-06010-08 | BOLT, FLANGE (6X10) | 1 |
| 4 | 95701-06014-07 | BOLT, FLANGE (6X14) | 4 |
| 1 | 95701-06016-07 | BOLT, FLANGE (6X16) | 1 |
| 1 | 95701-06016-08 | BOLT, FLANGE (6X16) | 1 |
| 2 | 95701-06020-08 | BOLT, FLANGE (6X20) | 2 |
| 4 | 98200-21500 | FUSE B (15A) | 4 |
