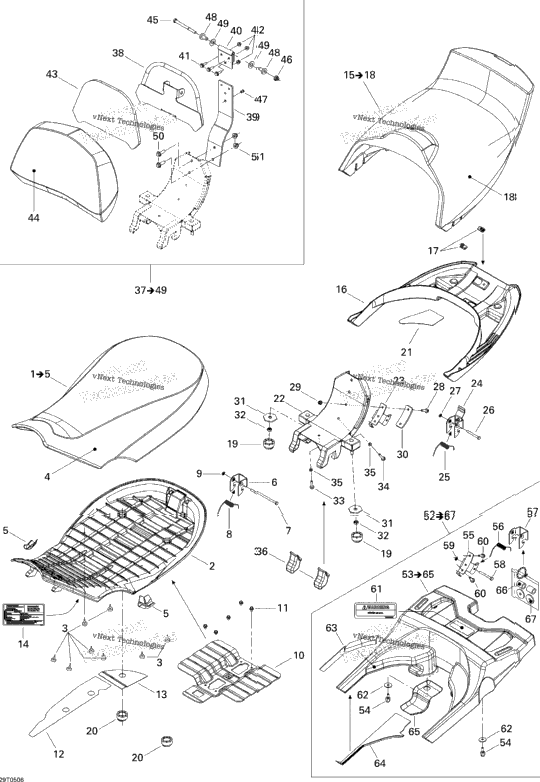

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 708000379 | Seat Ass'y Includes 1 to 5 | 1 |
| XXXX | Not Available As Spare Part - Seat Base | ||
| 8 | 708000125 | Rubber Stopper | 8 |
| 1 | 708000380 | Seat Cover | 1 |
| 2 | 708000127 | SEAT CORNER, BLACK | 2 |
| 1 | 708000144 | Latch, Black | 1 |
| 230061060 | HEX. SCREW M6 X 110 | ||
| 1 | 708000369 | Spring | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 708000263 | SEAT REINFORCEMENT | ||
| 5 | 210261080 | Hex. Flange Screw M6 X 10 | 5 |
| 1 | 708000198 | REFLECTING SHEET | 1 |
| 708000322 | Reflecting Sheet | ||
| 704900874 | Emission Label | ||
| 708000382 | Rear Seat Ass'y Includes 15 to 18 | ||
| 2 | 250000048 | Panel Nut M6 X 1.0 | 2 |
| 708000383 | Seat Cover | ||
| 2 | 708000323 | Rubber Bumper | 2 |
| 708000268 | Reflecting Sheet | ||
| 708000305 | Seat Reinforcement | ||
| 708000309 | LOCK SUPPORT, BLACK | ||
| 708000398 | Latch | ||
| 1 | 207065544 | Hex. Screw M6 X 55 | 1 |
| 1 | 207662544 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 708000351 | Plate | ||
| 708000350 | Adjuster Stopper | ||
| 2 | 732610010 | RH Threaded Hex. Jam Nut M10 | 2 |
| 1 | 207663044 | Hex. Flange Screw M6 X 30 | 1 |
| 2 | 234161471 | Lock Washer M6, Black | 2 |
| 708000343 | Protector | ||
| 708000384 | Backrest Ass'y Includes 37 to 49 | ||
| XXXX | Not Available As Spare Part - Backrest | ||
| XXXX | Not Available As Spare Part - Backrest Support | ||
| XXXX | Not Available As Spare Part - Pivot Plate | ||
| 3 | 207662044 | Hex. Flange Screw M6 X 20 | 3 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| XXXX | Not Available As Spare Part - Backrest Foam | ||
| 708000385 | Backrest Cover | ||
| 207089544 | Hex. Screw M8 X 95 | ||
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 293150104 | Pop Rivet 3/16" | 1 |
| XXXX | Not Available As Spare Part - Sleeve Pivot | ||
| 2 | 706200281 | Hardened Washer | 2 |
| 2 | 207682544 | Hex. Flange Screw M8 X 25 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 703100127 | Removable Luggage Rack Kit Includes 52 to 67 | ||
| 705001687 | Removable Luggage Rack Ass. Includes 53 to 65 | ||
| XXXX | Not Available As Spare Part - Location Pins | ||
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 704900446 | WARNING DECAL NEVER SIT HERE | ||
| 2 | 224060251 | Washer | 2 |
| 705001452 | REFLECTING SHEET | ||
| 705001453 | REFLECTING SHEET | ||
| 705001454 | REFLECTING SHEET | ||
| 1 | 219704394 | Was 276000001 Hose 12.5 mm | 1 |
| 2 | 517078700 | WASHER | 2 |
