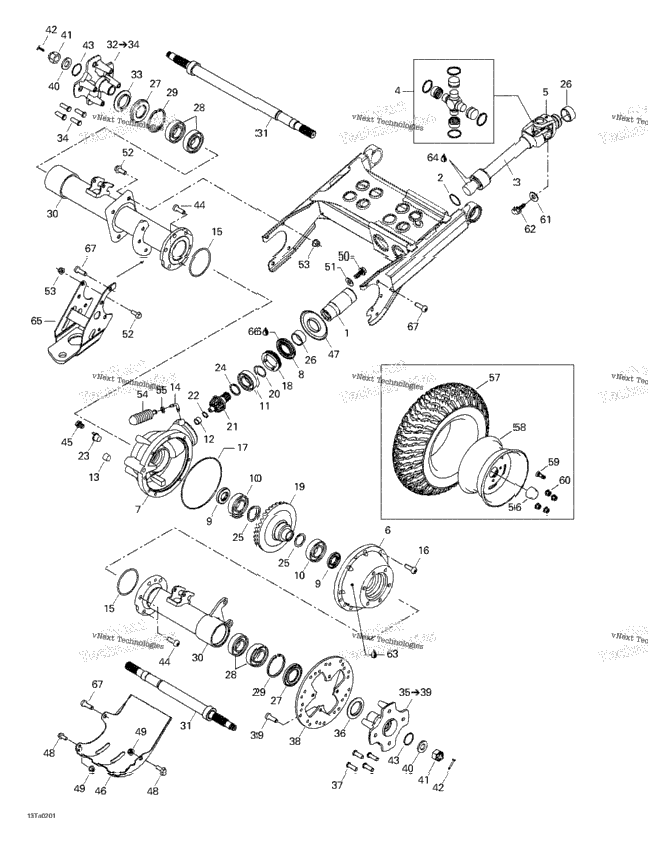

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 705500380 | COUPLER Includes 1 to 2 | ||
| 1 | 705500315 | SEALING RING | 1 |
| 705500168 | Drive Axle Includes 3 to 5 | ||
| 1 | 703500002 | Unit Pack Kit | 1 |
| 1 | 705500348 | Fix Joint | 1 |
| 705500175 | Rear Cover | ||
| 705500233 | Differential Carrier | ||
| 705500248 | Oil Seal | ||
| 2 | 705500255 | Oil Seal | 2 |
| 2 | 705500259 | Ball Bearing | 2 |
| 1 | 705500260 | Ball Bearing | 1 |
| 1 | 705500261 | Needle Bearing | 1 |
| 1 | 705500245 | Drain Plug | 1 |
| 1 | 705500262 | Vent Valve | 1 |
| 2 | 705500263 | O-RING | 2 |
| 8 | 705500264 | Screw | 8 |
| 1 | 705500265 | Seal | 1 |
| 1 | 705500266 | Nut | 1 |
| 705500223 | Crown Gear | ||
| 1 | 705500267 | O-Ring | 1 |
| 705500268 | GEAR, 10 TEETH | ||
| 1 | 705500269 | RETAINING RING | 1 |
| 705500246 | Protector Plug | ||
| 705500075 | Pinion Gear Shim .022" | ||
| 1 | 705500079 | Differential Shim .022" | 1 |
| 2 | 705400036 | Wear Ring | 2 |
| 2 | 705500099 | OIL SEAL | 2 |
| 705500251 | BALL BEARING | ||
| 2 | 705500249 | RETAINING RING | 2 |
| 705500250 | RH AXLE TUBE | ||
| 1 | 705500182 | LH AXLE TUBE | 1 |
| 1 | 705500183 | RH AXLE | 1 |
| 1 | 705500184 | LH AXLE | 1 |
| 705500254 | Wheel Hub Ass'y Includes 32 - 34. | ||
| 705500100 | WEAR RING | ||
| 4 | 250300020 | Wheel Stud | 4 |
| 705500256 | Rear wheel hub Includes 35 - 39. | ||
| 705600167 | Brake disc | ||
| 4 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 4 |
| 2 | 250200019 | WASHER | 2 |
| 2 | 232291413 | Hex. Flange Castellated Nut M18 | 2 |
| 2 | 211400012 | Cotter pin | 2 |
| 705500271 | O-RING | ||
| 250000085 | Torx Screw M10 X 30 | ||
| 705500228 | Fill level plug | ||
| 705500185 | Differential Protector, Black | ||
| 705500214 | JOINT PROTECTOR | ||
| 2 | 207681644 | Hex. Flange Screw M8 X 16 | 2 |
| 2 | 233181414 | Hex. Flange Nut M8 | 2 |
| 1 | 250000060 | Flange Screw M10 X 16, Scotch Grip (Scotch Grip) | 1 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 7 | 207602544 | Hex. Flange Screw M10 X 25 | 7 |
| 7 | 233201414 | Hex. Flange Elastic Nut M10 | 7 |
| 1 | 705400066 | Rubber Bellow | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 705400012 | WHEEL CAP | ||
| 705500140 | Rear Tire | ||
| 705500309 | Rear Rim | ||
| 2 | 705400053 | Rim valve | 2 |
| 705400013 | HEX. NUT | ||
| 1 | 211200041 | Washer | 1 |
| 1 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip (Scotch Grip) | 1 |
| 1 | 293600011 | Redline Pump Oil, 75W90, 12 x 6 oz 12 x 6 oz | 1 |
| 1 | 293550019 | Grease, 60 G | 1 |
| 705500244 | Trailer Hook, Black | ||
| 293550010 | Synthetic Grease, 400 G |
