Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

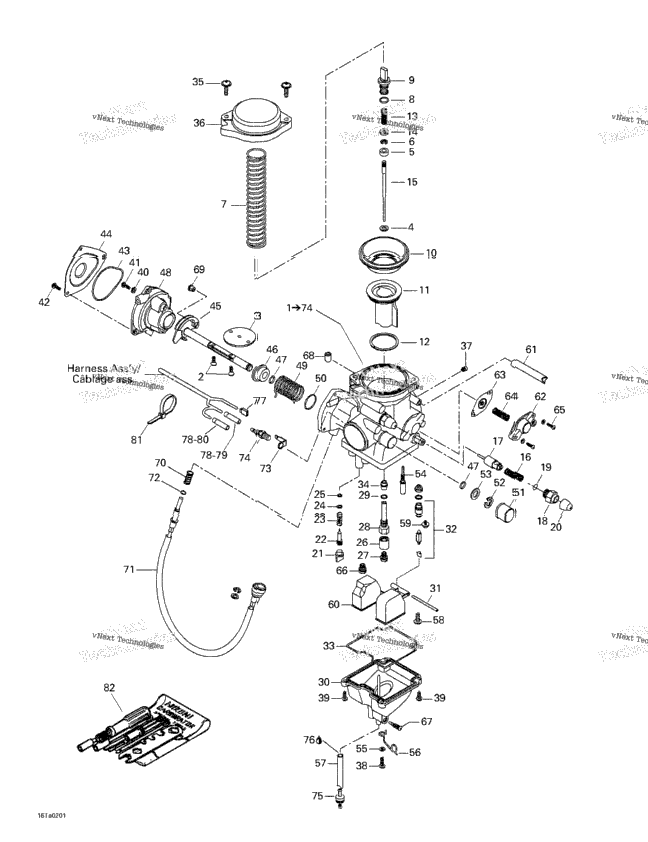

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 707200157 | CARBURATOR ASS?Y BSR33-29 Includes 1 - 74. | ||
| XXXX | Not Available As Spare Part - Screw | ||
| XXXX | Not Available As Spare Part - Valve (Throttle) | ||
| 1 | 707200064 | WASHER | 1 |
| 1 | 707200065 | RING | 1 |
| 1 | 404152200 | E-Ring | 1 |
| 707200066 | Spring | ||
| 1 | 270500144 | O-RING | 1 |
| 1 | 707200067 | HOLDER | 1 |
| 707200068 | DIAPHRAGM | ||
| 707200069 | Piston Valve | ||
| 707200070 | Ring | ||
| 707200071 | SPRING | ||
| 1 | 707200072 | WASHER | 1 |
| 707200167 | Needle J8-5Fiy03-52 | ||
| 1 | 707200144 | SPRING | 1 |
| 707200170 | Plunger Ass'y | ||
| 707200009 | Holder Guide | ||
| 404140200 | O-Ring | ||
| 1 | 707200010 | CAP | 1 |
| 707200004 | CAP | ||
| 1 | 707200077 | ADJUSTER | 1 |
| 707200078 | Spring | ||
| 1 | 707200018 | WASHER | 1 |
| 1 | 404139900 | O-RING | 1 |
| 707200079 | RING | ||
| 1 | 270500251 | MAIN JET 140.0 | 1 |
| 707200080 | Jet Holder | ||
| 270500119 | O-RING | ||
| 707200081 | Float Body Ass'y | ||
| 404123400 | Pin | ||
| 1 | 707200082 | Needle Valve 1.0 | 1 |
| 1 | 707200083 | O-Ring | 1 |
| 707200084 | Needle Jet | ||
| 2 | 707200085 | SCREW | 2 |
| 1 | 707200086 | DIAPHRAGM COVER | 1 |
| 707200087 | Pilot Jet 60.0 | ||
| 1 | 404138700 | Screw | 1 |
| 3 | 707200089 | SCREW | 3 |
| XXXX | Not Available As Spare Part - Washer | ||
| XXXX | Not Available As Spare Part - Vis | ||
| 707200091 | SCREW | ||
| 1 | 707200092 | O-RING | 1 |
| 707200093 | COVER | ||
| XXXX | Not Available As Spare Part - Throttle Shaft | ||
| XXXX | Not Available As Spare Part - Ring | ||
| XXXX | Not Available As Spare Part - Sealing Ring | ||
| XXXX | Not Available As Spare Part - Case | ||
| XXXX | Not Available As Spare Part - Spring | ||
| XXXX | Not Available As Spare Part - O-Ring | ||
| XXXX | Not Available As Spare Part - Cap | ||
| XXXX | Not Available As Spare Part - Ring-E | ||
| XXXX | Not Available As Spare Part - Packing | ||
| 707200168 | Pilot Jet 35.0 | ||
| 707200101 | Washer | ||
| 707200102 | Clip | ||
| 707200041 | Hose | ||
| 1 | 404138600 | SCREW | 1 |
| 1 | 404161861 | SCREW | 1 |
| 1 | 707200103 | FLOAT ASS?Y | 1 |
| 707200104 | Hose | ||
| 707200105 | Cover Ass’y | ||
| 1 | 707200106 | DIAPHRAGM ASS?Y | 1 |
| 707200160 | Richer Spring | ||
| 2 | 404901400 | SCREW | 2 |
| 707200152 | Main Jet 50.0 | ||
| 707200024 | SCREW | ||
| 1 | 404154900 | CAP | 1 |
| 1 | 707200058 | CABLE GUIDE | 1 |
| 1 | 404101700 | Spring | 1 |
| 707200146 | ADJUSTER CABLE | ||
| 1 | 707200141 | WASHER | 1 |
| 1 | 707200164 | TERMINAL | 1 |
| 707200163 | HEATER ELEMENT | ||
| 1 | 275500398 | Check Valve | 1 |
| 1 | 413708300 | Glue Tube, Loctite 454, 20 G | 1 |
| 1 | 409010700 | Female Terminal | 1 |
| 2 | 278001009 | Female Terminal | 2 |
| 1 | 278000770 | Insulated Sheath | 1 |
| 1 | 278001007 | Insulated Sheath | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 404112000 | TOOL KIT |
