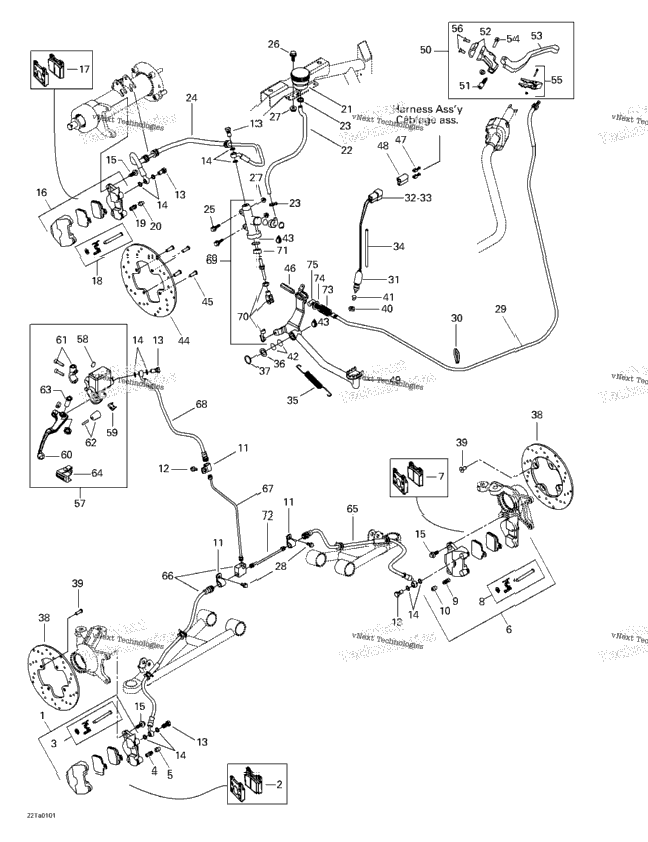

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 705600028 | RH CALIPER ASS'Y Includes 1 - 5. | ||
| 2 | 705600041 | PAD_BRAKE KIT | 2 |
| 705600110 | Retainer Kit | ||
| 705600111 | Bleeder Screw | ||
| 414989700 | BOOT-QTS 20 | ||
| 705600029 | LH Caliper Ass'y Includes 6 - 10. | ||
| 3 | 705600040 | Open Clamp | 3 |
| 1 | 210261680 | Hex. Flange Screw M6 X 16 | 1 |
| 5 | 414920500 | Banjo Bolt | 5 |
| 10 | 414920600 | Washer | 10 |
| 6 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 6 |
| 705600031 | RH Rear Caliper Includes 16 - 20. | ||
| 1 | 705600009 | OIL HOUSING | 1 |
| 705600102 | Oil Housing Hose | ||
| 2 | 293650042 | Oetiker Clamp | 2 |
| 705600159 | Rear Brake Hose | ||
| 2 | 207662544 | Hex. Flange Screw M6 X 25 | 2 |
| 1 | 207661644 | Hex. Flange Screw M6 X 16 | 1 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 210661940 | Screw Hex. M6.3 x 19 | ||
| 705600099 | REAR BRAKE CABLE | ||
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 410106700 | Brake Switch | 1 |
| 409204500 | MALE HOUSING | ||
| 409210000 | MALE TERMINAL | ||
| 1 | 219704425 | Tubing 6 Mm 3000Mm Long | 1 |
| 1 | 705600107 | BRAKE PEDAL SPRING | 1 |
| 1 | 503107800 | WASHER | 1 |
| 1 | 293370012 | CIRCLIP | 1 |
| 705600003 | Brake Disk (Front) (7431 @ 7434) | ||
| 8 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 8 |
| 250100002 | Switch Nut | ||
| 1 | 570151100 | Plunger Cap | 1 |
| 2 | 293300053 | O-RING | 2 |
| 293550010 | Synthetic Grease, 400 G | ||
| 705600033 | Brake Disk 220 mm (Rear) | ||
| 4 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 4 |
| 1 | 705600147 | NUT | 1 |
| 2 | 561503100 | FEMALE TERMINAL | 2 |
| 1 | 409204600 | FEMALE TERMINAL HOUSING, 24 CIRCUITS | 1 |
| 705600131 | Brake Pedal (Black) | ||
| 705600011 | Brake Handle Includes 50 - 56. | ||
| 705600129 | Brake Handle Ass'y 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge). | ||
| 250000030 | Cable Screw | ||
| 1 | 705600184 | CLAMP KIT | 1 |
| 1 | 705600186 | LEVER | 1 |
| 705600130 | Lever 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge). | ||
| 705600187 | Pivot Kit | ||
| 705600188 | Lever Lock Kit | ||
| 205351646 | SOCKET HEAD SCREW M5 X 16 | ||
| 705600005 | Master Cylinder Ass'y Includes 57 - 64. | ||
| 414990600 | WINDOW | ||
| 705600112 | Microswitch | ||
| 705600113 | ARM LEVER | ||
| 414990400 | Clamp | ||
| 414990300 | Cap | ||
| 414990200 | Pin Lever | ||
| 1 | 705600114 | BOOT RUBBER | 1 |
| 705600059 | Flexible Hose L.H | ||
| 705600020 | Flexible Hose R.H | ||
| 705600036 | Vertical tube | ||
| 705600007 | Brake Handle Hose | ||
| 705600006 | Master Cylinder Includes 69 - 71. | ||
| 705600021 | Pusher | ||
| 705600075 | Boot Bellow | ||
| 705600038 | Horizontal tube | ||
| 1 | 705600144 | SPRING | 1 |
| 1 | 705600145 | FLAT WASHER | 1 |
| 1 | 705600146 | CABLE BARREL | 1 |
