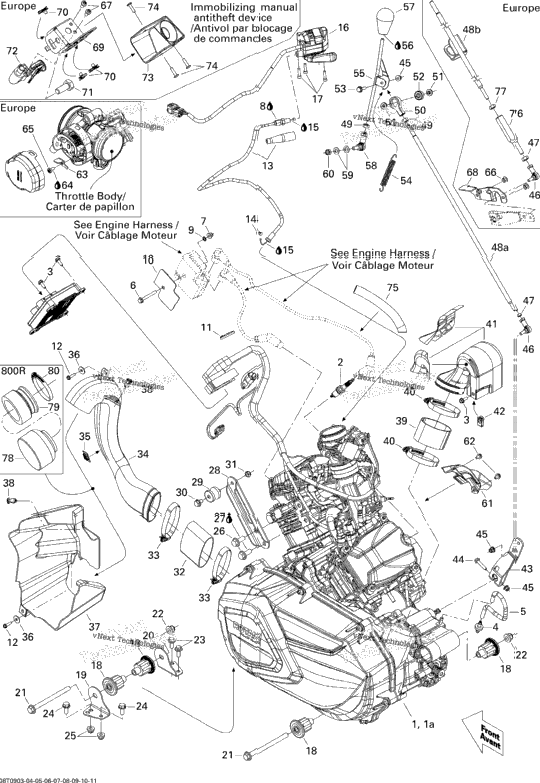

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Rotax 4 Stroke Engine, 500 EFI 500 EFI | ||
| 420049030 | LONG BLOCK 490 ENGINE 500 EFI | ||
| 2 | 707000246 | Spark Plug NGK DCPR8E | 2 |
| 3 | 210261680 | Hex. Flange Screw M6 X 16 | 3 |
| 1 | 275500398 | Check Valve | 1 |
| 1 | 219704360 | Hose 6 Mm 15000Mm Long | 1 |
| 1 | 207665044 | Hex. Flange Screw M6 X 50 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 710000073 | Insulator Pad | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 2 | 210252040 | Hex. Forming Screw | 2 |
| 1 | 707000393 | Throttle Cable | 1 |
| 1 | 707000434 | Cable Guide | 1 |
| 293600041 | CABLE LUBRICANT, 400 G | ||
| 1 | 707000595 | Throttle Handle | 1 |
| 3 | 205052588 | Socket Head Screw M5 X 25 | 3 |
| 4 | 707000426 | Anti-Vibration Mount | 4 |
| 1 | 707000364 | Engine Bracket, Black | 1 |
| 1 | 707000396 | Engine Bracket, Black | 1 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201416 | Hex. Flange Elastic Nut M10 | 2 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 207602544 | Hex. Flange Screw M10 X 25 | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 707000371 | Upper Engine Bracket, Black | 1 |
| 1 | 274000839 | Rubber Isolator | 1 |
| 1 | 207581046 | Flange Screw M8 x 10, Scotch Grip | 1 |
| 1 | 232581414 | Hex. Elastic Stop Nut M8 | 1 |
| 1 | 707000719 | Flexible Adaptor | 1 |
| 2 | 293650091 | Norma Clamp | 2 |
| 1 | 706600008 | AIR INLET 500 EFI | 1 |
| 1 | 293750040 | Tie-rap Mount (square - self-adhsive) | 1 |
| 2 | 391302000 | Flat Washer | 2 |
| 1 | 707000509 | WATER DEFLECTOR | 1 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 1 | 706600007 | Flexible Adaptor | 1 |
| 2 | 514052859 | Norma Gear Clamp | 2 |
| 707000459 | AIR OUTLET ASS'Y | ||
| 1 | 250000048 | Panel Nut M6 X 1.0 | 1 |
| 1 | 707000691 | Lever | 1 |
| 1 | 207663044 | Hex. Flange Screw M6 X 30 | 1 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 707000545 | LH BALL JOINT | ||
| 1 | 232066414 | LH HEX. NUT M6 | 1 |
| 707000579 | THREADED ROD | ||
| 1 | 707000661 | THREADED ROD Europe | 1 |
| 2 | 232081414 | Hex. Nut M8 | 2 |
| 707000575 | PIVOT | ||
| 2 | 707000576 | BUSHING | 2 |
| 1 | 293350039 | BALL BEARING | 1 |
| 1 | 207662544 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 707000577 | Spring | 1 |
| 1 | 707000578 | Lever Arm | 1 |
| 705500022 | LEVER BUTTON | ||
| 1 | 707000546 | RH Ball Joint | 1 |
| 2 | 506151252 | Washer | 2 |
| 1 | 707000410 | Cover OPS | 1 |
| 2 | 210261280 | Hex. Flange Screw M6 X 12 | 2 |
| 1 | 707000573 | Speed Limiter Europe | 1 |
| 707000572 | SPEED LIMITER Europe | ||
| 1 | 293800060 | Loctite 243, 10 ml Europe | 1 |
| 250000332 | TORX SCREW M4 X 8 Europe | ||
| 2 | 390402200 | Pop Rivet 3/16" Europe | 2 |
| 2 | 205951046 | Socket Head Screw M5 X 10 Europe | 2 |
| 1 | 707000692 | ANTITHEFT PLATE Europe | 1 |
| 707000664 | FIXING PLATE Europe | ||
| 3 | 250100048 | Extruded Panel Nut M4 X 0.7 Europe | 3 |
| 1 | 205402596 | SOCKET HEAD SCREW M10 X 25 Europe | 1 |
| 1 | 707000666 | Padlock with Key Europe | 1 |
| 1 | 707000667 | Cover Lock Europe | 1 |
| 3 | 250000242 | Truss Torx Screw M4 X 16 Europe | 3 |
| 1 | 219704400 | Was 409901800 Tubing (13 mm) Europe | 1 |
| 1 | 707000668 | ADJUSTMENT BLOCK Europe | 1 |
| 1 | 232061600 | Hex. Nut M6 Europe | 1 |
| XXX | Not Available As Spare Parts |
