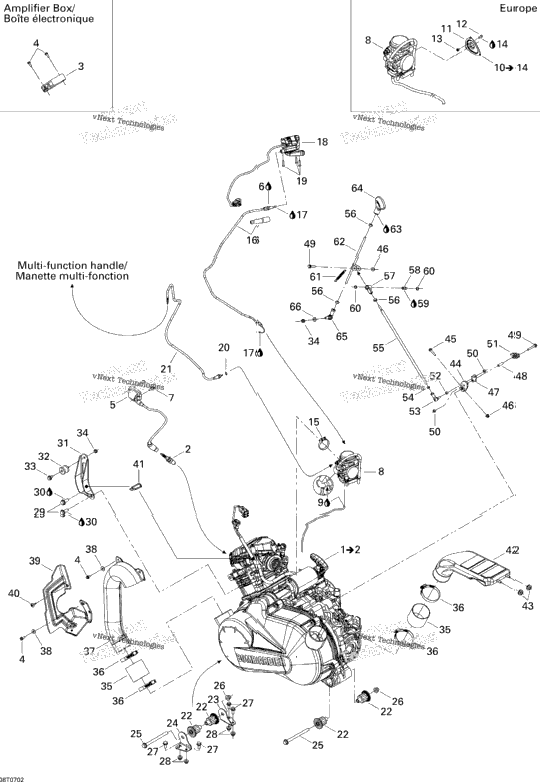

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 707000295 | Pre-Selective Lever | 1 |
| 707000463 | Engine Rotax 4 Stroke Includes 1 to 2 | ||
| 1 | 707000246 | Spark Plug NGK DCPR8E | 1 |
| 1 | 420664285 | AMPLIFIER BOX | 1 |
| 4 | 210261680 | Hex. Flange Screw M6 X 16 | 4 |
| 1 | 420265358 | IGNITION COIL ASS'Y | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 2 | 210252040 | Hex. Forming Screw | 2 |
| 707000402 | Carburator CE, Mikuni BSR33-67 Europe | ||
| 707200190 | Carburator, Mikuni BSR33-49 | ||
| 1 | 413708300 | Glue Tube, Loctite 454, 20 G | 1 |
| 707000406 | Calibrated Cover Ass'y Includes 10 to 14, Europe | ||
| XXXX | Not Available As Spare Part - Calibrated Cover Europe | ||
| 1 | 205041044 | Socket Head Screw M4 X 10 Europe | 1 |
| 1 | 232541414 | Elastic Stop Nut M4 Europe | 1 |
| 1 | 413711400 | Loctite 648, 10 ml Europe | 1 |
| 1 | 293650164 | GEMI CLAMP | 1 |
| 707000226 | THROTTLE CABLE | ||
| 293600041 | CABLE LUBRICANT, 400 G | ||
| 1 | 707000369 | Throttle Handle | 1 |
| 3 | 205052588 | Socket Head Screw M5 X 25 | 3 |
| 1 | 293300075 | O-RING | 1 |
| 707000228 | CHOKE CABLE | ||
| 4 | 707000426 | Anti-Vibration Mount | 4 |
| 1 | 707000364 | Engine Bracket, Black | 1 |
| 1 | 707000396 | Engine Bracket, Black | 1 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201416 | Hex. Flange Elastic Nut M10 | 2 |
| 4 | 207682044 | Hex. Flange Screw M8 X 20 | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 2 | 207602544 | Hex. Flange Screw M10 X 25 | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 707000224 | UPPER ENGINE BRACKET | 1 |
| 1 | 274000839 | Rubber Isolator | 1 |
| 1 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip | 1 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 707000154 | FLEXIBLE ADAPTOR | ||
| 4 | 293650091 | Norma Clamp | 4 |
| 707000436 | AIR INTAKE | ||
| 2 | 391302000 | Flat Washer | 2 |
| 1 | 707000429 | CVT Water Deflector | 1 |
| 1 | 414745900 | Tuflock Phillips Plastic Screw | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 707000437 | AIR OUTLET | ||
| 2 | 293720053 | Grommet | 2 |
| 1 | 207663044 | Hex. Flange Screw M6 X 30 | 1 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 707000309 | Pivot Plate | 1 |
| 1 | 293900050 | Bushing | 1 |
| 2 | 207664044 | Hex. Flange Screw M6 X 40 | 2 |
| 2 | 232561414 | Elastic Stop Nut M6 | 2 |
| 1 | 707000310 | Spring | 1 |
| 1 | 293900029 | Bushing | 1 |
| 707000143 | LH BALL JOINT | ||
| 1 | 232066414 | LH HEX. NUT M6 | 1 |
| 1 | 707000280 | Threaded Rod | 1 |
| 3 | 232081414 | Hex. Nut M8 | 3 |
| 707000279 | PIVOT | ||
| 1 | 293900047 | Bushing | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 2 | 414583300 | O-RING | 2 |
| 1 | 707000281 | Spring | 1 |
| 1 | 707000258 | Lever Arm | 1 |
| 1 | 707000284 | Lever Handle | 1 |
| 1 | 707000278 | RH Ball Joint | 1 |
| 1 | 234081410 | Flat Washer 8 mm | 1 |
