Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

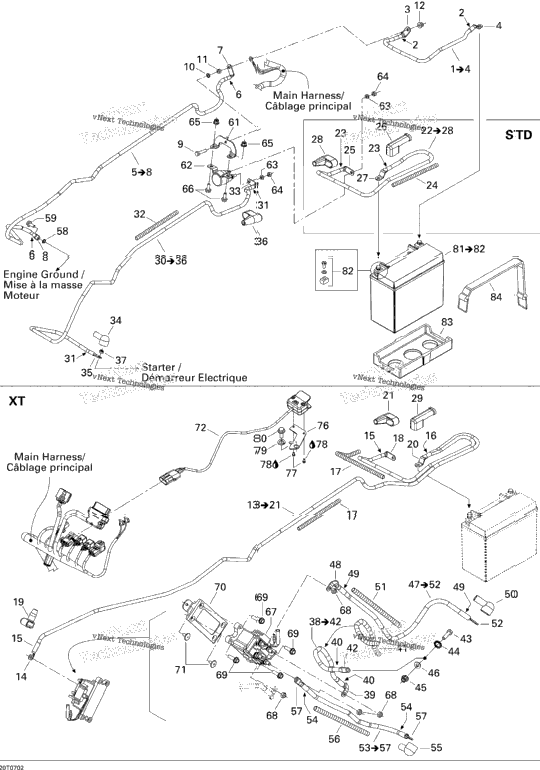

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710000830 | Battery/Frame Ground Cable Ass'y Includes 1 to 4 | 1 |
| 1 | 219704447 | Was 710000483 Heat Shrink Tubing | 1 |
| 710000508 | Open Barrel | ||
| 1 | 710000518 | Open Barrel | 1 |
| 1 | 710000831 | GROUND CABLE ASS'Y Includes 5 to 8 | 1 |
| 710000530 | Open Barrel | ||
| 1 | 207162544 | Hex. Screw M6 X 25 | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 232061414 | Hex. Nut M6 | 1 |
| 1 | 233061414 | Hex. Flange Nut M6 | 1 |
| 1 | 710000832 | Positive Cable XT / Includes 13 to 21 | 1 |
| 710000476 | OPEN BARREL, 6.6 MM XT | ||
| 1 | 219704447 | Was 710000483 Heat Shrink Tubing XT | 1 |
| 275500578 | Shrink Tubing XT | ||
| 710000497 | PROTECTOR TUBE, 9 MM XT | ||
| 710000508 | Open Barrel XT | ||
| 710000522 | PROTECTOR CAP XT | ||
| 1 | 710000519 | Open Barrel XT | 1 |
| 1 | 710000902 | Protector Cap XT | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 710000516 | Protector Cap XT | 1 |
| 1 | 710000833 | POSITIVE CABLE, STARTER RELAY/STARTER Includes 30 to 36 | 1 |
| 710000497 | PROTECTOR TUBE, 9 MM | ||
| 1 | 710000526 | Protector Cap | 1 |
| 1 | 710000902 | Protector Cap | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 710000455 | NEGATIVE CABLE ASS'Y XT / Includes 38 to 42 | ||
| 710000530 | Open Barrel XT | ||
| 1 | 207662044 | Hex. Flange Screw M6 X 20 XT | 1 |
| 1 | 250200041 | Lock Washer Serrated M6 XT | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 XT | 1 |
| 1 | 224061121 | Flat Washer XT | 1 |
| 710000451 | Winch Positive Cable, Blue XT / Includes 47 to 52 | ||
| 710000494 | Protector Cap XT | ||
| 1 | 710000454 | WINCH POSITIVE CABLE, YELLOW XT / Includes 53 to 57 | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 705201325 | Starter Relay Support | 1 |
| 1 | 515176011 | Starter Relay | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 2 | 233061414 | Hex. Flange Nut M6 | 2 |
| 2 | 207661244 | Hex. Flange Screw M6 X 12 | 2 |
| 1 | 710001000 | Winch Solenoid XT | 1 |
| 4 | 232561414 | Elastic Stop Nut M6 XT | 4 |
| 4 | 210262080 | Hex. Forming Screw M6 X 20 XT | 4 |
| 1 | 710000798 | Relay Support, Winch XT | 1 |
| 2 | 390406500 | Pop Rivet 3/16" XT | 2 |
| 710001001 | WINCH INTERRUPTER XT | ||
| 1 | 710000755 | WINCH INTERRUPTER SUPPORT XT | 1 |
| 2 | 250000153 | Hex. Cap Screw 6-32 X 1/4" XT | 2 |
| 1 | 293800060 | Loctite 243, 10 ml XT | 1 |
| 1 | 234101601 | Helicoidal Lock Washer M10 XT | 1 |
| 1 | 250000029 | HEX. SCREW M10 X 16 XT | 1 |
| 1 | 410301203 | Battery YUASA YTX20L Includes 81 to 82 | 1 |
| 1 | 295500849 | Battery Fastener Kit | 1 |
| 1 | 710000279 | INSULATOR PAD | 1 |
| 1 | 293850097 | Retainer Strap | 1 |
