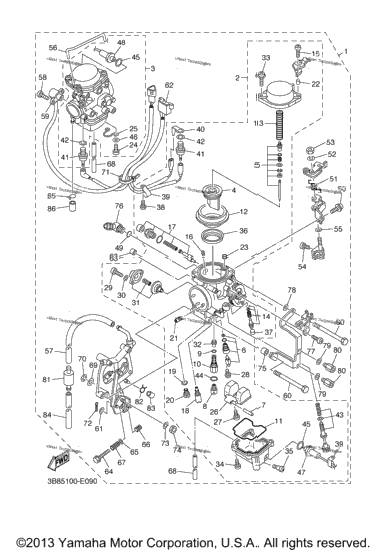

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 5YS-14900-00-00 | Carburetor Assy | ||
| 1 | 5YS-14901-00-00 | . Carburetor Assy 1 (#1) REAR | 1 |
| 1 | 5YS-14902-00-00 | . Carburetor Assy 2 (#2) FRONT | 1 |
| 1 | 5EL-14112-00-00 | . . Valve, Throttle 1 | 1 |
| 1 | 5EL-1490J-00-00 | . . Needle Set | 1 |
| 1 | 5EL-14107-12-00 | . . Needle Valve Set | 1 |
| 1 | 127-14186-00-00 | . . Pin, Float | 1 |
| 1 | 3G2-1423A-73-00 | . . .Jet, Main (#112.5) (#1) REAR | 1 |
| 1 | 3G2-14231-23-00 | . . Jet, Main (#115) (#1) FRONT | 1 |
| 1 | 583-14561-00-00 | . . O-Ring | 1 |
| 1 | 5KS-14261-00-00 | . . Holder | 1 |
| 1 | 5DM-14561-00-00 | . . O-Ring | 1 |
| 1 | 5EL-24411-00-00 | . . Diaphragm | 1 |
| 1 | 4KM-14933-00-00 | . . Spring, Diaphragm | 1 |
| 1 | 4XY-14105-00-00 | . . .Pilot Screw Set | 1 |
| 1 | 98502-05016-00 | . . Screw, Pan Head (#1) REAR | 1 |
| 1 | 1HX-14231-29-00 | . . Jet, Main (#145) | 1 |
| 1 | 5EL-1410A-00-00 | . . Starter Set | 1 |
| 1 | 4KM-14142-17-00 | . . Jet, Pilot (#17.5) | 1 |
| 1 | 5EL-14918-00-00 | . . Ring | 1 |
| 1 | 3G2-1423A-59-00 | . . Jet, Main (#42.5) | 1 |
| 1 | 1HX-1423E-25-00 | . . Jet, Main (#63.8) | 1 |
| 1 | 4KM-14194-00-00 | . . .Ring | 1 |
| 1 | 354-14147-00-00 | . . .O-Ring | 1 |
| 1 | 98507-04012-00 | . . Screw, Pan Head (#2) FRONT | 1 |
| 1 | 33M-14139-00-00 | . . Clip, Pipe (#2) FRONT | 1 |
| 1 | 5DM-14985-00-00 | . . Float | 1 |
| 1 | 98507-04008-00 | . . .Screw, Pan Head | 1 |
| 1 | 1FN-14565-00-00 | . . Screw | 1 |
| 2 | 98507-04014-00 | . . Screw, Pan Head | 2 |
| 2 | 92907-04100-00 | . . .Washer, Spring | 2 |
| 1 | 5EL-1490H-00-00 | . . .Diaphragm Set 5 | 1 |
| 1 | 5DM-14141-40-00 | . . .Nozzle, Main | 1 |
| 1 | 4KM-14216-00-00 | . . Screw (#1) REAR | 1 |
| 2 | 4KM-14216-00-00 | . . Screw (#2) FRONT | 2 |
| 3 | 98507-04010-00 | . . Screw, Pan Head (#2) FRONT | 3 |
| 4 | 98507-04010-00 | . . Screw, Pan Head (#1) REAR | 4 |
| 1 | 12R-14191-00-00 | . . Plug, Drain | 1 |
| 1 | 5EL-14561-00-00 | . . O-Ring | 1 |
| 1 | 3F9-14118-00-00 | . . .Cap | 1 |
| 98507-04006-00 | . . .Screw, Pan Head (#1) REAR | ||
| 90461-06087-00 | . . Clamp (#1) REAR | ||
| 1 | 4DH-82103-00-00 | . . ..Terminal 1 (#1)REAR | 1 |
| 1 | 5FU-83790-20-00 | . . Heater Assy (30W) | 1 |
| 1 | 90201-08016-00 | . . Washer, Plate | 1 |
| 1 | 5EL-14103-00-00 | . . Throttle Screw Set (#1) REAR | 1 |
| 1 | 22U-14561-00-00 | . . O-Ring | 1 |
| 1 | 256-14956-01-00 | . . Washer | 1 |
| 1 | 92902-04600-00 | . . Washer, Plate (#2) FRONT | 1 |
| 1 | 5KS-1410H-00-00 | . . Fuel Cut Solenoid Valve (#1) REAR | 1 |
| 1 | 5KS-1410H-10-00 | . . Fuel Cut Solenoid Valve (#2) FRONT | 1 |
| 2 | 3LN-1416A-00-00 | . O-Ring | 2 |
| 2 | 4SV-24453-00-00 | . Screw | 2 |
| 2 | 5EL-14935-00-00 | . Spring | 2 |
| 2 | 92902-05100-00 | . Washer, Spring | 2 |
| 2 | 95302-05700-00 | . Nut | 2 |
| 2 | 11H-14991-00-00 | . Screw | 2 |
| 31H-14194-00-00 | . Ring | ||
| 5EL-14577-00-00 | . Rod | ||
| 1 | 5EL-14987-10-00 | . Hose | 1 |
| 2 | 4WM-14565-00-00 | . Screw | 2 |
| 1 | 5EL-85885-00-00 | . Throttle Sensor Assy | 1 |
| 5EL-14592-00-00 | . Screw | ||
| 4NK-14285-00-00 | . Washer | ||
| 1 | 5KS-81517-00-00 | . Wire, Sub Lead | 1 |
| 5EL-14196-00-00 | . Pipe | ||
| 5EL-14991-00-00 | . Screw | ||
| 1 | 22F-14117-00-00 | . Washer, Plug Screw | 1 |
| 1 | 5EL-14212-00-00 | . Spring, Pilot Adjusting | 1 |
| 3F7-14133-00-00 | . Spring, Throttle Stop | ||
| 2 | 5EL-14197-10-00 | . Pipe | 2 |
| 1 | 1A8-14953-00-00 | . .Washer | 1 |
| 1 | 812-14137-00-00 | . .Clip | 1 |
| 5 | 35H-14139-00-00 | . Clip, Pipe | 5 |
| 4 | 91492-10008-00 | . Pin, Cotter | 4 |
| 1 | 92906-06100-00 | . Washer, Spring | 1 |
| 95382-06700-00 | . Nut | ||
| 5EL-14149-00-00 | . Pipe | ||
| 5EL-14251-00-00 | . Nipple | ||
| 1 | 98507-04010-00 | . Screw, Pan Head | 1 |
| 1 | 92902-06600-00 | . Washer, Plate | 1 |
| 1FK-14179-00-00 | . Washer, Starter Lever | ||
| 5EL-14592-10-00 | . Screw | ||
| 1 | 4X7-2149Y-00-00 | . Filter Assy | 1 |
| 1 | 8A7-14139-00-00 | . Clip, Pipe | 1 |
| 1 | 895-14169-00-00 | . Cap | 1 |
| 1 | 5EL-14987-20-00 | . Hose | 1 |
| 1 | 55X-14937-00-00 | . .Clip | 1 |
| 1 | 5GK-1491A-00-00 | . .Cap | 1 |
