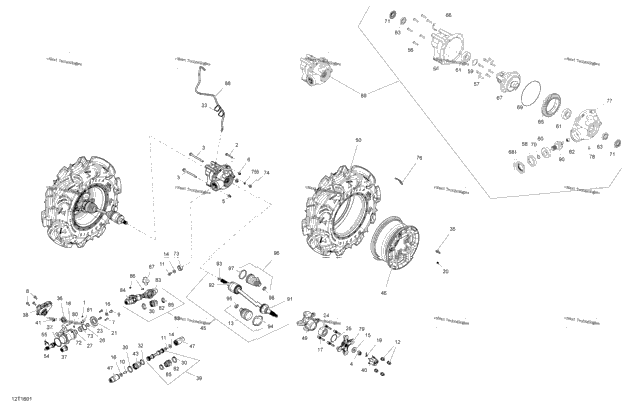

Каталог / ATV / Can-Am / 2016 / Outlander L - 570 EFI - XMR Package / Front Drive System - All Models

Список запчастей

№	Артикул	Название	Кол-во
1	233281414	Hex. Flange Elastic Nut M8	1
3	250000136	Socket Head Screw M8 X 20, Scotch Grip Engine 450	3
3	250000137	Hex. Flange Screw M8 X 20, Scotch Grip Engine 450	3
1	250000359	Hex Flange Screw M12 x 16 Engine 450	1
1	250000540	Hex Flange Screw M12 X 20 Engine 570	1
2	250000847	Hex. Flange Screw M10 X 20	2
8	250100042	Steel Wheel Nut Package STD	8
8	250100082	Chrome Wheel Nut M10 X 1.25 Package DPS Except Camo	8
8	250100100	Black Wheel Nut M10 X 1.25 Package PRO - DPS (Camo) - XMR, LE, Hunter	8
2	705401345	Boot Kit, Wheel Side Package XMR	2
2	715900298	CV Boot Kit, Wheel Side Except Package XMR	2
2	250200014	Flat Washer M10	2
2	250200049	Spring Washer	2
1	250200102	Flat Washer M12	1
1	206580890	Pressure Screw M8 X 8 Engine 450	1
1	207685544	Hex. Flange Screw M8 X 55	1
2	230602546	Hex. Flange Screw M10 X 125	2
2	250100047	Hex. Castellated Nut M18	2
2	233201436	Hex. Flange Elastic Nut M10	2
8	250300048	Wheel Stud Tightening Torque: See Bulletin ATV 2020-4	8
1	250400025	Dowell Pin Engine 450	1
2	250400071	Cotter Pin	2
2	293000110	Valve Cap	2
1	293250348	Oil Seal Engine 450	1
1	293300091	O-Ring Engine 450	1
1	293300179	O-Ring Engine 450	1
2	293350040	Cone Bearing	2
2	293370019	Circlip	2
1	293370029	Circlip Engine 450	1
1	293370030	Circlip Engine 450	1
1	293650138	Oetiker Gear Clamp 44.0MM Engine 450	1
3	293650138	Oetiker Gear Clamp 44.0MM Engine 570	3
1	293650199	Oetiker Gear Clamp	1
2	414115200	Tie-Rap 180 mm	2
1	705400193	Rim Valve With Cap	1
1	705400249	Ball Bearing Engine 450	1
1	705400389	Coupling Sleeve Engine 450	1
1	705400581	Actuator Ass'y Engine 450	1
1	705400913	Propeller Shaft Engine 570	1
2	705400928	Wheel Cap	2
1	705400956	Slider Engine 450	1
1	705401093	Rubber Boot Engine 570	1
1	705401115	LH Front - Premium CV Axle Package XMR	1
1	705401116	RH Front - Premium CV Axle Package XMR	1
1	705401428	RH Front - Premium CV Axle Except Package XMR	1
1	705401429	LH Front - Premium CV Axle Except Package XMR	1
2	705401199	Black,12" X 6 Rim Package STD	2
2	705401402	Silver Rim Package DPS Except Camo Model	2
2	705401522	Deep Black, Rim R12 X 6 Package DPS Camo Model	2
2	705401127	Deep Black, 12 Inch Rim X 6 Package PRO, LE, Hunter	2
2	705401420	Black, Rim Package XMR	2
2	703500678	Front Bushing Shaft Kit Engine 570	2
1	705401290	LH Knuckle	1
1	705401291	RH Knuckle	1
2	705401625	Front Tire Package STD - DPS Model	2
2	705401626	Front Tire Package STD - DPS _Europe Model	2
2	705401736	Tire Package PRO International -Hunter, LE	2
2	705401737	TIRE_205/90R12 F Package PRO Europe	2
	705401391	TIRE_28X8R12 F Package XMR
1	705401492	Front Drive Axle Ass'y Engine 450	1
1	705401509	Idler Shaft Gear Engine 450	1
1	705401553	Shifter Lever Plate Engine 450	1
6	705401601	Screw	6
8	705401602	Screw	8
1	705401603	Nut	1
1	705401604	Shim	1
1	705401605	Ball Bearing	1
2	705401606	Ball Bearing	2
1	705401607	Needle Bearing	1
2	705401608	Ball Bearing	2
1	705401610	Front Cover	1
1	705401612	Gear 36 Teeth	1
1	705401613	Vent Valve	1
1	705401506	Differential Except Package STD	1
1	705401614	Differential Package STD	1
1	705401769	Shim	1
1	705401770	Shim	1
1	705401615	Oil Seal	1
1	705401616	Seal	1
1	705401617	O'Ring	1
2	705401618	Gasket	2
1	705401632	Housing Engine 450	1
1	705400036	Wear Ring	1
	XXXX	Not Available As Spare Part - Wear Ring
1	705500504	Fill Level Plug	1
1	705500506	Copper Washer	1
1	219704465	1/2 Oz Weight	1
1	705401792	Front Pinion Cover	1
1	705501885	Drain Plug	1
2	705501900	Wheel Hub	2
1	705600310	Copper Washer Engine 450	1
1	710000324	SWITCH Engine 450	1
1	715900118	Rubber Boot	1
1	715900116	Fixed Yoke Joint Engine 450	1
1	715900293	YOKE JOINT Engine 450	1
1	509000045	Oetiker Gear Clamp 36.1MM	1
1	715900295	Grease Fitting Engine 450	1
2	703500845	Universal Joint Kit Engine 450	2
1	219704410	Polyurethane Hose 10000Mm Long	1
1	703500899	Front Differential Ass'y Package STD	1
1	703500900	Front Differential Ass'y Except Package STD	1
1	705401791	Pinion 10 Teeth	1
2	705401344	CV Joint Package XMR	2
2	715900297	CV Joint Except Package XMR	2
1	705401348	RH Plunging Joint Package XMR	1
1	705401350	LH Plunging Joint Package XMR	1
1	715900300	RH Plunging CV Joint Except Package XMR	1
1	715900301	LH Plunging CV Joint Except Package XMR	1
1	705401349	Circlip Joint	1
2	715900262	Oetiker Clamp, Large Except Package XMR	2
2	715900282	Oetiker Clamp Package XMR	2
2	715900283	Oetiker Clamp, Small Package XMR	2
2	715900317	Oetiker Clamp, Small Except Package XMR	2
2	705401346	Boot Kit, Differential Side Package XMR	2
2	715900299	CV Boot Kit, Differential Side Except Package XMR	2
2	715900284	Oetiker Clamp, Large Package XMR	2
2	715900318	Oetiker Clamp, Large Except Package XMR	2
2	715900261	Oetiker Clamp, Small Package XMR	2
