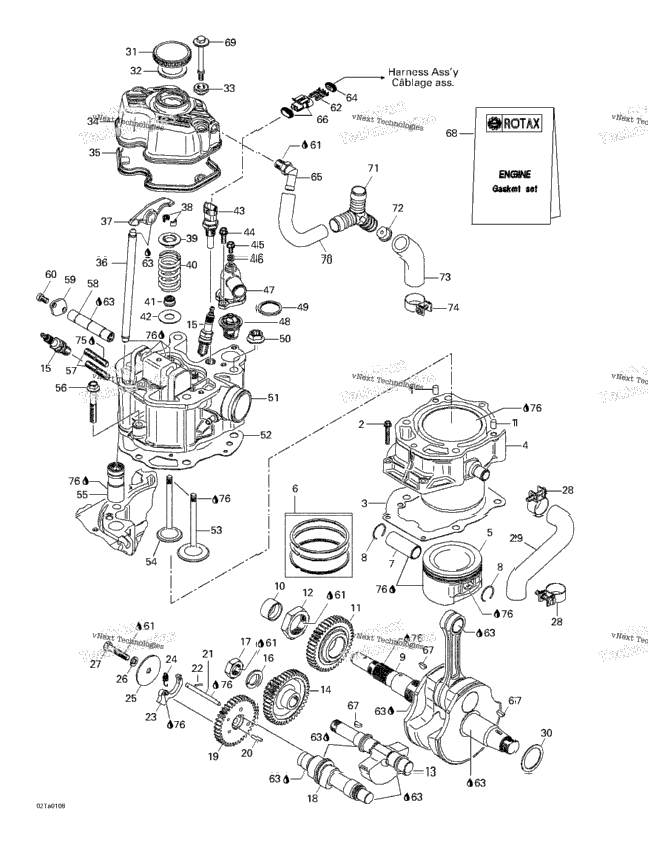

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 290632010 | Pin M8 X 12 | 2 |
| 711941126 | Hex. Flange Screw M6 x 35 | ||
| 711650430 | CYLINDER GASKET | ||
| 711613177 | Cylinder/Piston Includes 4 - 6. | ||
| 711296110 | Piston 89 mm & Ring Set Includes 5 - 6. | ||
| 711296114 | Piston Ring Set | ||
| 1 | 711216225 | Piston Pin | 1 |
| 711245431 | Circlip 22 mm | ||
| 711295893 | Crankshaft Ass'y Includes 9 - 10. | ||
| 711247070 | Spacer | ||
| 711635011 | Mating Gear (42 Teeth) | ||
| 711842605 | Nut M34 | ||
| 711220470 | Balance Shaft | ||
| 711635100 | Balancing Gear Double | ||
| 2 | 707000008 | Spark Plug NGK DR8EA | 2 |
| 290945757 | Lock Washer 18 mm | ||
| 1 | 420942220 | HEX. NUT M18 | 1 |
| 711220462 | Cam Shaft | ||
| 711634956 | Cam Shaft Gear (38 Teeth) | ||
| 1 | 420232420 | Needle Pin | 1 |
| 711220615 | Deko Shaft Ass'y Includes 21 - 22. | ||
| XXXX | Not Available As Spare Part - Groove Pin | ||
| 711231050 | Centrifugal Weight | ||
| 711239570 | Tension Spring | ||
| 711244260 | Washer | ||
| 1 | 420945752 | Lock Washer 8 mm | 1 |
| 1 | 207084044 | Hex. Screw M8 X 40 | 1 |
| 711951760 | Clamp | ||
| 711222285 | Water Cooling Hose | ||
| 711427505 | Adjusting Washer 35 x 45 x 1.3 | ||
| 711427506 | Adjusting Washer 35 x 45 x 1.5 | ||
| 711427507 | Adjusting Washer 35 x 45 x 1.8 | ||
| 711974644 | Bayonet Filler Cap Includes 31 - 32. | ||
| 711650990 | Gasket Ring | ||
| 711260050 | Rubber Bushing | ||
| 711211835 | Valve Cover | ||
| 711650450 | Valve Cover Gasket | ||
| 711854575 | Push Rod | ||
| 711254083 | Rocker Arm | ||
| 711253090 | Valve Cotter | ||
| 711254100 | Valve Spring Retainer | ||
| 711239500 | Valve Spring | ||
| 420230810 | Valve Seal | ||
| 2 | 711227980 | Thrust Washer | 2 |
| 1 | 711222425 | Temperature Sensor | 1 |
| 711241751 | Hex. Flange Screw M6 x 16 | ||
| 1 | 404146600 | Sealing Washer | 1 |
| 711222560 | Thermostat Cover | ||
| 1 | 711222495 | Thermostat Ass'y Includes 48 - 49. | 1 |
| 1 | 711650300 | Thermostat Gasket | 1 |
| 4 | 233101414 | Hex. Flange Nut M10 | 4 |
| 711613375 | Cylinder Head | ||
| 711650446 | Cylinder Head Gasket | ||
| 711254050 | Inlet Valve 42 mm | ||
| 711254062 | Inlet Valve 34 mm | ||
| 2 | 711854090 | Hydraulic Valve Tappet | 2 |
| 420240326 | Hex. Flange Screw M8 X 53.5 | ||
| 711940366 | Stud M8 x 23 | ||
| 711254110 | Rocker Arm Shaft | ||
| 711244250 | Holding Strip | ||
| 711241681 | Socket Head Screw M6 x 10 | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 278000998 | Female Terminal | 2 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 2 | 278000999 | Wire Seal | 2 |
| 1 | 420922245 | Angular Tube | 1 |
| 1 | 278001005 | Male Housing, 2 Circuits | 1 |
| 3 | 711246570 | Woodruff Key | 3 |
| 711296372 | Gasket Set Engine | ||
| 2 | 711240901 | Hex. Screw M6 x 47.9 | 2 |
| 711222610 | Formed Hose | ||
| 711874380 | Y Fitting | ||
| 711222590 | Fitting | ||
| 711222600 | Formed Hose | ||
| 711251222 | Gear Clamp | ||
| 1 | 413711400 | Loctite 648, 10 ml | 1 |
| XXXX | Not Available As Spare Part - Engine Oil |
