Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

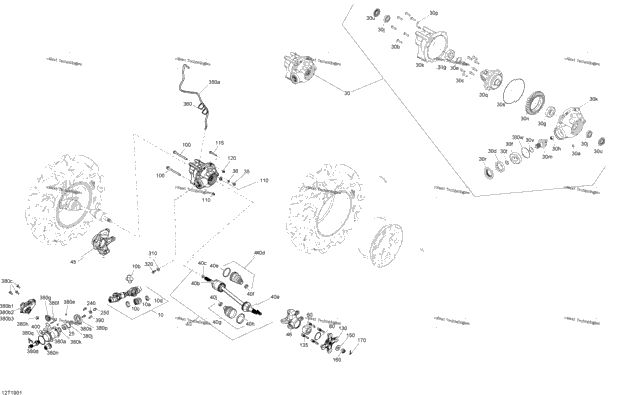

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705402065 | Front Drive Axle Ass'y Includes 10 to 10d | 1 |
| 1 | 715900118 | Rubber Boot | 1 |
| 2 | 715900435 | U-Joint Cross Kit | 2 |
| 1 | 715900497 | Fixed Yoke Joint | 1 |
| 1 | 715900498 | Yoke Joint | 1 |
| 1 | 705402020 | Front Differential Includes 30 to 30y | 1 |
| 1 | 705501885 | Drain Plug | 1 |
| 6 | 705401601 | Screw | 6 |
| 8 | 705401602 | Screw | 8 |
| 1 | 705401603 | Nut | 1 |
| 1 | 705401604 | Shim | 1 |
| 1 | 705401605 | Ball Bearing | 1 |
| 2 | 705401606 | Ball Bearing | 2 |
| 1 | 705401607 | Needle Bearing | 1 |
| 2 | 705401608 | Ball Bearing | 2 |
| 1 | 705401610 | Front Cover | 1 |
| 1 | 705401791 | Pinion 10 Teeth | 1 |
| 1 | 705401612 | Gear 36 Teeth | 1 |
| 1 | 705401613 | Vent Valve | 1 |
| 1 | 705402128 | Differential | 1 |
| 1 | 705401615 | Oil Seal | 1 |
| 1 | 705401616 | Seal | 1 |
| 1 | 705401617 | O'Ring | 1 |
| 2 | 705401618 | Gasket | 2 |
| 1 | 705401769 | Shim | 1 |
| 1 | 705401770 | Shim | 1 |
| 1 | 705401792 | Front Pinion Cover | 1 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 1 | 705402021 | RH Homocinetic Joint Includes 40 to 40j | 1 |
| 1 | 705401344 | CV Joint | 1 |
| 1 | 715900602 | RH Plunging Joint | 1 |
| 1 | 705401349 | Circlip Joint | 1 |
| 1 | 705401345 | Boot Kit, Wheel Side Includes 40d to 40f | 1 |
| 1 | 715900282 | Oetiker Clamp | 1 |
| 1 | 715900283 | Oetiker Clamp, Small | 1 |
| 1 | 705401346 | Boot Kit, Differential Side Includes 40g to 40j | 1 |
| 1 | 715900284 | Oetiker Clamp, Large | 1 |
| 1 | 715900261 | Oetiker Clamp, Small | 1 |
| 1 | 705402022 | LH Homocinetic Joint Includes 50 to 50j | 1 |
| 1 | 715900603 | LH Plunging Joint | 1 |
| 1 | 705401345 | Boot Kit, Wheel Side Includes 50d to 50f | 1 |
| 1 | 705401346 | Boot Kit, Differential Side Includes 50g to 50j | 1 |
| 1 | 705401290 | LH Knuckle | 1 |
| 1 | 705401291 | RH Knuckle | 1 |
| 2 | 705402088 | Sensor Support Not Shown | 2 |
| 4 | 234081410 | Flat Washer 8 mm Not Shown | 4 |
| 4 | 250000874 | Torx Truss M8 X 25 Not Shown | 4 |
| 2 | 293350118 | Cone Bearing | 2 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 207685544 | Hex. Flange Screw M8 X 55 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 2 | 705501716 | Wheel Hub Ass'y | 2 |
| 8 | 250300048 | Wheel Stud Tightening Torque: See Bulletin ATV 2020-4 | 8 |
| 2 | 250200171 | Conical Spring Washer M18 | 2 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 250400071 | Cotter Pin | 2 |
| 1 | 250200102 | Flat Washer M12 | 1 |
| 1 | 250001039 | Hex Flange Screw M12 X 16 | 1 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 1 | 250001046 | Hex Flange Screw M10 X 20 S.Grip | 1 |
| 1 | 219704389 | Polyurethane Hose 4000MM Long | 1 |
| 1 | 705402360 | Machined Housing Includes 380a to 380d | 1 |
| 1 | 705400274 | Fork | 1 |
| 1 | 293370042 | Circlip | 1 |
| 1 | 293300117 | O-Ring | 1 |
| 3 | 250000137 | Hex. Flange Screw M8 X 20, Scotch Grip | 3 |
| 1 | 705401509 | Idler Shaft Gear | 1 |
| 1 | 206580890 | Pressure Screw M8 X 8 | 1 |
| 1 | 250400025 | Dowell Pin | 1 |
| 1 | 705400249 | Ball Bearing | 1 |
| 1 | 705400956 | Slider | 1 |
| 1 | 293370029 | Circlip | 1 |
| 1 | 293370030 | Circlip | 1 |
| 1 | 705400389 | Coupling Sleeve | 1 |
| 1 | 293250348 | Oil Seal | 1 |
| 1 | 705401553 | Shifter Lever Plate | 1 |
| 1 | 293300179 | O-Ring | 1 |
| 3 | 250000136 | Socket Head Screw M8 X 20, Scotch Grip | 3 |
| 1 | 293300091 | O-Ring | 1 |
