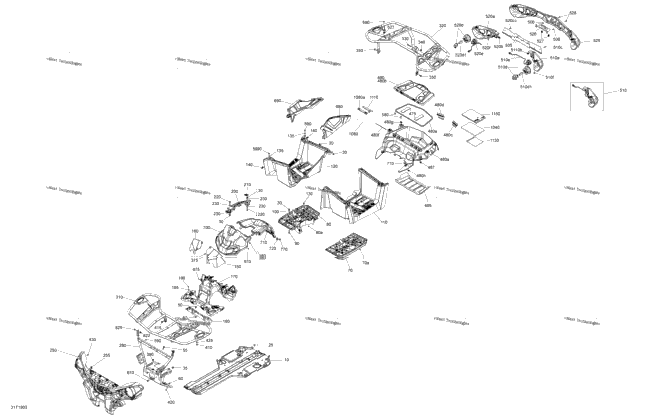

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715002374 | Protective Plate Kit Except Package STD | 1 |
| 2 | 207662054 | Hex. Flange Screw M6 X 20 | 2 |
| 1 | 207762044 | Carriage Bolt M6 X 20 Except Package STD | 1 |
| 12 | 233261434 | Flange Elastic Nut M6 | 12 |
| 2 | 233201434 | Hex. Flange Elastic Nut M10 | 2 |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 | 2 |
| 2 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip | 2 |
| 4 | 233281434 | Hex. Flange Elastic Nut M8 | 4 |
| 1 | 705011540 | LH Structural Footboard Includes 70 to 70a | 1 |
| 4 | 232862412 | Square Nut M6 | 4 |
| 1 | 705011542 | RH Structural Footboard Includes 80 to 80a | 1 |
| 5 | 232862412 | Square Nut M6 | 5 |
| 8 | 207763554 | Carriage Bolt M6 X 35 | 8 |
| 9 | 234062410 | Flat Washer 6 mm | 9 |
| 1 | 705007040 | LH Step | 1 |
| 1 | 705007723 | RH Footrest | 1 |
| 9 | 207661654 | Hex. Flange Screw M6 X 16 | 9 |
| 4 | 224061201 | Flat Washer | 4 |
| 4 | 250000957 | Extruded Panel Nut M6 | 4 |
| 1 | 705006134 | LH Air Deflector Package PRO, PRO Nordic | 1 |
| 1 | 705006135 | RH Air Deflector Package PRO, PRO Nordic | 1 |
| 1 | 715003984 | Dash Support Kit | 1 |
| 1 | 705010406 | Console Support Insert | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 | 2 |
| 1 | 715003975 | Indicator | 1 |
| 1 | 705005003 | Shiftgate Trim | 1 |
| 2 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 2 |
| 1 | 705009335 | Front Facia | 1 |
| 7 | 250000957 | Extruded Panel Nut M6 | 7 |
| 1 | 705009256 | Front Structure | 1 |
| 1 | 705006887 | Black, Front Luggage Rack | 1 |
| 1 | 715002787 | Black, Rear Luggage Rack | 1 |
| 4 | 250000761 | Torx Truss Screw M8 X 50 | 4 |
| 2 | 233281464 | Elastic Flange Nut M8 | 2 |
| 2 | 250001016 | Hex Flange Screw M8 X 25 S.Grip | 2 |
| 4 | 293150104 | Pop Rivet 3/16" Package PRO, PRO Nordic | 4 |
| 4 | 517124300 | Washer Package PRO, PRO Nordic | 4 |
| 2 | 293450307 | Insert Half Hex Body M8 x 1.25 | 2 |
| 2 | 210261250 | Hex. Flange Screw M6 X 12 | 2 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 2 | 250000886 | Torx Screw M8 X 30 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 4 | 250000725 | Screw M4 X 16 | 4 |
| 2 | 293830163 | Rubber Pad | 2 |
| 1 | 715004412 | Storage Cover | 1 |
| 1 | 705007136 | Rear Box | 1 |
| 1 | 705007448 | LH Box Rear Latch | 1 |
| 1 | 705007921 | RH Box Rear Latch Includes 480d to 480e | 1 |
| 1 | 219704452 | Was 715900411 Neoprene Seal | 1 |
| 2 | 705007531 | Retaining Rod | 2 |
| 8 | 250000957 | Extruded Panel Nut M6 | 8 |
| 1 | 414859400 | CAP | 1 |
| 1 | 705007487 | Heat Deflector Sheet | 1 |
| 708002041 | CABLE HOUSING | ||
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 705011495 | LH Rear Light Support Ass'y Includes 510 to 510f | ||
| 1 | 705010329 | REAR LIGHT SUPPORT LH | 1 |
| 2 | 250100113 | Panel Nut, M6 X 1.0 | 2 |
| 1 | 710001645 | Tail Light Ass'y Includes 510d to 510d1 | 1 |
| 1 | 520000758 | Bulb | 1 |
| 1 | 710002964 | Flasher | 1 |
| 1 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip | 1 |
| 1 | 705010330 | REAR LIGHT SUPPORT RH Includes 520a to 520f | 1 |
| 1 | 710001645 | Tail Light Ass'y Includes 520d to 520d1 | 1 |
| 1 | 705011887 | Rear Facia | 1 |
| 1 | 705012280 | Bracket | 1 |
| 4 | 732610072 | Push Nut Package PRO | 4 |
| 2 | 250000807 | Torx Truss Screw M6 X 25 | 2 |
| 19 | 250000722 | Torx Screw M6 X 20 | 19 |
| 2 | 205003044 | Socket Screw M10 x 30 Package PRO | 2 |
| 2 | 236282054 | Hex. Screw M8 X 20 Packages DPS & STD | 2 |
| 2 | 236282054 | Hex. Screw M8 X 20 | 2 |
| 2 | 250000723 | Phillips Screw K40 X 16 | 2 |
| 1 | 705004147 | LH Extension Pannel | 1 |
| 1 | 705003444 | Engine Cover | 1 |
| 1 | 705012554 | Gauge Support Packages DPS & STD | 1 |
| 1 | 705012572 | Gauge Support Packages PRO & Pro Nordic | 1 |
| 1 | 715005837 | Dash Kit | 1 |
| 4 | 705003264 | Grommet | 4 |
| 18 | 293150230 | Tuflok Plastic Rivet | 18 |
| 2 | 250000898 | Pan Torx Screw M8 X 25 | 2 |
| 1 | 219001969 | OPERATOR'S GUIDE EN 2019 | 1 |
| 1 | 704700168 | Tool Kit Includes 1080 to 1080a | 1 |
| 1 | 529000085 | Socket Wrench 14/16MM | 1 |
| 1 | 529000035 | Adjustment Wrench | 1 |
| 1 | 219400038 | Waranty Registration Form | 1 |
| 1 | 219001376 | Manual Winch Kit Package PRO | 1 |
